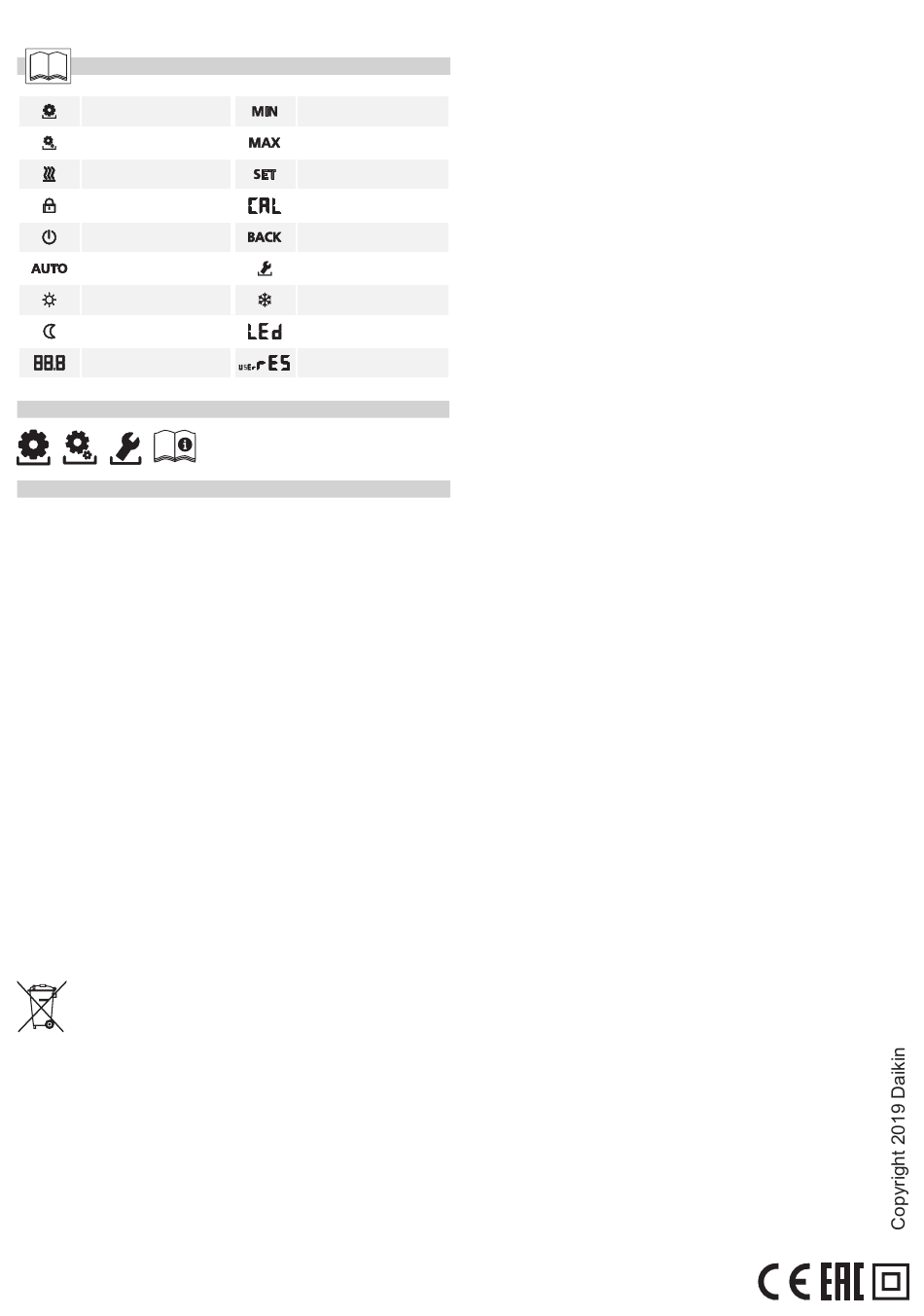

Lifestyle functions
Settings
Heating
Operating lock
Switching off
Automatic operation
Day operation
Night operation
Target/actual temperature
Technical data
Operating voltage:
Fuse 230 V:
Switch. element 230 V:
Switching power:
Rated current w/o valve drives:
Max. current draw allowed with
connect. valve drives 230V:
Temperature setting range:
Connection terminals:
Reduction difference:
Temperature measurement:
Ambient temperature:
Storage temperature range:
Admissible ambient humidity:
Temp. for ball pressure test:
CE conformity according to:
Protection class 230 V:
Protection degree:
Pollution degree:
Rated impulse voltage:
Type action:
Weight:
Dimensions (W x H x D):
Valve protection function:
Antifreeze function:
This symbol means that electrical and electronic products may
NOT be mixed with unsorted household waste. Units must be
treated at a specialized treatment facility for reuse, recycling
and recovery.
By ensuring this product is disposed of correctly, you will help to
prevent potential negative consequences for the environment and
human health.
For more information, contact your installer or local authority.
2
Minimum temperature
Maximum temperature
Confirm settings
Temperature correction
Back
Service
Cooling
Display illumination
Loading factory settings
https://qr.daikin.eu?N=EKWCTRDI1V3
230 V ±10 %, 50 Hz
T1AH
Relay
1 A resistive load
230 V: ≤2 mA
1 A
5 - 30 °C
0.22 mm² to 1.5 mm²
adjustable
0 - 40 °C
0 - 50 °C
-20 to +70 °C
80%, not condensing
Terminals: 100 °C
Plastic enclosure: 75 °C
EN 60730
II
IP 20
2
1500 V
Type 1 / Type 1.C
105 g
86 x 86 x 31 mm
Once every 14 days for 10 minutes
after the last triggering.
From +5 °C in heating mode. Inactive
in cooling mode.
4P560990-1
2019.01
