Multifunction Fuse Programming

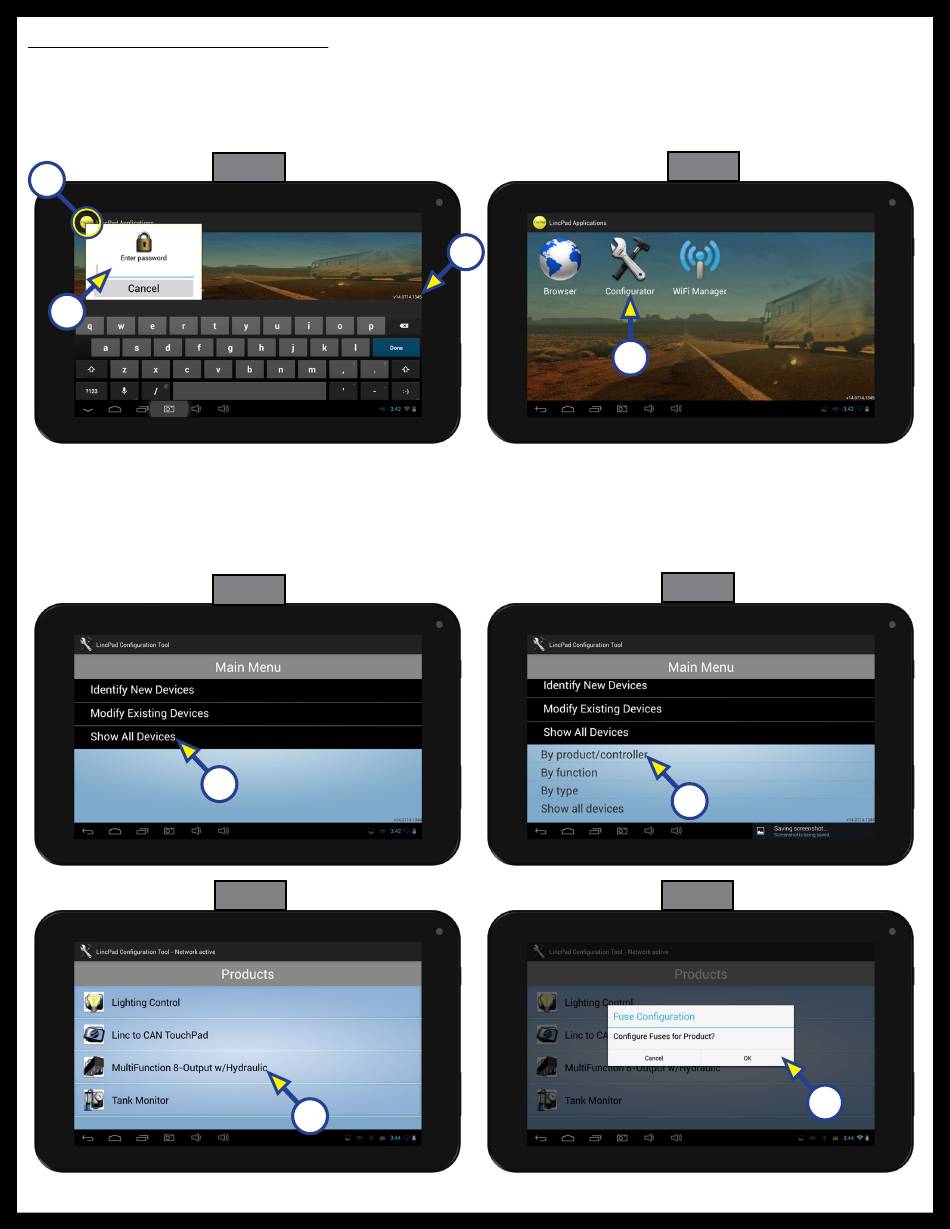

1. Enter the OneControl® configurator screen by tapping the yellow LincPad Applications icon five (5)
times (Fig. 15A). You will then be prompted to enter a four-digit password (Fig. 15B). The password is
the last four digits of the version number (Fig. 15C).
2. Choose the "Configurator" option (Fig. 16A).
A
B
3. Choose the "Show All Devices" option (Fig. 17A).
4.
Choose the "By Product/Controller" option (Fig. 18A). This will display all of the products and
controllers connected to the Linc system.
5. Press and HOLD the "Multifunction 8-Output" option (Fig. 19A). You will then be prompted to
configure the fuses. Choose "OK" (Fig. 20A) to enter fuse configuration.
