Circuit Building For Onecontrol ® Smart Switch - Lippert Components OneControl Programming Manual

5.

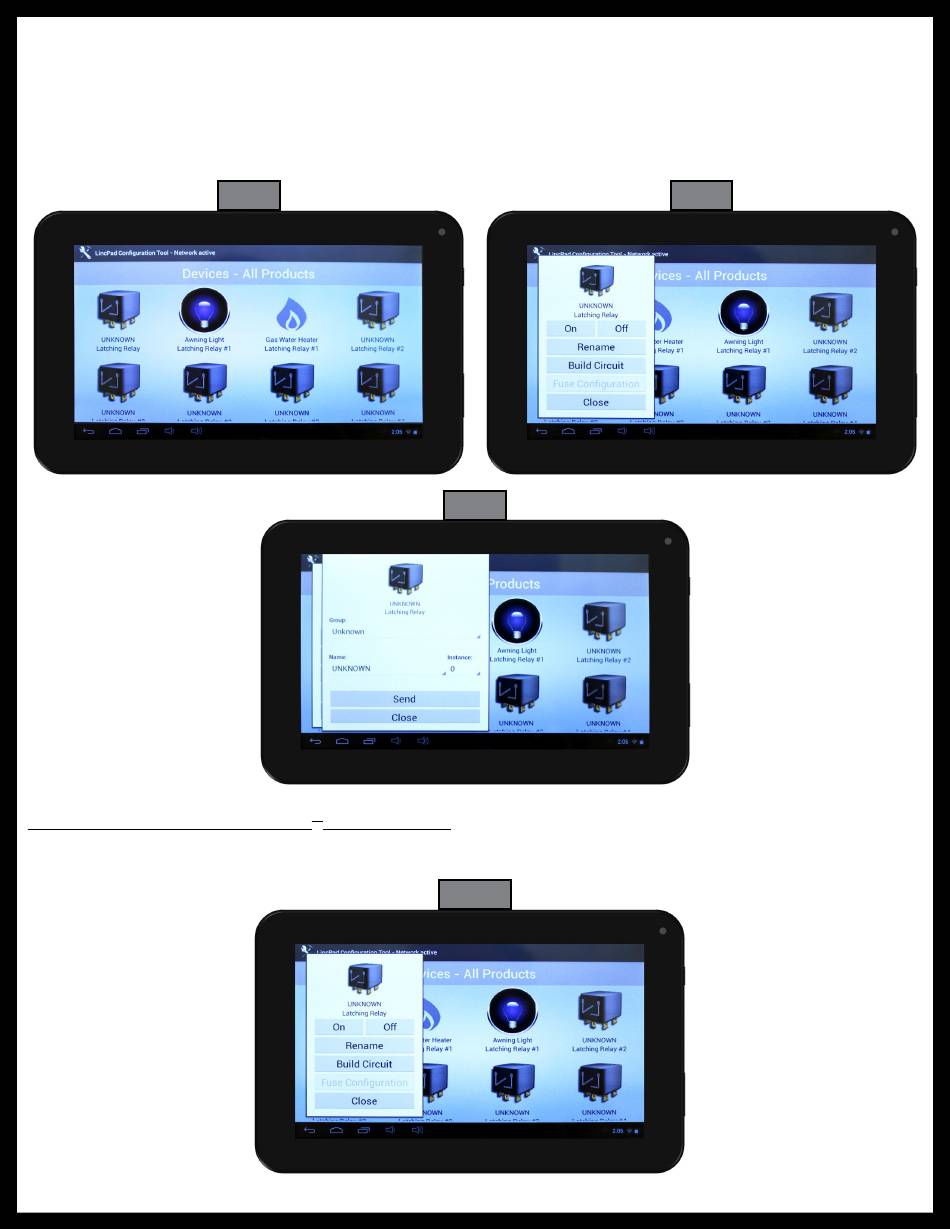

Select the relay (latching or reversing polarity) switch or tank sensor to assign a title (Fig. 7).
6.
When window pops up select "Rename" (Fig. 8).
7. Select "Group".
8.
Select "Name".
9.
Press "Send" to set group and name selected (Fig. 9).
10. Repeat process for each function.
Circuit Building For OneControl
1.
Press "Build Circuit" (Fig. 10).
Rev: 08.06.18
Fig. 7
® Smart Switch
Fig. 9
Fig. 10
Page 5
Fig. 8
CCD-0001736
