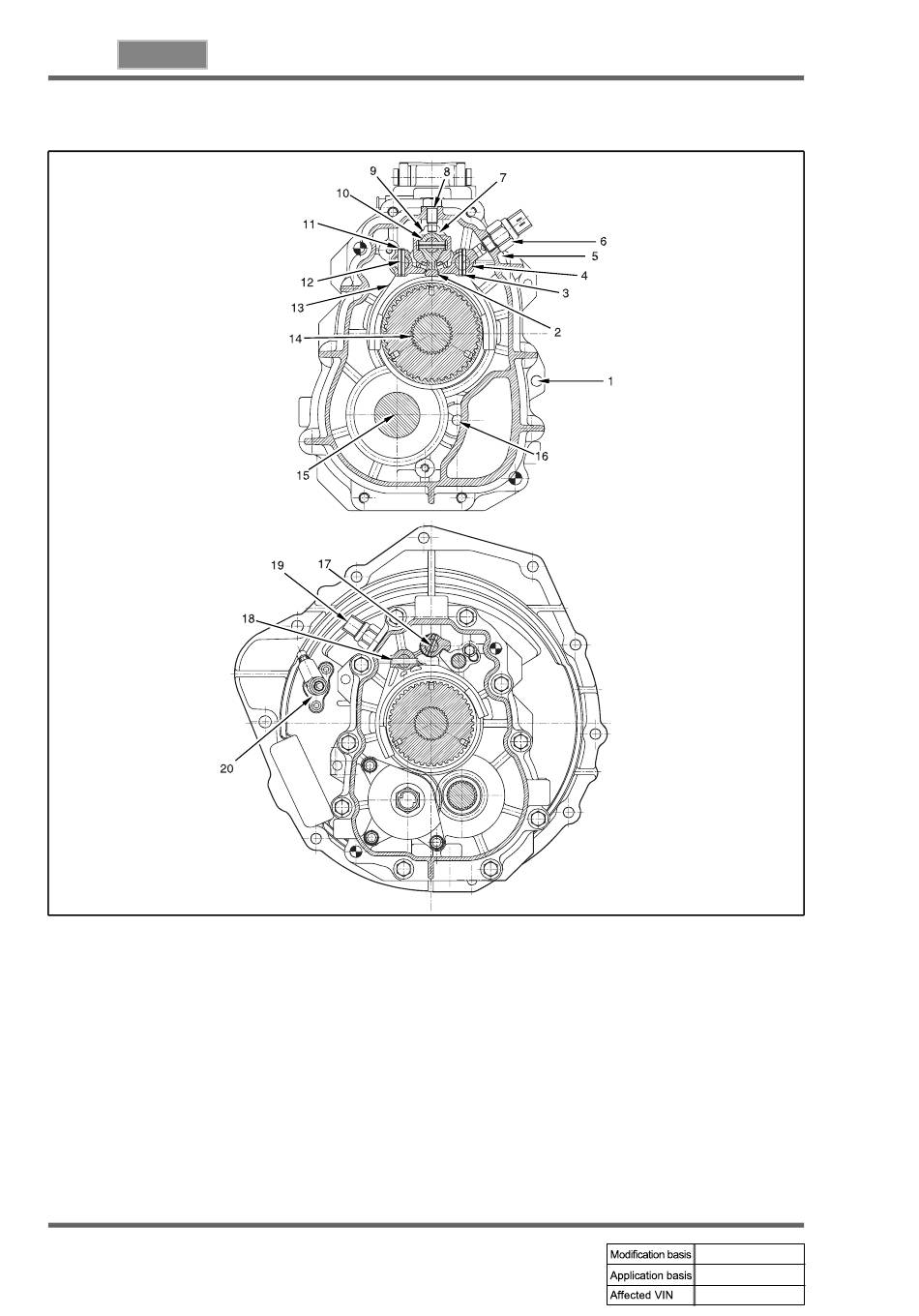

4) Front View and Rear View
Front view
Rear view
1. Oil filler plug
(tightening torque: 40 ~ 50 Nm)
2. Shift rug (3 & 4th)
3. Spring pin (6 x 25)
4. Shift rug (5 & reverse)
5. Shift rail (5 & reverse)
6. Backup lamp switch
(tightening torque: 30 ~ 40 Nm)
7. Shift rail (3 & 4th)
8. Interlock bolt
(tightening torque: 40 ~ 50 Nm)
MANUAL TRANSMISSION
REXTON 2004.04
9. Shift lever
10. Interlock plate
11. Shift rail (1 & 2nd)
12. Shift rug (1& 2nd)
13. Shift fork (3 & 4th)
14. Input shaft
15. Counter shaft
16. Reverse idler assembly
17. Spring pin (6 x 25)
18. Spring pin (6 x 25)
19. Backup lamp switch
20. Concentric slave
cylinder adaptor
(8) Apply Loctite 243
(6) Apply Loctite DRI LOC 200
