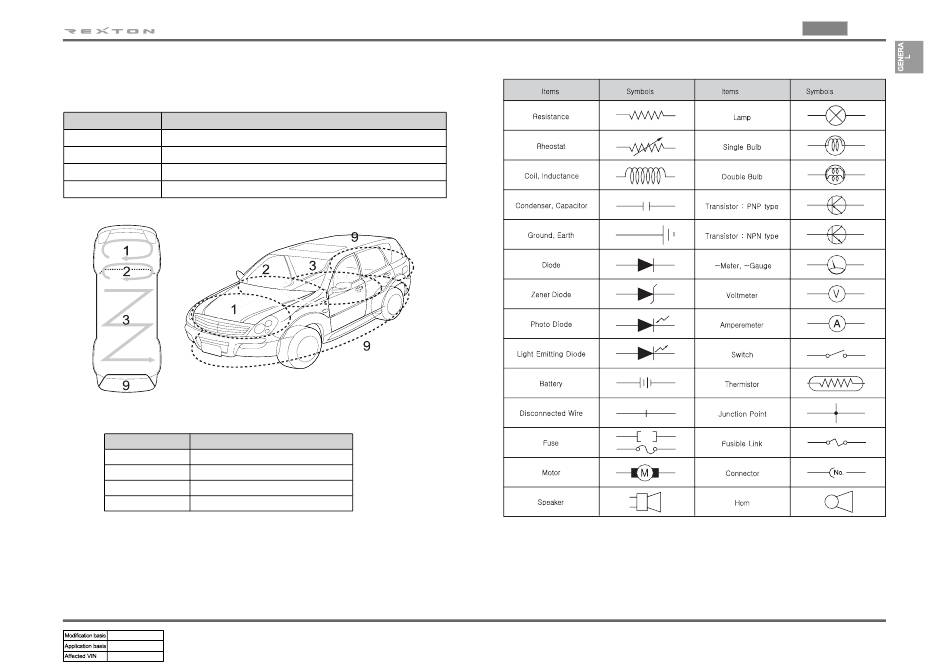

7) PART LOCATION ACCORDING TO PART NUMBER
▶ Ex.) C 1 0 2
- C : Symbol character for connector
Symbol Character
C Connector (Connecting part that connects two wiring harness)
D Diode
G Ground
S Splice pack (Joint connector that connects various wiring harness)
- 1 : Part location number
- Part number according to locating section
Part Numbe
Engine compartment
□ 1□□
□ 2□□ Instrument panel
Passenger compartment, Tailgate
□ 3□□
□ 9□□
- In the locating section, the assignment for part number starts from left bottom and
proceeds clockwise.
- In the fuse and relay box or the instrument panel, the part number is assigned from
left top to light bottom.
- 02 : Part number
Description
Location
Underbody
8) ELECTRIC SYMBOLS
0-5
0000-00
GENERAL INFORMATION
REXTON 2004.04
