Viz-Art Automation MIDI Mount Installation Manual

MIDI Mount
Universal projector mount:
• Direct
• Adjusted 50 - 76
• Adjusted 68 - 112

LIST OF ITEMS:


Projector mount:

Universal projector adapter

Adjusted arm (mount with arm)

Mounting set

Installation manual

Mounting template

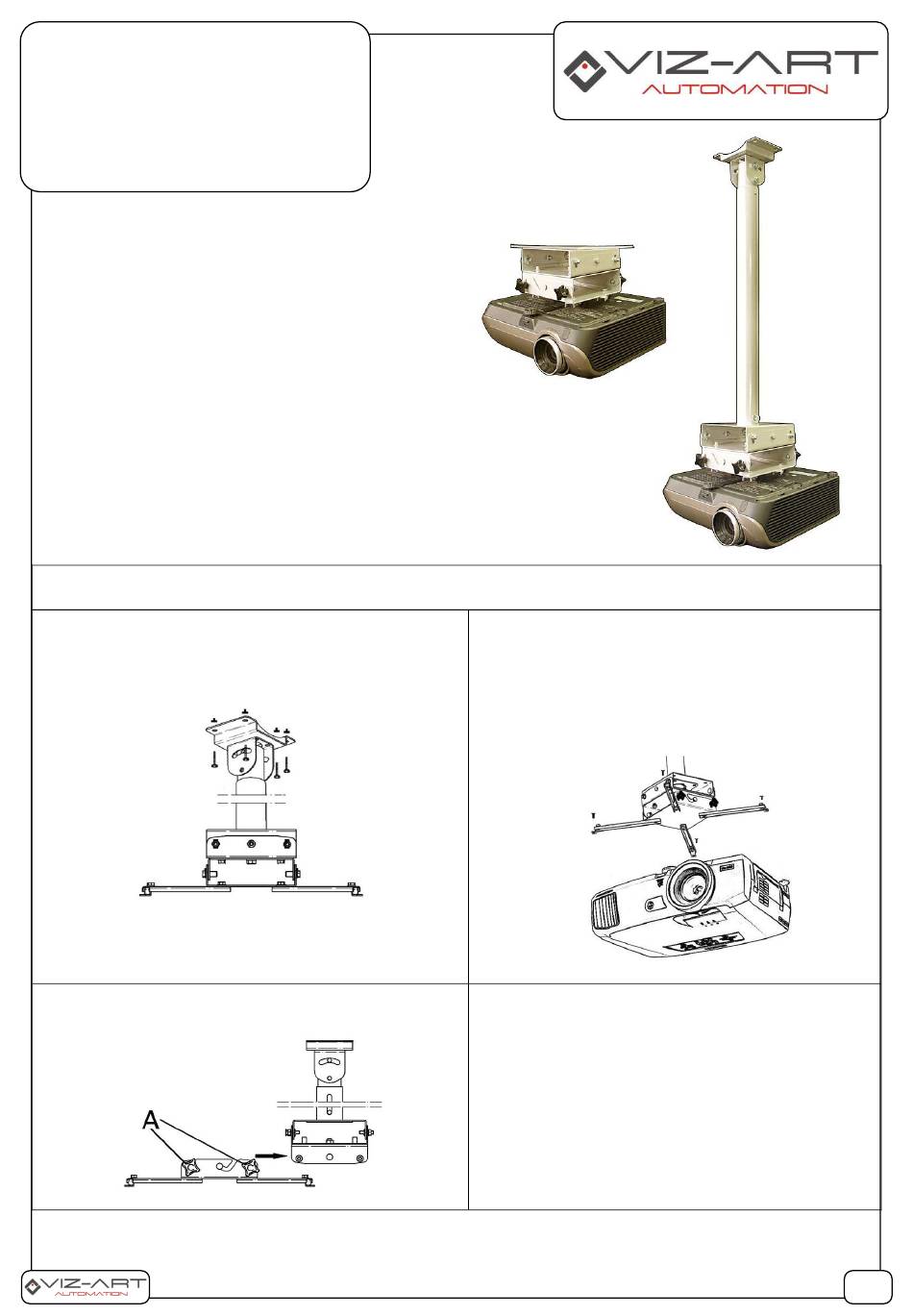

1. Installation:

Prepare an installation place and mark mounting
A.
points using installation template as below:
C. Joint adapter with installed projector with projector mount
as described below using middle hanger. Block projector on
a mount with screws in holes A.
B. Install projector on universal projector
adapter. Use mounting screws from mounting
set.
Warning! To connect the mount with the projector, select
the appropriate screws from the mounting kit according to
the recommendations of the projector manufacturer.
D. Check and adjust proper projected image. If needed
adjust projector image on a ceiling mount.
1/2
