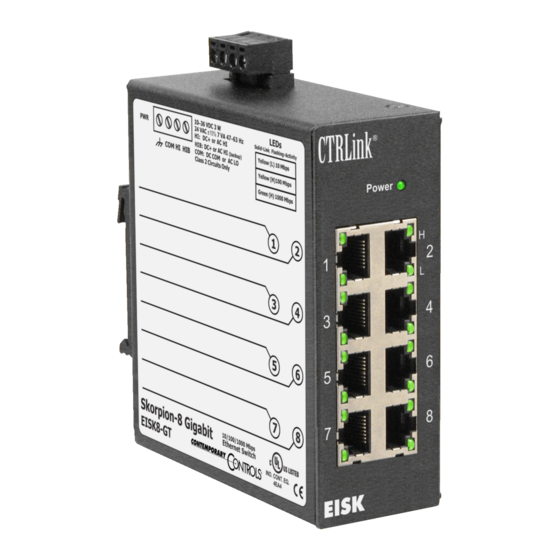

EISK8-GT/H
Skorpion Gigabit Diagnostic Switch for Protocol Debugging
The EISK8-GT/H gigabit switching
communication issues and debugging software. This device has all of the features
of a normal switch except that — like a repeating hub — it passes messages
received by any port to all other ports. This allows the activity of all ports to be
monitored by a "sniffer" attached to any port — an ability that would otherwise
require the "port mirror" function of a more costly managed switch.
The eight ports of the EISK8-GT/H offer features that traditional repeating hubs
do not. Each port supports Auto-MDIX — so either straight-through or crossover
cabling can be used. The collision domain is terminated at each port so there is
no cabling length limit — except that each segment cannot exceed the 100 m
specification for Ethernet.
messages. Each port automatically negotiates its data rate to 10 Mbps, 100
Mbps or 1000Mbps.
The EISK8-GT/H has eight Auto-MDIX ports for attaching local devices.
addition to a power LED, each port has LEDs showing link/activity/rate.
The EISK8-GT/H is powered from a low-voltage source and is provided with a
writeable label for easy identification of the remote device attached to each
cable.
Installation Guide
hub is designed as an aid in diagnosing Ethernet
Store-and-forward operation mitigates against lost
In
®
INDUSTRIAL
CONTROL
EQUIPMENT
4EA4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTRLink EISK8-GT/H and is the answer not in the manual?

Questions and answers

Summary of Contents for Contemporary Controls CTRLink EISK8-GT/H

  • Page 1 EISK8-GT/H Skorpion Gigabit Diagnostic Switch for Protocol Debugging Installation Guide hub is designed as an aid in diagnosing Ethernet The EISK8-GT/H gigabit switching communication issues and debugging software. This device has all of the features of a normal switch except that — like a repeating hub — it passes messages received by any port to all other ports.
  • Page 2 Specifications Functional Electrical Compliance: ANSI/IEEE 802.3 INPUT Data Rates: 10, 100 and 1000 Mbps Voltage: 10–36 V 24 V ±10% Signalling: 10BASE-T, 100BASE-TX Power: 7 VA and 1000BASE-T Frequency: 47–63 Hz Connectors: Shielded RJ-45 Class 2 Circuits Only Segment length: 100 m (maximum) LED Indicators Environmental...
  • Page 3 Power Options Power Considerations Voltage in the specified range must deliver current commensurate with power consumption. The recommended size for solid power conductors is 16–22 AWG; for stranded conductors, use 16–18 AWG. Ground is directly connected to zero volts and the chassis is isolated from zero volts.
  • Page 4 Technical Support. Warranty Contemporary Controls (CC) warrants this product to the original purchaser for five years from the shipping date. If it fails to operate in compliance with its specification during this period, CC will, at its option, repair or replace the product at no charge. The customer is responsible for shipping the product;...
