Summary of Contents for Agri-Fab 45-0270

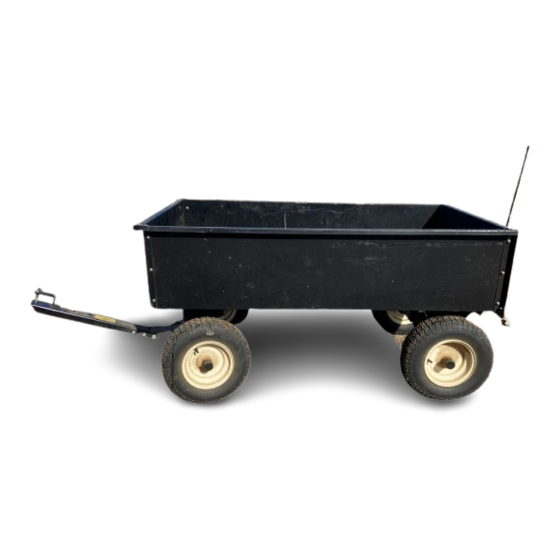

- Page 1 ¨ Agri-Fab OWNERS MANUAL Model No. 45-0270 4-WHEEL CART CAUTION: Read Rules for Safe Operation and Instructions Assembly Carefully Operation Maintenance Repair Parts the fastest way to purchase parts www.speedepart.com PRINTED IN USA FORM NO. 48458 (REV. 7/03)
-
Page 2: Safety Rules
SAFETY RULES Remember, any power equipment can cause injury if operated improperly or if the user does not understand how to operate the equipment. Exercise caution at all times when using power equipment. CAUTION: VEHICLE BRAKING AND LOOK FOR THIS SYMBOL TO POINT OUT STABILITY MAY BE AFFECTED WITH IMPORTANT SAFETY PRECAUTIONS. -
Page 3: Hardware Pack
HARDWARE SHOWN FULL SIZE Not Shown Full Size HARDWARE PACK REF. QTY. DESCRIPTION REF. QTY. DESCRIPTION Lock Washer, 5/16" Hex Bolt, 1/2-13 x 4-1/2" Lg. Lock Washer, 3/8 Hex Bolt, 3/8-16 x 4" Lg. Flat Washer, 1/2" (small) Hex Bolt, 5/16-18 x 2-1/2" Lg. Flat Washer, 1/2"... -
Page 4: Tools Required For Assembly
ASSEMBLY INSTRUCTIONS CAUTION TOOLS REQUIRED FOR ASSEMBLY DO NOT LEAVE THE CART UNATTENDED IN Screwdriver UPRIGHT POSITION DURING ASSEMBLY. A Pliers FALLING CART CAN CAUSE PERSONAL INJURY! 7/16" Wrenches PAY CLOSE ATTENTION TO THE STABILITY OF 1/2" Wrenches THE CART WHILE IT REMAINS IN AN UPRIGHT 9/16"... - Page 5 9. Lower the cart to rest upside down on its top 16. Stand the cart on end, front end facing up. flanges. See figure 3. 17. Assemble the two front axle supports to the cart 10. Assemble the wheel support at the rear of the cart using eight 5/16"...
- Page 6 19. Assemble the R.H. axle spindle to the front axle 22. Assemble the tongue reinforcement angle to the channels using two split plastic bearings, two back side of the front axle supports as shown in small 3/4" flat washers and a cotter pin as shown figure 9.
- Page 7 26. Assemble the tie rod to the axle spindles using two 29. Apply grease to the axle spindles now or use a 1/2" x 1-1/4" hex bolts, four small 1/2" flat washers grease gun after wheels are assembled. and two 1/2" hex lock nuts. Tighten, leaving loose enough that the spindles still pivot.
- Page 8 33. Assemble the two pivot bars to the front tongue 37. Place the tailgate down into the tailgate guides section using four 3/8" x 1" hex bolts, 3/8" lock with the top and bottom lips of the tailgate facing washers and 3/8" hex nuts. Do not tighten yet. to the rear.
-
Page 9: Operation
3. For best handling and traction, distribute the weight of the load evenly in the cart. SPECIFICATIONS FOR 4 WHEEL CART MODEL 45-0270 4. Always test to make sure your tractor has adequate towing and braking capabilities whenever hauling a substantial amount of weight in your cart. - Page 10 REPAIR PARTS FOR 4 WHEEL CART MODEL 45-0270 21 35...
- Page 11 REPAIR PARTS LIST FOR 4 WHEEL CART MODEL 45-0270 REF. PART QTY. DESCRIPTION 24356 Cart Bed 23490 Front Panel 23484 Cap, Front Corner 23548 Tailgate Guide 62457 Tailgate Reinforcement Bracket 23504 Tailgate 24898 Axle, Rear 46971 Wheel 23487 Wheel Support...
- Page 12 NOTES...
- Page 13 NOTES...
- Page 14 NOTES...
-
Page 15: Slope Guide
SLOPE GUIDE (Keep this sheet in a safe place for future reference.) Use this guide to determine if a slope is safe for the operation of your tractor and cart. Refer also to the instructions in your vehicle owners manual. -
Page 16: Repair Parts
REPAIR PARTS Agri-Fab, Inc. 303 West Raymond Sullivan, IL. 61951 217-728-8388 www.agri-fab.com © 2002 Agri-Fab, Inc.
