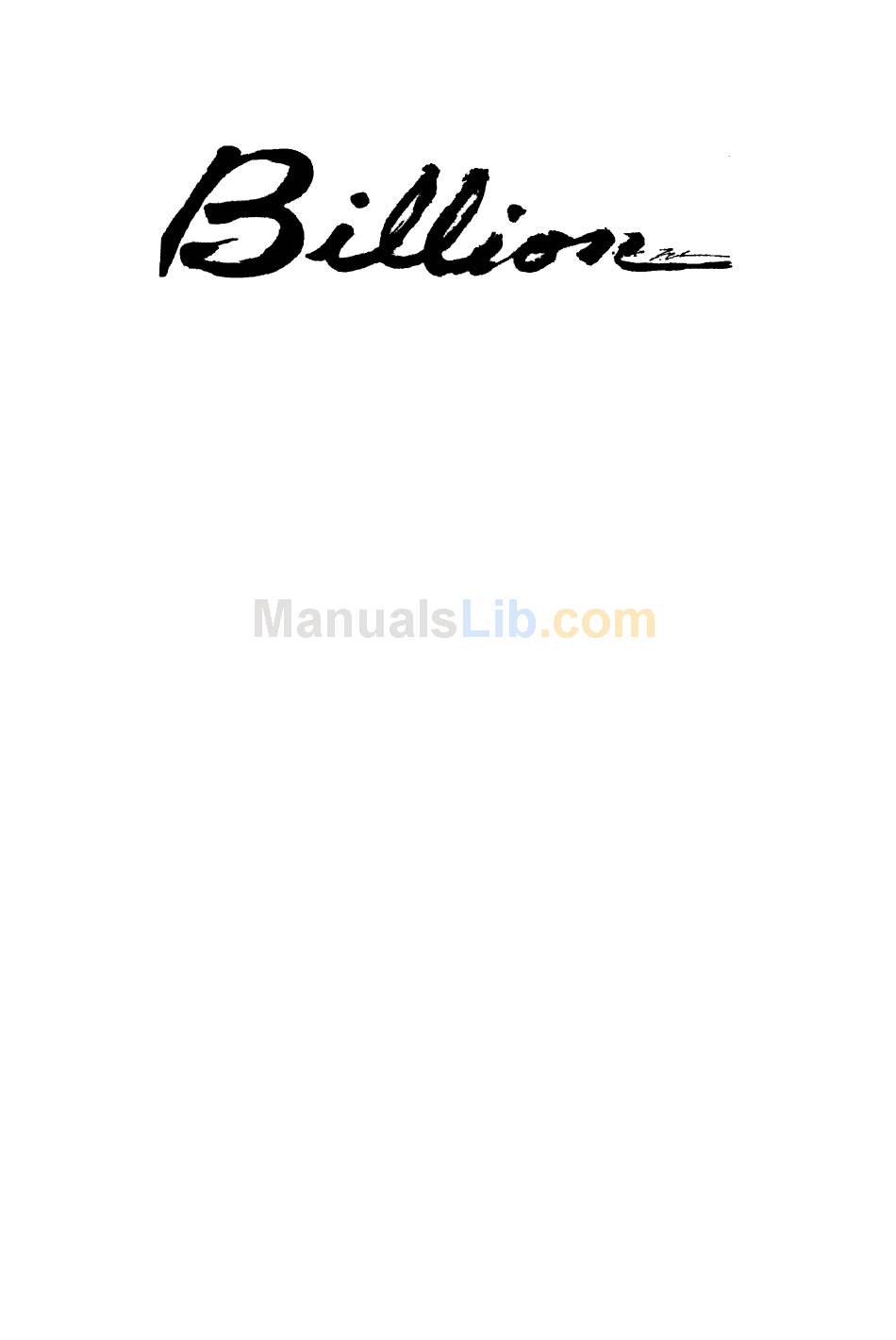

- Page 1 USB ISDN TA128 User’s Manual...
- Page 2 All CE approved ISDN devices may be connected to the Euro- ISDN in all countries of the EU. Billion mini USB ISDN TA128 has been approved by the German TÜV according to the new European procedure and may therefore be connected to the Euro-ISDN in all EU countries.
-
Page 3: Table Of Contents
Table of Contents CHAPTER 1 NTRODUCTION 1.1 An Overview of Billion mini USB ISDN TA128 1.1.1 What is ISDN? 1.1.2 What is USB? 1.1.3 Billion mini USB ISDN TA128 1.2 Package Contents 1.3 Billion mini USB ISDN TA128 Features CHAPTER 2 NSTALLATION 2.1 Before Installing... -
Page 5: Introduction
Chapter 1 Introduction 1.1 An Overview of Billion mini USB ISDN TA128 1.1.1 What is ISDN? ISDN is an abbreviation for Integrated Services Digital Network. ISDN transfers information digitally and integrates all telecommunication services (such as telephone, teletext, videotex, etc.) into a single network. Using ISDN, you can transfer text, voice, data files, images, and even video. -
Page 6: What Is Usb
PC ports (COM and LPT) overnight. 1.1.3 Billion mini USB ISDN TA128 Billion mini USB ISDN TA128 is ideally suited to give your PC access to the world of the Integrated Services Digital Network. It is easy to install, and easy to configure because it is fully plug-and-play compatible. -
Page 7: Package Contents
With Billion mini USB ISDN TA128, you can have an ISDN telephone, answering machine, file transfer, videotex, G3/G4 Fax functions, and Internet access. This will bring you more versatility and efficiency in the ISDN era. 1.2 Package Contents The product package comes with the following accessories: 1. - Page 8 Billion mini USB ISDN TA128 ♦ Supports Multilink PPP (MP) for 128Kbps (two B channels) internet access and data transfer. ♦ Supports X.75, T.70NL, ISO8208, T.90, and HDLC transparent protocols on the B channel for T-Online, AOL, CompuServe, BTX, BBS, Eurofile transfer, and G4 Fax.
-
Page 9: Installation
2.1 Before Installing Make sure that you have all you need to install the mini ISDN TA128. You should have the following: 1. A PC that has USB connector and its USB controller is working properly as shown below. Microsoft Windows 98, Me, 2000 or XP. -
Page 10: The Front Panel Leds
Billion mini USB ISDN TA128 2.2 The Front Panel LEDs When this LED is lit, it indicates that the USB port is connected to the PC and working properly. ISDN When this LED is lit, it indicates that the ISDN S bus is activated. -
Page 11: Chapter 2 Installation
You should not connect the Billion mini USB ISDN TA128 to a bus-powered USB hub device, such as keyboard, because there could be not enough power for the ISDN TA. 3. All the LEDs will be lit and, then, extinguished one by one. -
Page 12: Driver Installation
Billion mini USB ISDN TA128 2.4 Driver Installation For Windows 98: 1. Start Windows. After the opening banner, Windows will tell you that the new device has been detected. You will then see the following screen. Click “Next >”. 2. In the next window, select “Search for the best driver for your... - Page 13 3. Insert the installation CD into the CD-ROM drive and check “CD-ROM drive” in the next window. 4. Continue through the Wizard, clicking the “Next >” buttons. Windows will start copying files to your system. You will see the following screen prompting for the path of the Windows source files.
- Page 14 Billion mini USB ISDN TA128 For Windows Me: 1. Start Windows. After the opening banner, Windows will tell you that the new device has been detected. Select “Specify the location of the driver” and click “Next >”. 2. In next window, select “Search for the best driver for your device”.
- Page 15 3. Continue through the Wizard, clicking “Next >” at the following screens. Windows will start copying files to your system. Then, click “Finish” in the following window. 4. If you are prompted to restart the computer after Windows finishes installing the drivers, press “Yes”. Chapter 2 Installation...
-
Page 16: For Windows 2000
Billion mini USB ISDN TA128 For Windows 2000: 1. Start Windows. After the opening banner, Windows will tell you that the new device has been detected. Click “Next>”. 2. In next window, select “Search for a suitable driver for my... - Page 17 3. Insert the installation CD into the CD-ROM drive, then in the next window check “CD-ROM drives” and click “Next>”. 4. Click “Next>” to install the driver. When the following windows titled “Digital Signature Not Found” appear, press “Yes” to continue the installation. Chapter 2 Installation...
- Page 18 Billion mini USB ISDN TA128 5. Press “Finish” to end the installation.
- Page 19 Chapter 2 Installation For Windows XP: 1. Start Windows. After the opening banner, Windows will tell you that the new device has been detected. Select “Install the software automatically”. Insert the installation CD into the CD-ROM drive and click “Next >”.
- Page 20 Billion mini USB ISDN TA128 2. When next window appears, press “Next >” to continue the installation. 3. Click “Continue Anyway” when the following “Hardware Installation” windows appear.
- Page 21 Chapter 2 Installation 4. Press “Finish” to end the installation.
-
Page 22: Isdn Utility Installation
USB ISDN TA128, such as diagnostic program, uninstallation program, and on-line manual. After Windows installs the driver of your Billion mini USB ISDN TA128, the ISDN Utility may be installed automatically. If the ISDN Utility is not installed, you may install it from the installation CD. - Page 23 3. When the following window prompts, click on the “ISDN Utility” button. 4. The Install Shield Wizard will load the ISDN utility installation program. 5. Press “Next>” to begin installing the ISDN Utility. Follow the instructions on the screen to complete the installation.
-
Page 24: The Diagnostic Program
After you have installed your Billion mini USB ISDN TA12 you are highly recommended to use the diagnostic program to make sure the Billion mini USB ISDN TA128, its drivers and the ISDN line are all properly installed and connected. To run the diagnostic program please follow these instructions: 1. -
Page 25: The Isdn Status Program
2.5.2 The ISDN STATUS Program To know the status of ISDN line and B channels, you can start the ISDN STATUS program as below: 1. Open the “Programs” folder on the “Start” menu and click on the “ISDN Utility” program folder. 2. - Page 26 Billion mini USB ISDN TA128 1. Double click on the “My Computer” icon on your Windows Desktop, and then double click on the “Dial-Up Networking” (DUN) folder. 2. The DUN folder displays an icon labeled “Make New Connection”, plus icons for each of the connections that you have already created.
- Page 27 4. Select the “Multilink” tab and click on the “Use additional devices” radio button. 5. Press “Add…” to specify the device to be bundled together to form the multilink connection. Chapter 2 Installation...
- Page 28 Billion mini USB ISDN TA128 6. Use the “Add…”, “Remove”, and “Edit” buttons to change the list of additional devices. 7. You may enter a different phone number for each device, and the phone numbers will be stored. If you subsequently...
- Page 29 Chapter 2 Installation The status information includes the number of bytes sent and received, the network protocols negotiated for use on the connection and a list box showing each of the additional devices. As you highlight a device in the list box, a “Suspend” or “Resume”...
-
Page 30: Uninstalling Billion Mini Usb Isdn Ta128
2.7 Uninstalling Billion mini USB ISDN TA128 If you decide to permanently remove the driver and utility of the Billion mini USB ISDN TA128 from your system, you must run the uninstallation program from the ISDN Utility program group as follows: 1. -
Page 31: Troubleshooting
A required .DLL The CAPI2032.DLL file, is missing. CAPI2032.DLL, was not found. If your Billion mini USB ISDN TA128 does not work properly, run the Diagnostic Program to help you identify the problem. Possible Cause 1. Make sure the USB cable ISDN TA128 is not ready. - Page 32 Billion mini USB ISDN TA128 Error Indication CAPI driver is The Registration key not loaded. has been destroyed. Please input The subscriber your own number of your own number. ISDN line has not been entered. Cannot activate The ISDN line is not S0 interface connected.
