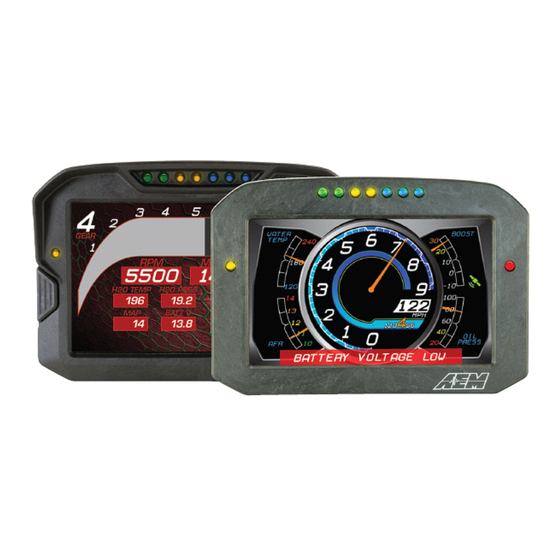

CAN DISPLAY DASH
& LOGGER SYSTEM
USER GUIDE
AEM Performance Electronics
2205 126th Street Unit A, Hawthorne, CA 90250
Phone: (310) 484-2322 Fax: (310) 484-0152
http://www.aemelectronics.com
Instruction Part Number: 10-5500-B
Document Build 1/18/2019

Advertisement

Table of Contents
loading

Related Manuals for AEM Performance Electronics CD-7

Summary of Contents for AEM Performance Electronics CD-7

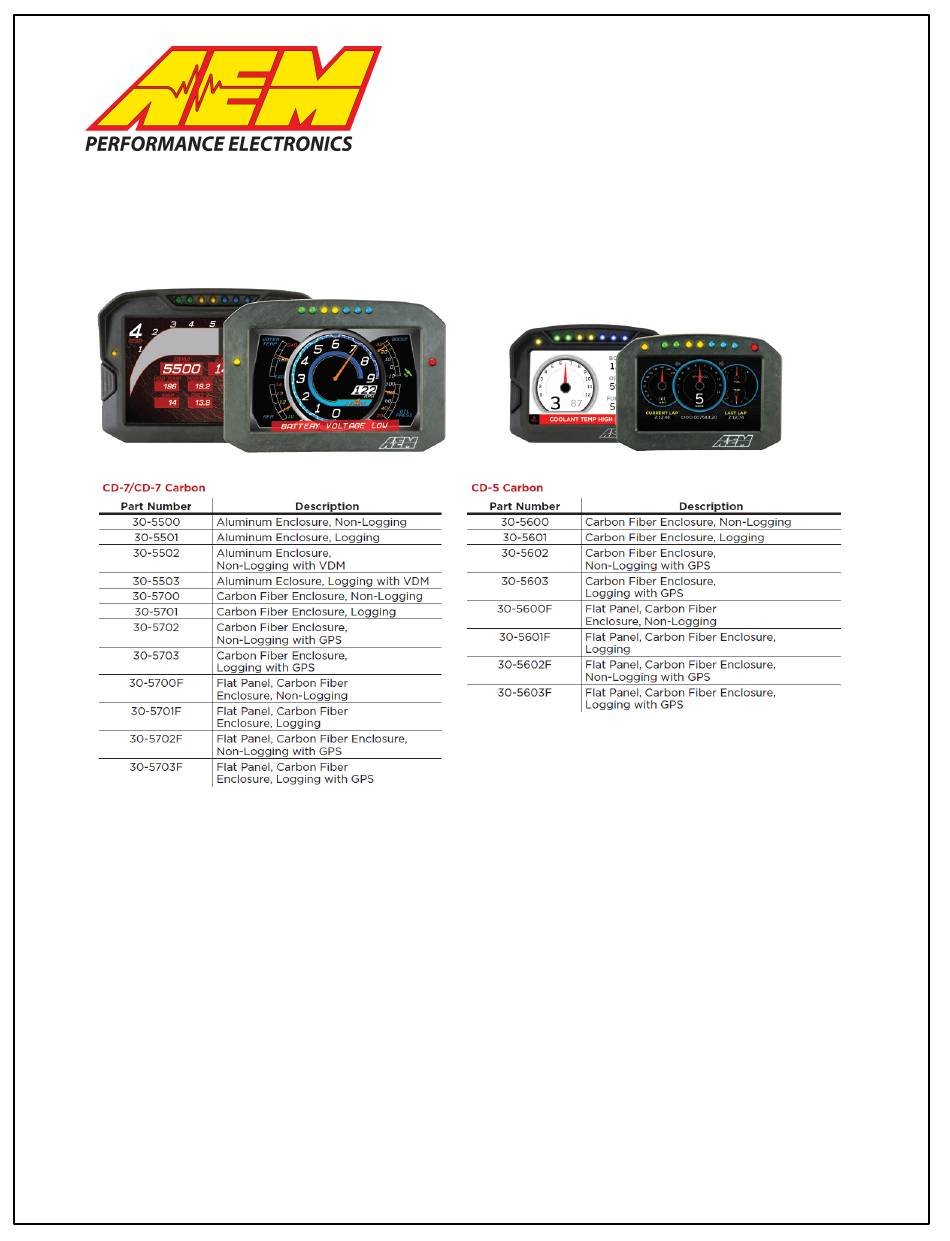

  • Page 1 CAN DISPLAY DASH & LOGGER SYSTEM USER GUIDE AEM Performance Electronics 2205 126th Street Unit A, Hawthorne, CA 90250 Phone: (310) 484-2322 Fax: (310) 484-0152 http://www.aemelectronics.com Instruction Part Number: 10-5500-B Document Build 1/18/2019...
  • Page 2 AEM Dash. Once created, setups are uploaded to the AEM Dash via a USB link. Kit Contents 30-5500 Contents: · 1 x CD-7 · 4 x AV Mount Hardware (attached to dash) ·...
  • Page 3 30-5600 Contents: · 1 x CD-5 · 4 x AV Mount Hardware (attached to dash) · 1 x I/O harness · 1 x power harness · 1 x USB communication cable · documentation 30-5600F Contents: · 1 x CD-5F · 4 x AV Mount Hardware (attached to dash) ·...
  • Page 4 30-5601 Contents: · 1 x CD-5L · 4 x AV Mount Hardware (attached to dash) · 1 x I/O harness · 1 x power harness · 1 x USB communication cable · 1 x USB bulkhead extension cable · documentation 30-5601F Contents: ·...
  • Page 5 30-5602 Contents: · 1 x CD-5G · 4 x AV Mount Hardware (attached to dash) · 1 x I/O harness · 1 x power harness · 1 x USB communication cable · 1 x GPS Antenna · 1 x Velcro ·...
  • Page 6 30-5603 Contents: · 1 x CD-5LG · 4 x AV Mount Hardware (attached to dash) · 1 x I/O harness · 1 x power harness · 1 x USB communication cable · 1 x USB bulkhead extension cable · 1 x GPS Antenna ·...
  • Page 7 30-5700 Contents: · 1 x CD-7 Carbon · 4 x AV Mount Hardware (attached to dash) · 1 x I/O harness · 1 x power harness · 1 x USB communication cable · documentation 30-5700F Contents: · 1 x CD-7F Carbon ·...
  • Page 8 30-5701 Contents: · 1 x CD-7L Carbon · 4 x AV Mount Hardware (attached to dash) · 1 x I/O harness · 1 x power harness · 1 x USB communication cable · 1 x USB bulkhead extension cable · documentation 30-5701F Contents: ·...
  • Page 9 30-5702 Contents: · 1 x CD-7G Carbon · 4 x AV Mount Hardware (attached to dash) · 1 x I/O harness · 1 x power harness · 1 x USB communication cable · 1 x GPS Antenna · 1 x Velcro ·...
  • Page 10 30-5703 Contents: · 1 x CD-7LG Carbon · 4 x AV Mount Hardware (attached to dash) · 1 x I/O harness · 1 x power harness · 1 x USB communication cable · 1 x USB bulkhead extension cable · 1 x GPS Antenna ·...
  • Page 11 · Night mode input · 7 shift lights and 2 alarm LEDs · 200mb onboard logging memory (logging versions only) · Up to 1000hz sample rate (logging versions only) · Onboard 5Hz GPS/GLONASS receiver (GPS versions only) · Log data downloaded and viewed with AEMdata via USB port with sealed bulkhead extension cable (logging versions only) ·...
  • Page 12 Dash Mechanical and Mounting CD-7 Mechanical...
  • Page 13 CD-5 Mechanical...
  • Page 14 CD-7F Mechanical...
  • Page 15 CD-5F Mechanical...
  • Page 16 Drill Template Drill template prints to scale.
  • Page 17 Dash Harness and Basic Wiring...
  • Page 18 Optional OBDII and Power Cable Kits...
  • Page 19 Optional Momentary Button Kit Description AEM kit part number 30-3610 - Panel mount momentary push buttons. Each kit includes 2 buttons, serrated lock washers and nuts. Buttons are sealed with flying leads. Note: a 35/64” drill bit may be used. Features ·...
  • Page 20 Wiring Schematic Installing AEM DashDesign AEM DashDesign is distributed as a single install executable. To install, run AEM DashDesign Setup.exe and follow the on-screen instructions including those requiring you to restart your PC if necessary. Installing USB Drivers The installation program will automatically install the USB drivers required by AEM Dash. However, on rare occasions, it may be necessary to install the USB drivers manually.
  • Page 21 30-03X0 X-Series UEGO 30-4900 Wideband Failsafe 30-4911 Flex Fuel Failsafe 30-2340 4Ch UEGO Series 2 EMS and EMS-4 to Dash The AEMNet CAN output must be enabled in your ECU before the dash can receive messages. Select Wizards | Setup Wizard and choose Telemetry: AEMNet from the Wizard Types column. Left click on the Configuration Name AEMNet Datastream and click the Apply button to enable.
  • Page 22 · Ideal for road racers who want to use the gyrometer data for suspension adjustments · Perfect for drag racers who want G-loads and wheel stand data · GPS vehicle speed, heading and altitude logged for data analysis, lap comparisons ·...
  • Page 23 The VDM is equipped with an AEMnet connector (power, ground, and CAN) so that it is a true plug and play experience when used with other AEMnet products such as the Infinity ECU. Ideally, the VDM module should be installed near the center (both fore/aft and side-to-side) of the vehicle and as low as possible.
  • Page 24 GPS Course [deg] Course over ground, NOT heading GPS Satellite Count "Visible" number of satellites GPS Valid 1 = Valid Fix, 0 = No Fix GPS Year UTC Time GPS Month UTC Time GPS Day UTC Time GPS Hours UTC Time GPS Minutes UTC Time GPS Seconds...
  • Page 25 Installation Mechanical The Sensor Module may be mounted within the vehicle using hook-and-loop fastener (not included) or bolted (#4 screws included) to a suitable structure; a mounting/drill diagram is provided below. The module is weather-resistant (IP67) but is preferably mounted in a cool, dry area such as the driver compartment.
  • Page 26 The display editor is the core tool for editing a setup. To open the tool, go to Setup | Display... You can think of the display editor as a collection of tools for creating items on your screens. A DashDesign setup consists of four logical components: Primary Inputs, Operations, Outputs and Gauges.
  • Page 27 · Select the input from the drop down list. In our example below, we will create a new scaled pressure sensor output that can be used to drive a gauge on the dash. It will use the Analog 3 input from the 30-2206 on Pin 7. Three things are required. 1.) You must create a new Output Name.
  • Page 28 Click the Insert button to add data points. Only two points are required for a linear function. The data is interpolated. More points can be added for non-linear functions. Next go back to the Outputs tab and choose your new function as the Operation for your new Output. Finally, select the Primary Input which in this case will be AnalogVoltsExt_3 Your new My Pressure output can pass pressure sensor data, scaled in units of PSI, from the Analog 3 (Pin 7) input of the 30-2226 CAN Sensor Module to any Gauge item in your Dash setup.
  • Page 29 Create functions for sensors that are being used. The data can be obtained from manufacturers data sheet or from user testing. The function name and data (for example..."My Oil Pressure" or "My Fuel level") will need to be entered manually.
  • Page 30 Create a new output/channel using the new function Assign the new output to an item on the display...
  • Page 31 System Schematic...
  • Page 32 Device Pinout Name Function 12V Battery Power (+) Primary ignition/battery power input Battery Ground (-) Primary ignition/battery ground input AEMnet+ / CANH AEMnet / CAN bus output AEMnet- / CANL AEMnet / CAN bus Output Analog 1 Temperature / thermistor input, 2200 Ohm 5V pull-up Analog 2 Temperature / thermistor input, 2200 Ohm 5V pull-up Analog 3...
  • Page 33 Analog Inputs 3 - 4 These inputs have a 100kOhm 5V pull-up resistor and are suitable to measure voltage signals from 0-5V sensors or devices; either sensors that are being added to a vehicle or pre-existing (or OEM) sensors. Pre-existing/OEM sensors are presumed to be already connected to a factory ECU or logging device which will require different wiring considerations.
  • Page 34 The measured resistance will be output via CAN and will have to be scaled (typically linear) to fuel level (or percentage) in the receiving device. The AEM CD series of dashes have this capability; please refer to the appropriate documentation. Note: The CAN output value, in Ohms, may appear to be slow to respond to input sensor signal changes.
  • Page 35 Connector and Accessory Part Numbers The following is a list of compatible AEMnet accessories as well as part numbers for the main Module connector and terminals. AEM PN Description AEM PN Description 35-2633 CONNECTOR KIT, 12-WY, DTM PLUG 35-2624 DTM-Style 4-Way Plug Connector Kit. Includes Plug, Wedge Lock &...
  • Page 36 Specifications Dimensions width 2.1 / 55 in / mm length 2.1 / 55 in / mm height 1.3 / 34 in / mm mass 1.2 / 32 oz / g Supply Voltage Supply Current (13.8V) nominal Operating Temperature -4 / -20 degF / degC max (16V Supply) 185 / 85...
  • Page 37 AEMnet (CAN Bus) Output WHITE WIRE = AEMnet+ / CANH CAN DBC definition files are available at GREEN WIRE = AEMnet- / CANL www.aemelectronics.com Bus Termination bit rate kb/sec All AEMnet/CAN networks must be terminated to have format bit ID an equivalent of approximately 60 Ohms of resistance.
  • Page 38 · Six (6) digital inputs (frequency, duty cycle or 36-2212 HARNESS, MODULE, 22 CHANNEL CAN SENSOR MODULE simple switch) · 4-0126 WIRE TERM, 22 AWG YELLOW One (1) tachometer/coil input 4-0127 WIRE TERM, 22 AWG RED · Two (2) VR ("magnetic") pair frequency inputs 4-0128 WIRE TERM, 22 AWG BLK (crank, wheel or drive shaft speeds)
  • Page 39 IMAGE NOT TO SCALE...
  • Page 40 Electrical The supplied 36-2212 harness comes with a pre-terminated AEMnet spur suitable for powering the module and providing AEMnet/CAN connectivity. In addition, pre-terminated lengths of various color wire are supplied for connection to sensors. The harness connector is a multi-piece assembly which has a clear plastic retainer that must be removed prior to inserting the crimped leads into the assembly.
  • Page 41 System Schematic...
  • Page 42 Device Pinout Name Function Suggested Interface 1 12V Battery Power Primary ignition/battery power input Fused Ignition Switch 2 AEMnet+ / CANH AEMnet / CAN bus output AEMNet +/High (White) VR1 Positive (+) VR / Magnetic Sensor input (Crank, wheel, or drive shaft speeds) Driven Wheel Speed VR VR1 Negative (-)
  • Page 43 Analog 7 0-5V, Thermistor, RTD input, jumper selectable (470, 2200, Nitrous Pressure Sensor 100k) 5V pull-up Analog 8 0-5V, Thermistor, RTD input, jumper selectable (470, 2200, Brake Pressure 100k) 5V pull-up Analog 9 Temperature / thermistor input, 2200 Ohm 5V pull-up Coolant Temperature Sensor Analog 10 Temperature / thermistor input, 2200 Ohm 5V pull-up...
  • Page 44 Analog Inputs 5 - 8 These inputs have a jumper-selectable 5V pull-up resistor and are suitable for a variety of sensors, either sensors that are being added to a vehicle or pre-existing (or OEM) sensors. Pre-existing/OEM sensors are presumed to be already connected to a factory ECU or logging device which will require different wiring and jumper setting considerations.
  • Page 45 VR (Variable Reluctance) Inputs 1 -2 These inputs are suitable for connection to two-wire VR (variable reluctance) or "magnetic" style speed sensors. Each input is composed of a pair of wires, positive (+) and negative (-), which must be connected to the sensor's respective terminals.
  • Page 46 ü Boost Solenoid* Boost solenoid duty cycle is proportional to boost/MAP ü Transmission Solenoid* Solenoid duty cycle is proportional to line pressure ü Clutch Switch / Trans The output will change to '1' or 'ON' when grounded Brake* ü MAF Sensor Frequency is proportional to airflow ü...
  • Page 47 1 - 2 2 - 3 Description Jumper Sets 120 Ohm CAN TERM termination resistor VR inputs 1 -2 trigger SENSE sensitivity 100k* 2200 Analog input 5 pull-up PULLUP resistor (Ohms) 100k* 2200 Analog input 6 pull-up PULLUP resistor (Ohms) 100k* 2200 Analog input 7 pull-up...
  • Page 48 12110487 36P Female 100W Series (Black) 35-2624 DTM-Style 4-Way Plug Connector Kit. Includes Plug, Wedge Lock & 5 Female Pins 12110490 Strain Relief Lock (Grey) 35-2625 DTM-Style 4-Way Receptacle Connector Kit. 12110488-B 36P Retainer Lock (Clear) Includes Receptacle, Wedge Lock & 5 Male Pins 12110489-B 36P Seal (Green) 35-2626...
  • Page 49 Compatible AEM Sensors The following is a list of compatible AEM sensors as well as the type of input class and pull-up value it should be connected AEM PN Description Input Type Pull-Up Value (Ohms) 30-2010 Air Temp Sensor Kit. 3/8"NPT Analog 2200 30-2011...
  • Page 50 Specifications width 4.7 / 120 in / mm length 4.3 / 110 in / mm Dimensions height 1.4 / 36 in / mm mass 6.3 / 180 oz / g Supply Voltage Supply Current (13.8V) nominal -4 / -20 degF / degC Operating Temperature max (16V Supply) 185 / 85...
  • Page 51 CAN Transmit Rate (Unit 1) CAN Transmit Rate (Unit 2)
  • Page 52 FAQ / Troubleshooting My CAN Sensor Module doesn't seem to be outputting anything. Confirm that your CAN bus is properly terminated and that all nodes are configured for the right bus speed. In addition, any receiving devices/nodes must be specifically configured to receive as the Module is configured to transmit;...
  • Page 53 Analog7Resistance 16 bit unsigned 1 Ohm/bit 0 to 65535 Ohm Analog8Resistance 16 bit unsigned 1 Ohm/bit 0 to 65535 Ohm Unit 1: 0x503(11) / 0x0000B003 (29) at 10Hz Unit 2: 0x603(11) / 0x0000C003 (29) at 5hz Byte Label Data Type Scaling Offset Range...
  • Page 54 Unit 1: 0x507(11) / 0x0000B007 (29) at 50Hz Unit 2: 0x607(11) / 0x0000C007 (29) at 25Hz Byte Label Data Type Scaling Offset Range Digital5Frequency 16 bit unsigned 1 Hz/bit 0 to 65535 Hz Digital6Frequency 16 bit unsigned 1 Hz/bit 0 to 65535 Hz Digital5DutyCycle 8 bit unsigned 1 %/bit...
  • Page 55 General Wiring Guidelines · Route wiring away from sources of noise such as alternators, ignition components, or other high power/frequency wiring · Shielded wire is suggested to reduce the susceptibility of noise; the shield should only be grounded/drained on one end of the wiring harness ·...
  • Page 56 Jumper Configuration Two configuration jumpers are located inside the enclosure of the Module. The cover may be removed by unscrewing the four external screws to change the jumper positions if needed. The Module is delivered from the factory in the most common configuration suitable for use with AEMnet (and other) devices; changing the jumper positions is not typically necessary.
  • Page 57 Compatible Sensor and Accessory Part Numbers The following is a list of compatible sensors and accessories. AEM PN Description K-Type Closed Tip Thermocouple Sensor Kit. Inconel Sheath. 1/8" NPT Compression Fitting. Includes: K- 30-2065 Type Closed Thermocouple Sensor, 1/8" Compression Fitting & Ring Terminal Harness K-Type Closed Tip Thermocouple 10' Wiring Extension Kit.
  • Page 58 ID Type (User Configurable) 11 / 29 bits Termination None Bytes...
  • Page 59 FAQ / Troubleshooting My Module doesn't seem to be outputting anything. Confirm that your CAN bus is properly terminated and that all nodes are configured for the right bus speed. In addition, any receiving devices/nodes must be specifically configured to receive as the Module is configured to transmit;...
  • Page 60 Unit 1: 0x0000BA02 (29) / 0x5A2 (11) at Unit 2: 0x0000BB02 (29) / 0x5B2 (11) at 2Hz Byte Label Data Type Scaling Offset Range Cold Junction Temperature 16 bit signed 0.1 degC/bit -3276.8 to +3276.7 degC Battery Voltage 8 bit unsigned 0.1 V/bit 0 - 25.5 V AEMNet Hub...
  • Page 61 Function AEMNet + (CAN Hi) AEMNet - (CAN Lo) Switched Power Ground All AEMNet hub ports have the same pinout. If powering devices through the hub, power and ground is only necessary on one port. The hub will distribute power to all other ports.
  • Page 62 Installation Installation The module may be mounted within the vehicle using hook-and-loop fastener (not included) or bolted (#4 screws included) to a suitable structure. The module is weather-resistant (IP67) and may be mounted in the engine compartment.
  • Page 63 AEMNet Network Wiring AEMNet Network Wiring Refer to the following guidelines when wiring AEMnet (CAN) devices. · Twisted wire is required with >1 twist per inch. · AEMnet buses must be properly terminated. Termination resistors are 120 Ohms each, two total, located at the physical ends of the bus wires.
  • Page 68 OBDII Setups AEM’s dash with optional OBDII interface cable P/N 30-2217 puts multiple channels of data at your fingertips by reading the CAN bus stream of your 2008+ model year vehicle’s OBD port and transmitting those channels to the dash. To configure your dash for OBDII data display, the dash must first scan your vehicle's OBDII port to identify all ECUs and available PIDs.
  • Page 69 Be sure the dash is powered up and connect the USB cable between the dash and your PC and not plugged into the car yet. Connect the OBDII connector to your vehicle's OBDII port then unplug the USB cable to begin the scan.
  • Page 70 The dash will scan your vehicle and identify all available PIDs. When the scan is complete the message Reconnect USB cable to complete process will be displayed on the dash. The following window will be displayed in the Dash Design software. At this point in the process, you have the option to press the right button on the dash to scroll through a live display of available PID data.
  • Page 71 Connect the USB cable to your PC. The scan is complete. Click OK to proceed. NOTE: At this point, we recommend saving the setup file as there may have been changes applied during the scan process. You must upload your setup before proceeding by selecting File | Upload to Display...
  • Page 72 Open the Setup Editor. OBDII PIDs will be automatically added to your list of available outputs. The circled examples above represent the same PID from different vehicle ECUs. In these cases, the system will append a suffix E2 for ECU2 and so on but can be ignored as they are non standard PIDs and may perform differently from expected.
  • Page 73 This is a complete listing of available PIDs. AEM supplied setup files for OBDII messages will be located in the \Documents\AEM\DashDesign\Setups\App Specific\OBDII folder. The complete PID list will vary between cars so modification to the default setup is encouraged to view desirable data.
  • Page 74 The last five files opened can be accessed by selecting File | Reopen followed by the appropriate file from the sub menu. To save a setup under a new filename, select File | Save As.., enter a file name in the file save dialog and click the Save button.
  • Page 75 Select the screen you want to import by clicking on the screen name and Clicking OK. Basic Editing of Default Setups To view screens for editing go to Display | Screen X...
  • Page 76 The Layout Locked feature displayed at the bottom right of the screen prevents unwanted moving of screen items.
  • Page 77 The Layout Locked feature can be disabled by going to File | Lock Layout or by clicking the red Layout Locked area of the screen. Caution as inadvertent clicks and drags can move items unintentionally. Some basic editing of the default screens is possible even with the Layout Locked feature turned on. It is a good idea to leave the Layout Locked activated until you specifically need to move or delete a gauge.
  • Page 78 Here you can change the input displayed at this location. Click on the drop down to view a list of available channels. Uploading a Setup to a Display Uploading a setup programs the current setup into the color display. AEM DashDesign communicates with the AEM Dash via USB. To upload a setup: ·...
  • Page 79 Downloading a Setup From a Display Firmware 14x20 and later allows for layout files to be downloaded from the CD dash display. It is important to note that only layouts that have been uploaded to the dash with Allow Downloading enabled will be able to be downloaded.
  • Page 80 You can think of the display editor as a collection of tools for creating items on your screens. An AEM DashDesign setup consists of four logical components: Sources, outputs, sensors and gauges. These are defined as follows: · Sources or primary inputs are raw data manipulated by an operation. ·...
  • Page 81 Default CAN .dbc Support The AEM DashDesign includes a CAN .dbc import feature. A .dbc file is a standardized format for defining a set of CAN messages. Click on the CAN Receive tab in the Setup Editor. Click on the Import DBC... button to load or append a new .dbc file.
  • Page 82 Available .dbc files will be located in the \Documents\AEM\DashDesign\DBC folder. Selecting a file will open the import dialog. The levels can be expanded by clicking on the plus symbol.
  • Page 83 Select the channels for import by clicking the boxes. All available channels are selected by default. Click the Import button to import. All CAN message information is automatically imported along with necessary Scalar and Bit text operations. The channels are now available for assignment. Logging AEM Dash has 200Mbytes of internal data logging memory and supports logging rates of up to 1000Hz.
  • Page 84 Special Logger Outputs Enabling logger adds the following special outputs: · Log Mem Total - The total logging memory in kilobytes · Log Mem Free - The amount of logging memory remaining in kilobytes · Log Mem Percent Free - The percentage of logging memory free. ·...
  • Page 85 Go to Logger | Download Log If there are logs saved on the dash, a list similar to the one below will be presented. Select the files to download. Choose whether to erase the files from the dash or not. The chronologically oldest log file will indicate "Looped" if loop logging was enabled and the file has been clipped.
  • Page 86 Updating Dash Firmware As part of the continuing development process, from time to time new versions of the AEM Dash firmware will be released with new DashDesign installers. To upload the new firmware: · Firmware files are installed to the \Documents\AEM\DashDesign\Firmware folder. ·...
  • Page 87 The next example shows a simple unit conversion operation. Find the Convert Deg C to Deg F in the Scalars tab. This Scalar operation uses a Scalar value of 1.8 and an offset value of 32. Applying this Operation results in the following math expression.
  • Page 88 CAN Receive The Dash is a CAN display dash. The CAN receive tab of the Setup Editor must be defined for proper functionality. The steps involved in defining a CAN message structure from scratch is outside the scope of this manual. However, the system includes a robust CAN .dbc import feature that greatly simplifies the process.
  • Page 89 Scalars Operation The scalar sensor applies a gain (if specified) to the input which is then multiplied by the scalar and the offset added. If signed is ticked and the gain is not set to NONE, the input is treated as a twos compliment number.
  • Page 90 To edit the function table, click the ellipsis button (...) to show the function table editor: Ensure there are no duplicate inputs as this may result in abnormal behavior. Rate Filters Operation An output using a rate filter checks that the rate of change of the input value does not exceed a specified amount. If the rate of change is too high the new data is discarded.
  • Page 91 The Time Filter parameters have the following meanings: · Update period: Specifies the rate at which values are sent to outputs and gauges used by this output. For example, if the Update Period is set at 1000, a gauge displaying the value from this output will update once per second.
  • Page 92 To create a bit text operation, add a name for the operation in the Bit text tab and click on the (...) button to show the bit text editor: The priority determines the order in which the bitmasks are evaluated with low numbers being a higher priority. This ensures that if two bitmasks match, only the highest priority output text is returned from the sensor.
  • Page 93 The graphic selection count is the number of graphics used in the sensor and is at least two. The first graphic is shown by default. Subsequent graphics are shown according to the settings in the graphic Selections box. · Index - The number of the selection graphic for which the following settings are made. For example, if the selection count is set to 3, 1 will specify the first selectable graphic and 2 will specify the second selectable graphic.
  • Page 94 Select an Input from the drop down list along with Condition and Limit selections. In the example above, the Input AFR1_Gas is checked against a maximum condition of 15:1 AFR. Click the Add button to add additional criteria. Above, the input EngineSpeed is added as an "AND" condition with a limit of 0 RPM. With this logic, IF AFR1_Gas is greater than 15 AND EngineSpeed is greater than 0 (engine running), the alarm will trigger.
  • Page 95 The Retrigger value specifies a timeout in seconds after which the alarm (if still triggered) will toggle to untriggered and back to triggered. This is useful for when an alarm has been used to trigger a page change, usually showing a warning to the driver, for example, low oil pressure.
  • Page 96 The On Time, Off Time and Min On Time can be used to affect how the warning is displayed when only one warning is active and are scaled in milliseconds. For example, to have a single message flash at 2Hz, set the On Time to 1000 and the Off Time to 1000.
  • Page 97 Lap Timing and Track Mapping The following channels are used for lap timing and track mapping. Most AEM default setups include a lap timing screen. The VDM for GPS speed and lap timing section describes the basic setup and configuration of a GPS input for speed and position. Once configured, the screen will update with current data as the laps progress.
  • Page 98 · Fastest lap average speed · Fastest lap time delta (your current lap compared to the fastest lap) · Last lap number · Last lap time · Last lap average speed · Last lap time delta (your current lap compared to the last lap) ·...
  • Page 99 More details on Track Editing can be found in the AEMData documentation. Settings The Settings dialog will be populated correctly with all AEM supplied setup files. The options can be changed for custom setups. Night mode dialog box should be empty unless you want to control the mode via CAN.
  • Page 100 Shift Lights & LEDs The LED and shift light setup will be pre-configured with AEM supplied setup files. The Alarm outputs used to trigger the LEDs can be adjusted in the Setup Editor as shown in the example below. Alternately, the Auto Create Outputs feature can be used. Click this button and acknowledge the message shown below to continue.
  • Page 101 Select the output you want to use to trigger the warning lights. In the example below, we use Engine_Speed. Select your start RPM and you can use the following calculation to set your offset. Offset = (End RPM - Start RPM)/7 For example if you want to start at 5000 RPM and end at 7000 RPM: Offset = (7000-5000)/7 = 285...
  • Page 102 Alarm Page AEM setups will come pre-configured with many optional Alarm outputs. Choose the ones you want to trigger the Alarm Page. On Change Page The On Change Page allows you to setup a custom page that will be displayed when any changes are detected on selected channels.
  • Page 103 5%-10% is appropriate for night mode. NOTE: The LEDs used in the CD-5 unit are brighter and may require different settings compared to a CD-7 unit. Count Up and Count Down Timers The output channels Count Up Timer and Count Down Timer are configured in the Setup Editor.

  • Page 104: Display Screens

    Display Screens The AEM Dash supports 6 screen pages. The display also has a monitor list which enables permanent monitoring of data and a splash screen that appears when the display starts. Display Scaling By default, AEM DashDesign displays the screens at actual screen size (100%). For example, if the screen size of the hardware is 800x480 pixels, then the screen editor windows will also be 800x480.
  • Page 105 Furthermore, outputs added to the monitor screen are automatically stored in non-volatile memory. Thus, the value of a min, max or average output added to the monitor screen is preserved even when the screen is powered off. Select Display | Monitor to view the monitor screen setup. Add the outputs to be continuously monitored to the list. The Splash Screen The splash screen is a special screen that is shown for a set period when the display starts;...
  • Page 106 Selecting a Gauge A gauge is selected using either the mouse or keyboard. To select a gauge using the mouse, move the cursor over the gauge. If gauges are overlapping the topmost gauge is selected. Try moving the mouse to an area where the gauge to select is not covered by another gauge.
  • Page 107 · If the cursor is at the left or right edge of the gauge the cursor changes to an E-W cursor and is resized by dragging that side To resize a gauge using the edit window: · Show the Gauge Property window by right clicking on the selected gauge or by selecting it from the Edit menu.
  • Page 108 the up and down cursor keys or the up down buttons to move the gauge within the list. gauges towards the top of the list are drawn first (behind other gauges). Gauges towards the bottom of the list are drawn last (in front of other gauges).
  • Page 109 · h - Displays the hours in 12 hour format. · m - Displays the minutes. · s - Displays the seconds. · f - Displays tenths of seconds. · ff - Displays hundredths of seconds. · fff - Displays thousandths of seconds (only works for lap time via CAN). ·...
  • Page 110 Tacho Gauges The tacho gauges are typically used with engine speed or road speed and are available as either a curved bar gauge or a round gauge. They use minimum, maximum and resolution in the same manner as bars but also have labeled resolution lines, the frequency of which is specified by the label frequency property.
  • Page 111 Text Label Gauge The Text Label gauge is a static gauge (it has no input) that is used to label other gauges and provide static information to the user. The text displayed in the gauge is set in the Text property. The Direction property is used to specify the direction in which the text is drawn in.
  • Page 112 Value Gauge The Value Gauge shows the value of the output specified in the Input property according to the format specified in the Format property. The Justification property specifies whether the text is aligned to the left, right or centre of the bounding rectangle.
  • Page 113 Progressive Limit Gauge The Progressive Limit gauge is typically used to signal an approaching rev limit by means of several boxes that change color as the rev limit approaches. This gauge has the following special properties: · Box Count is the number of boxes in the gauge. ·...
  • Page 114 Updated Alarm Bar color mapping function allows for Alarm Bar colors to dynamically change between different colors based on assigned channel values. There are 12 different color mapping configurations to choose from. To create a color mapped Alarm Bar, first create a new Output channel – for example ThrottlePosBar. Set Operation to Color Map Operation and then click on the ellipses (“…”).
  • Page 115 Set the input to the appropriate channel and check Drive Color Directly From Input. All other Alarm Bar functions beyond this are the same as previous versions. For firmware version 14x17 and older: The color value is specified as a 24 bit RGB value. The hexadecimal (and decimal) values of some common colors are shown below: Color Hexidecimal...
  • Page 116 Input Output 32768 32768 16776960 16776960 16711680 1000 16711680 Note that it is also possible to display an alarm bar underneath a value gauge. For this to work correctly, the alarm bar must be bigger than the maximum likely size of the value gauge. When setting this up in the editor, it is easier to add the alarm bar to the page first then the value gauge;...
  • Page 117 · X Minimum, Y Minimum specify the starting values for the X and Y axes. · X Maximum, Y Maximum specify the end values for the X and Y axes. · Cursor Size is the size of the cross hair cursor. ·...
  • Page 118 Round Tacho Graphic Gauge The round tacho graphic gauge allows a scaled pointer or needle to be drawn over a graphic image of a gauge. This allows much more eye catching graphics to be used for round gauges than could otherwise be drawn dynamically by the display hardware.
  • Page 119 Index Firmware updating Index Format Function table - G - - A - Gauge 108, 110 Adding gauges adding Alarm alarm bar Alarm bar gauge Alarm page bar tacho bitmap - B - copy and paste cross hair Bar gauges deleting Basic setup editing editing properties...
  • Page 120 The AEM CAN Dash Sensor - L - scalar Settings Setup Lap timing 21, 97 editor LEDs Setup editor Limit filter Setups Logging creating opening - M - saving uploading Monitor screen Shape gauge Mounting Shift lights Moving gauges Spash screen Standard gauge properties - O - - T -...
