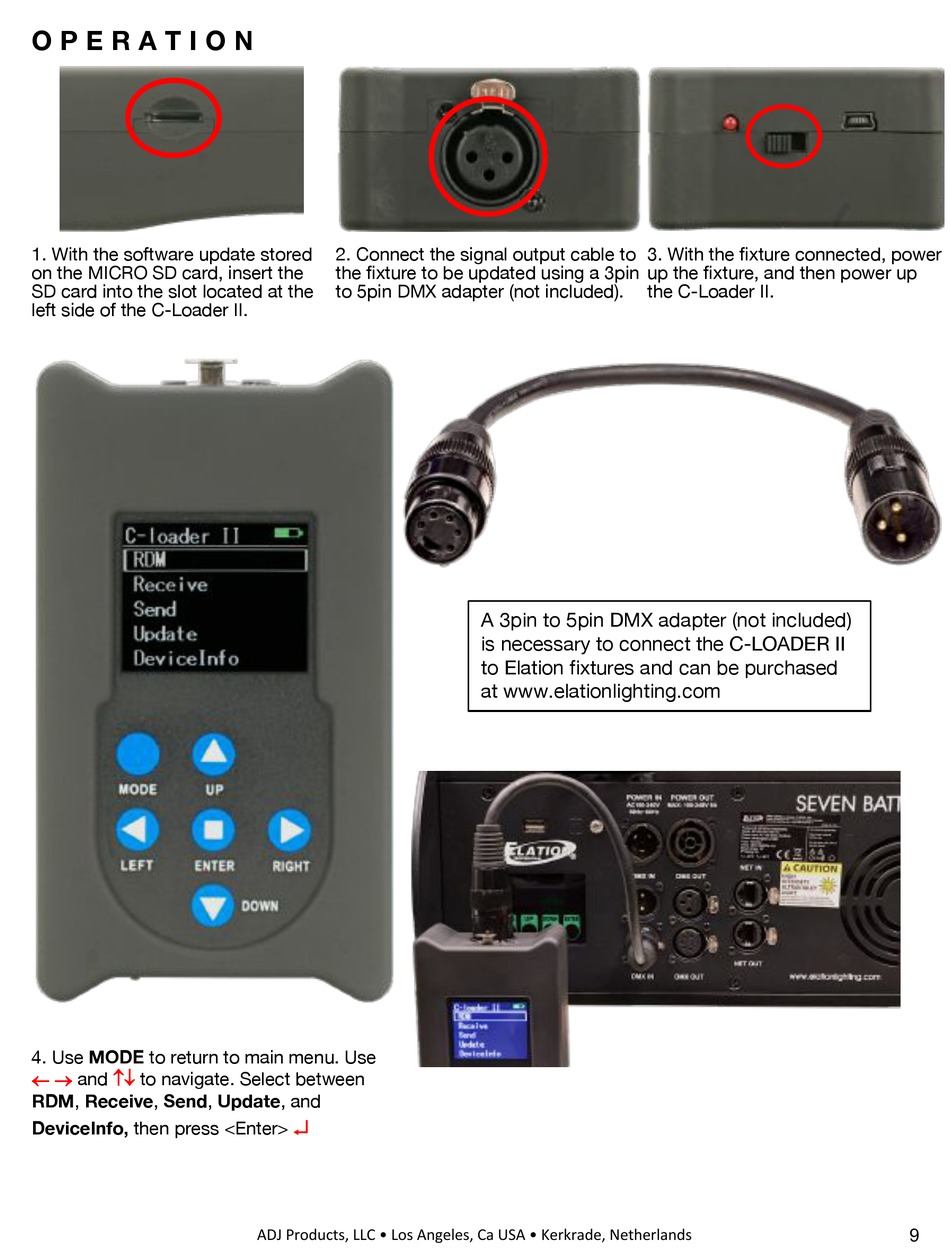

O P E R A T I O N
1. With the software update stored
on the MICRO SD card, insert the
SD card into the slot located at the
left side of the C-Loader II.
4. Use MODE to return to main menu. Use
¬ ® and ­¯ to navigate. Select between
RDM, Receive, Send, Update, and
DeviceInfo, then press <Enter>
2. Connect the signal output cable to
the fixture to be updated using a 3pin
to 5pin DMX adapter (not included).
¿
ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands
3. With the fixture connected, power
up the fixture, and then power up
the C-Loader II.
A 3pin to 5pin DMX adapter (not included)
is necessary to connect the C-LOADER II
to Elation fixtures and can be purchased
at www.elationlighting.com
