O V E R V I E W
The C-LOADER II™ is a battery powered hand held software uploader device used to update Elation
compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting
the C-LOADER II™ to the fixture using the included 3pin DMX cable. Elation software updates (not
included) are stored on a MICRO SD card (included) and inserted into the uploader. C-LOADER II™
features an LCD display, 6 button control panel, a MICRO SD card slot, a 3pin XLR DMX cable, USB
cable, and a blank MICRO SD card. Please contact Elation Service for details about available Elation
fixture software updates.
ADJ Products, LLC • Los Angeles, Ca USA • Kerkrade, Netherlands
BOX CONTENTS:
USB Cable
MICRO SD Card
USB to MICRO SD Card Adapter

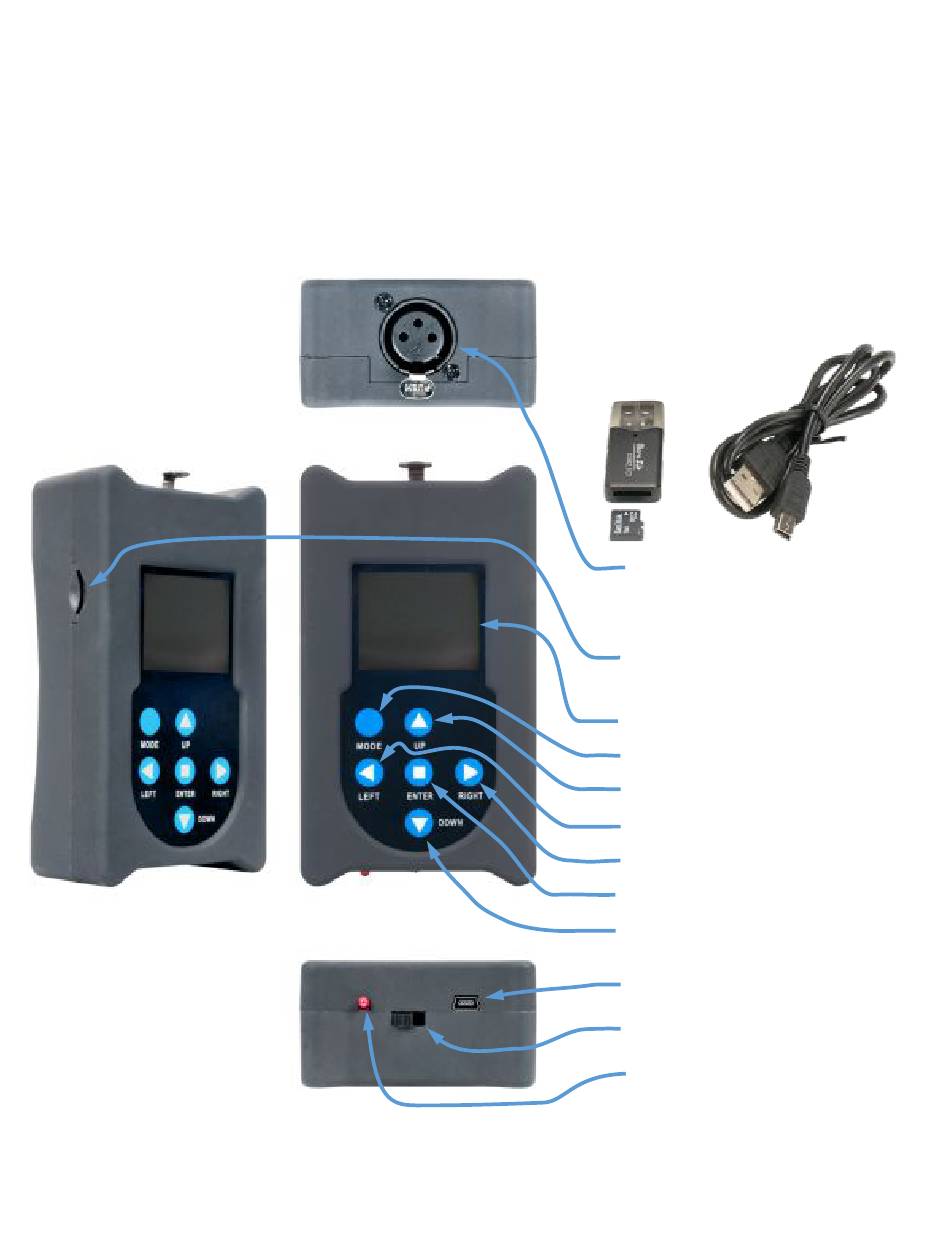

1. DMX OUT: 3pin XLR DMX
output signal
2. Micro SD Slot
3. LCD Display
4. MODE/ESC button
5. UP button
6. LEFT button
7. RIGHT button
8. ENTER button
9. DOWN button
10. USB Powered
11. Power switch
12. Power indication LED
