In-Line Installation - 5400 Model - Pool Frog 5400 In-Line Instruction Manual

TOOLS NEEDED
Hacksaw
Tape Measure
MATERIALS NEEDED
Primer and PVC Cement
PVC
P r ime r
C e me n t
SECURE CYCLER
C Y C LE R
M e te
r ed Po
ol Purifier
For better stability,
POOL FROG Cycler
may be mounted on
a treated wood base
using Phillips pan head
screws, one in front
and one in back. If you
have questions about
stability, please contact
your dealer or King
Technology.

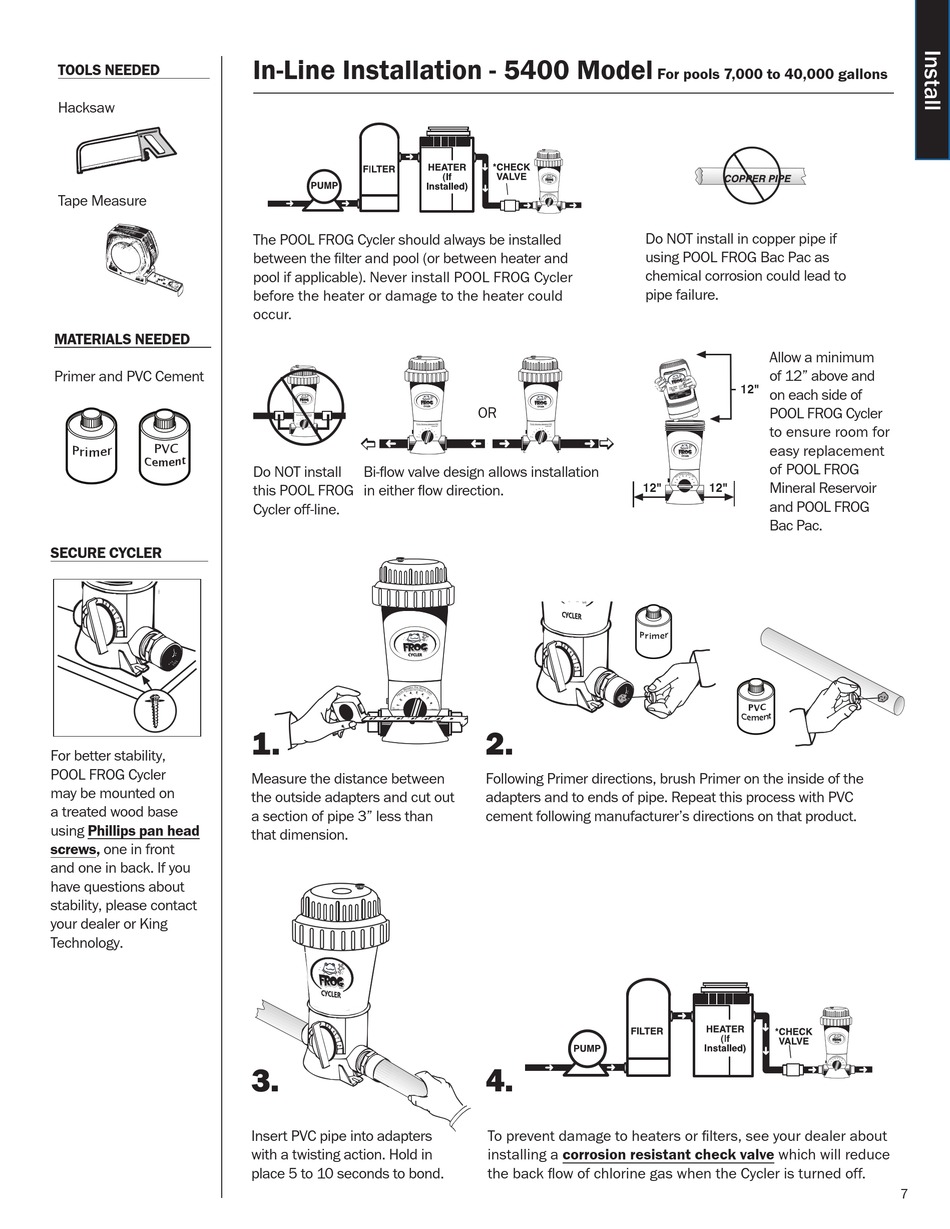

In-Line Installation - 5400 Model

The POOL FROG Cycler should always be installed
between the filter and pool (or between heater and
pool if applicable). Never install POOL FROG Cycler
before the heater or damage to the heater could
occur.
\
Bi-flow valve design allows installation
Do NOT install
this POOL FROG in either flow direction.
Cycler off-line.
1.
Measure the distance between
the outside adapters and cut out
a section of pipe 3" less than
that dimension.
3.
Insert PVC pipe into adapters
with a twisting action. Hold in
place 5 to 10 seconds to bond.
For pools 7,000 to 40,000 gallons
Do NOT install in copper pipe if
using POOL FROG Bac Pac as
chemical corrosion could lead to
pipe failure.
OR
[
12"
P ri me r
2.
Following Primer directions, brush Primer on the inside of the
adapters and to ends of pipe. Repeat this process with PVC
cement following manufacturer's directions on that product.
4.
To prevent damage to heaters or filters, see your dealer about
installing a corrosion resistant check valve which will reduce
the back flow of chlorine gas when the Cycler is turned off.
Allow a minimum
of 12" above and
12"
on each side of
POOL FROG Cycler
to ensure room for
easy replacement
of POOL FROG
12"
Mineral Reservoir
and POOL FROG
Bac Pac.
PVC
C emen t
