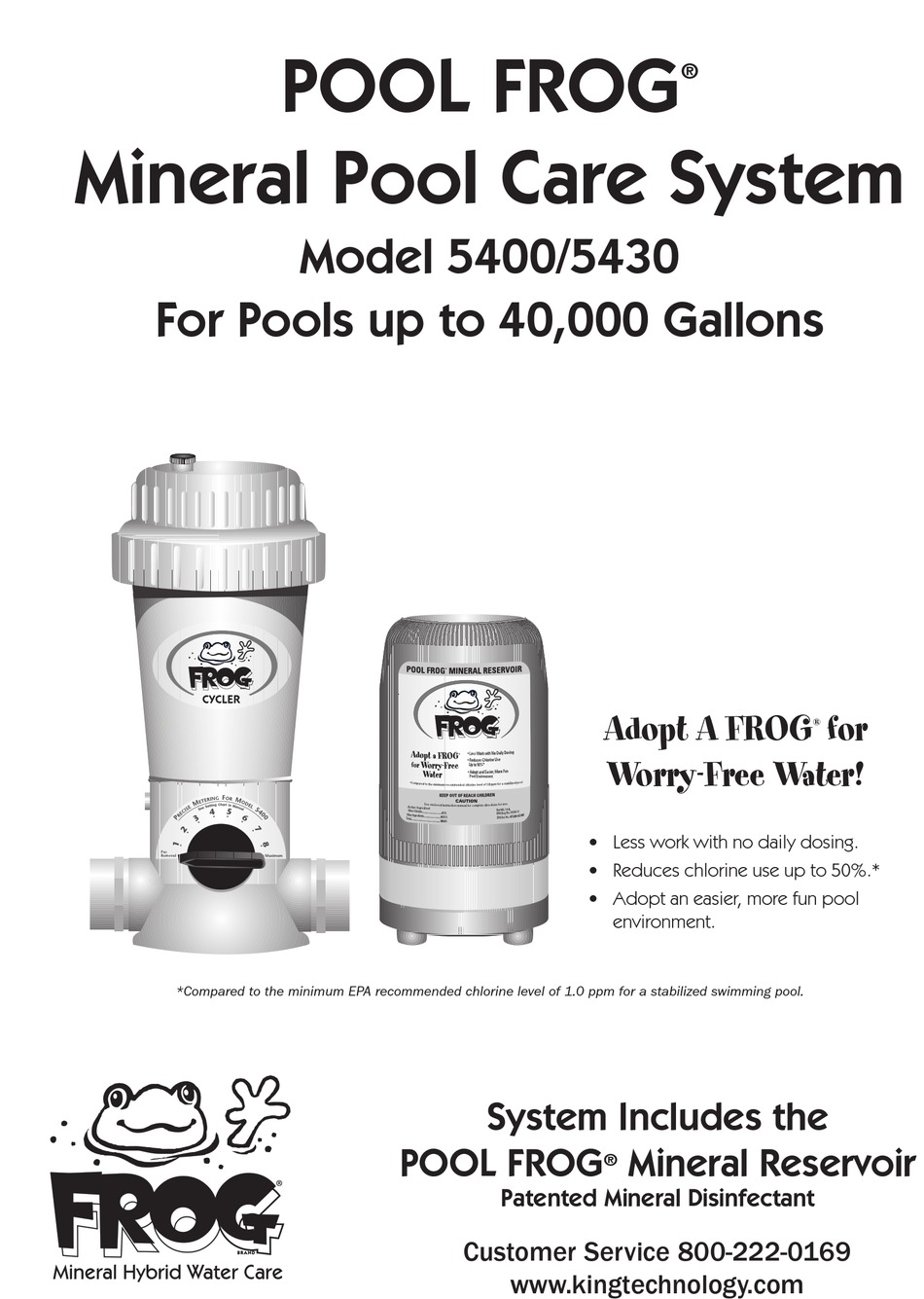

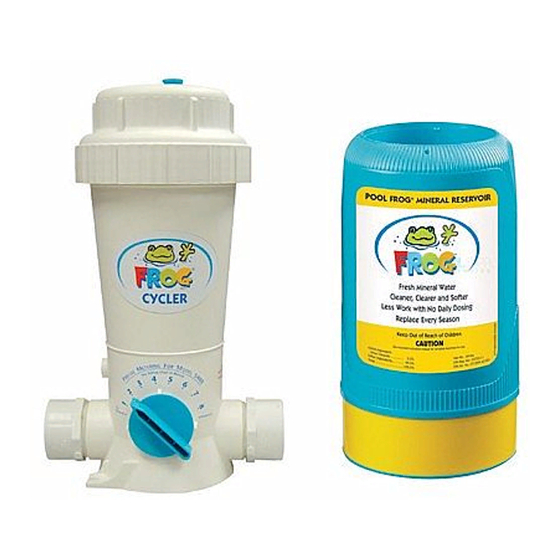

- Page 1 Pool Frog ® Mineral Pool Care System Model 5400/5430 For Pools up to 40,000 gallons B R A N D CYCLER Adopt A FROG ® ¨ B R A N D Worry-Free Water! • Less work with no daily dosing.
-
Page 2: Table Of Contents
TABLE OF CONTENTS POOL FROG® Introduction Swimming Pool Tips Start-up and Operation Replacing POOL FROG® Mineral Reservoir Using FROG BAM® Using POOL FROG® Bac Pac Troubleshooting Parts List Replacing Control Dial O-Rings Replacing Cap O-Rings and Knobs Winterizing In-line Installation... -
Page 3: Pool Frog® Introduction
POOL Welcome to easier pool care courtesy of POOL FROG®. With POOL FROG®, your pool water will look and feel better without a lot of work or a lot of chlorine. This system † controls bacteria using a combination of minerals FROG and reduced chlorine levels–up to 50%* less. -
Page 4: Swimming Pool Tips
If your fill water is high in metals, use a sequestering agent or metal out product at start-up only before using the POOL FROG® Mineral Reservoir. See your local dealer for details on using these products and always follow manufacturers directions carefully. -
Page 5: Start-Up And Operation
START-UP. USE CHLORINE SHOCK ONLY. Do not add shock in or near the skimmer or into the POOL FROG® Cycler as it could damage When chlorine reading is down equipment, risk potential explosion or discolor to 1.0 ppm, which may take a your pool surface. -
Page 6: Start-Up And Operation
POOL FROG® Do not add shock in or near the skimmer Cycler as it could damage equipment, or into the POOL FROG® Cycler as it could risk potential explosion or discolor your damage equipment, risk potential explosion pool surface. -
Page 7: Replacing Pool Frog® Mineral Reservoir
Check the top of the box and back label of product to make when the cap is open. sure you have the correct POOL FROG® Mineral Reservoir to fit your POOL FROG® Cycler. THE POOL FROG® MINERAL RESERVOIR MUST BE... -
Page 8: Using Frog Bam
Remove POOL FROG® Cycler cap. Lift FROG BAM® up and allow any water in the container to drain through the POOL FROG® Cycler before discarding in trash. Replace cap by hand only. DO NOT OVER TIGHTEN. -
Page 9: Using Pool Frog® Bac Pac
Using the USE ONLY the factory recommended replacement POOL FROG® Bac Pac. (See label.) DO NOT USE any other pac or bulk chemical tablets in the POOL FROG® Cycler. Use of any POOL FROG® other product could result in over chlorination, bleached liners, unsafe pool conditions, Bac Pac fire or explosion. -
Page 10: Troubleshooting
6. Check for a suction side reading has been lower than chlorinating with of the POOL FROG® Bac Pac leak by looking for air bubbles 0.5 ppm for more than one the POOL FROG® and it is installed properly. If in your pump basket or at day. -
Page 11: Parts List
Parts List Models 5400/5430 8 & 9 SILICONE LUBRICANT INCLUDED WITH THE POOL FROG® Model 5400 REPLACEMENT PARTS FOR POOL FROG® Model 5400 REF. # DESCRIPTION QTY. INCLUDED REF. # PART NUMBER DESCRIPTION 1 & 2 Cap w/O-Ring 1 & 2... -
Page 12: Replacing Control Dial O-Rings
POOL FROG® Cycler Maintenance Replacing Cap O-Ring Replacing the Control Dial O-Rings Hold cap in front of you Using a needle nose pliers, upside down with the o-ring find the snap ring tail located groove facing up. Place one at approximately the five... -
Page 13: Winterizing
Winterizing Turn pump off and turn dial If POOL FROG® Bac Pac still to Pac Removal. contains chlorine, wrap in plastic bag and store in shed or cool well-ventilated location away from children, pets, cars, motorcycles or anything metal that can rust, pit, etc. Make sure POOL FROG®... -
Page 14: In-Line Installation
Use Phillips pan head screws through the mounting holes at the POOL FROG® Cycler If using a POOL FROG® Bac Pac, isolating the POOL FROG® Insert PVC pipe into male base to secure the Cycler by installing a corrosion resistant check valve is adapters with a twisting POOL FROG®... -
Page 15: Off-Line Installation
5/8” or 19/32” Bit MATERIALS NEEDED Pipe Thread Sealant Do NOT install an off-line POOL FROG® Cycler in-line as Bi-flow valve design allows water flow in either direction. PVC Cement this POOL FROG® Cycler is P I P E different than an in-line unit. - Page 16 FROG® Cycler base to secure the POOL FROG® Cycler into a treated wood base. SCOOPS 2”– 36” APART ON STRAIGHT PIPE If using the POOL FROG® Bac Pac, isolating the POOL FROG® Cycler by installing a corrosion resistant check valve is recommended.
-
Page 17: For Proper Performance
For Proper Performance 1) If using a multi-speed pump, run pump for at A. With High GPMS least 6 hours per day at high speed (at least POOL FROG 40 gpm). Install T-fittings exactly as shown. CYCLER If the pump will run on low speed 24 hours per... -
Page 18: Warranty
6,544,415; 6,551,609; 6,652,871 and other U.S. and Foreign 952-933-6118 • 800-222-0169 • FAX 952-933-2206 patents pending. www.kingtechnology.com FROG®, POOL FROG®, XL PRO®, SPA FROG®, INSTANT FROG®, FILTER FROG®, FROG BAM®, 20-48-0164E 553011343R7N are registered trademarks of King Technology, Inc. NEW WATER® and SANI-KING®...
