Page 1 Softer because it reduces chlorine use up to 50%* Easier with pre-filled pacs for no mess, no guess and no stress POOL FROG Cycler comes with the POOL FROG Mineral Reservoir Patented Mineral Disinfectant ® Customer Service 800-222-0169 frogproducts.com...
Page 2: Table Of Contents
Step 1: Preparing the Pool 10-11 Step 2: Putting the System to Work Step 3: Setting the Control Dial Step 4: Routine Pool Care Replacing POOL FROG Mineral Reservoir Using FROG BAM ® Using POOL FROG Bac Pac ® Winterizing...
Page 3: Pool Frog Introduction
POOL FROG M ineral Reservoir comes inside POOL FROG Cycler and is also sold separately. POOL FROG B ac Pac and FROG BAM also sold separately. POOL FROG Mineral System consists of the FROG minerals silver chloride and carbonate used in conjunction with 0.5 ppm chlorine. †...
Page 4: Notes And Safety Information
Notes and Safety Information General Notes These instructions contain information for the safe and proper These instructions do not provide for every possible contingency operation of this Cycler. Observe the following principles: that might be encountered in connection with installation, opera- •...
Page 5: Safety Labels On Cycler
Safety Label on Cycler Review this label before installing or operating this Cycler. Contact King Technology at 800-222-0169 if this label is missing from your POOL FROG Cycler. Fire, explosion and high pressure hazards To minimize the risk of serious injury, death or property damage while using the POOL FROG Cycler: a Read, understand and follow all instructions and safety precautions in the manual, and on this Cycler and on any label for chemicals used with this Cycler including POOL FROG Bac Pacs, POOL FROG Mineral Reservoir and FROG BAM Algae Preventative.
Page 6: Installation Tips To Ensure Proper Performance
The best option is to have two lines. One line with pump, filter, heater and POOL FROG Cycler and a second line with a separate pump for the in-floor air while the pump is on by unscrewing cleaning system (filter optional).

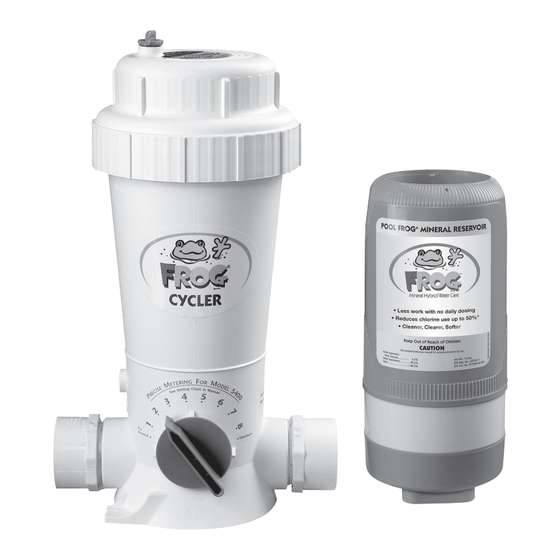

Page 7: In-Line Installation - 5400 Model
For pools 7,000 to 40,000 gallons Hacksaw Tape Measure Do NOT install in copper pipe if The POOL FROG Cycler should always be installed using POOL FROG Bac Pac as between the filter and pool (or between heater and chemical corrosion could lead to pool if applicable).
Page 8: Off-Line Installation - 5430 Model
Off-Line Installation - 5430 Model TOOLS NEEDED Screwdriver The POOL FROG Cycler should always be installed between the filter and pool (or SCOOPS 2” – 36” APART between heater and pool if applicable). Pipe Wrench Never install POOL FROG Cycler before the heater or damage to the heater could occur.
Page 9 Tighten scoop clamps with a screwdriver. For better stability, POOL FROG Cycler may be mounted on a treated wood base using Phillips pan head screws, one in front and one in back. If you...
Page 10: Step 1: Preparing The Pool
Step 1: Preparing the Pool Make sure the pool has adequate Check for metals in the pool such circulation. The total volume of pool as iron or copper. Before attempting water must completely circulate Metal water balance, these should be through the pump and filter at least removed.
Page 11 Active Chlorine turn cartridge turn cartridge Look at the Total Alkalinity reading first. Adjustments bleach, or calcium hypochlorite in the POOL FROG setting up setting down should be made to bring the Total Alkalinity in the range of 1 number 1 number Cycler.
Page 12: Step 2: Putting The System To Work
Step 2: Putting the System to Work nstall a POOL FROG Mineral Insert FROG BAM into the Reservoir into the POOL open center of the POOL FROG FROG Cycler. (See page 15 for Mineral Reservoir in the POOL directions.) FROG Cycler. (See page 16 for directions.)
Page 13: Step 3: Setting The Control Dial
Step 3: Setting the Control Dial This system is designed to work effectively with a variety of pool equipment as long as the following procedures are followed. Set control dial by matching up the parameters of your pool on the chart below. THIS IS A STARTING POINT ONLY and may need to be adjusted to fit your individual pool needs.
Page 14: Step 4: Routine Pool Care
FROG products. However, using a chlorine shock is OK too. WARNING To prevent the build up of gas pressure in the POOL FROG DANGER Cycler, be sure the pool return line valves are open –except when opening or servicing the unit.
Page 15: Replacing Pool Frog Mineral Reservoir
50%*. Simply use with at least 0.5 ppm of an EPA registered source of chlorine such as the POOL FROG Bac Pac (EPA Reg. No. 53735-2) or a chlorine delivery device. Using the POOL FROG Mineral System...
Page 16: Using Frog Bam
If you are not using FROG BAM, refer to page 17 for Using the For a preventive dose add: POOL FROG Bac Pac. See FROG BAM product labeling for •One FROG BAM for pools up to 15,000 gallons. complete directions for use (EPA Reg. No. 53735-9).
Page 17: Using Pool Frog Bac Pac
POOL FROG Cycler. WARNING Avoid sparks, smoking, or any open flame near POOL FROG Cycler or chemicals. IMPORTANT: Read the label on the POOL FROG Bac Pac carefully Replace cap by hand only. DO NOT before using. OVER TIGHTEN.
Page 18: Winterizing
Winterizing If POOL FROG Bac Pac still Turn pump off and turn dial contains chlorine, wrap in to Pac Removal. plastic bag and store in shed or cool, dry, well-ventilated location away from children, pets, cars, motorcycles or anything metal that can rust, pit, etc.
Page 19: Troubleshooting
0.5 ppm chlorinating with the POOL FROG Bac Pac and 6. Check for a suction side for more than one day. the POOL FROG it is installed properly.
Page 20: Parts List
Parts List Models 5400 and 5430 8 & 9 SILICONE LUBRICANT See your dealer or hardware store for a replacement. INCLUDED WITH THE POOL FROG Model 5400 REPLACEMENT PARTS FOR POOL FROG Model 5400 REF. # DESCRIPTION QTY. INCLUDED REF. # PART NUMBER DESCRIPTION 1 &...
Page 21: Maintenance - Replacing Control Dial O-Rings
POOL FROG Cycler Maintenance Replacing the Control Dial O-Rings Using a needle nose pliers, find Push control dial completely the snap ring tail located at into the housing and turn the approximately the five o’clock dial to setting 2. position under the control dial.
Page 22: Maintenance - Replacing Cap O-Rings And Knobs
POOL FROG Cycler Maintenance continued... Replacing Knobs Replacing the Cap O-Ring Remove old O-ring. To replace, simply unscrew old knob and replace with the new one. Top half of groove Place new O-ring in bottom half of groove. Place your thumbs on each side of the cap over the O-ring in the groove.
Page 23: Warranty
To extend your warranty to 10 years, go to frogproducts.com/reg. 5. Misuse or failure to use the proper POOL FROG Mineral Reservoir and POOL FROG Bac Pac may cause damage to equipment or per- 2.
Page 24 FROG FROG BAM SmartChlor ® ® ® POOL FROG FROG Serene FROG Jump Start ® ™ ® POOL FROG XL PRO FROG Filter Mate Fresh Mineral Water ® ™ ® Flippin’ FROG INSTANT FROG New Water ® ® ® Flippin’ FROG XL ®...
