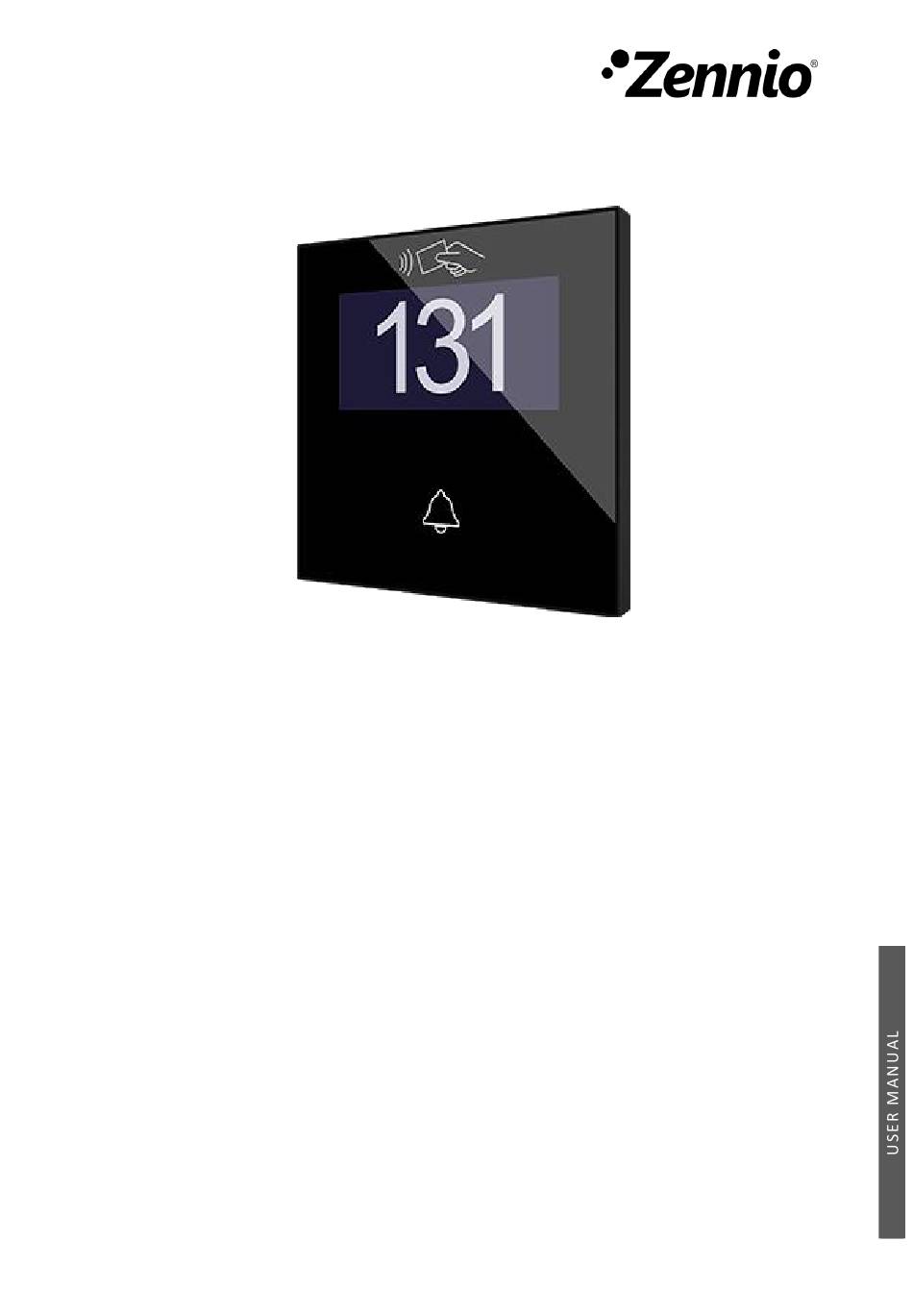

- Page 1 IWAC Display Access Controller with Display ZIO-IWACD dsñkmfroi Application Program Version: 1.1 User manual edition: [1.1]_a www.zennio.com...
-
Page 2: Table Of Contents
2.2.3 Motion Detector ...................... 14 2.3 Buttons ........................... 16 2.3.1 Configuration ......................16 2.3.2 Left/Central/Right Button ..................17 2.4 Display ..........................21 2.4.1 Translations ......................22 2.4.2 Texts ......................... 23 2.5 Access control ........................ 25 ANNEX I. Communication Objects....................27 http://www.zennio.com Technical Support: http://support.zennio.com... -
Page 3: Document Updates
IWAC Display DOCUMENT UPDATES Version Changes Page(s) Changes in the application program: • Update of the Heartbeat, Binary Inputs, Motion [1.1]_a Detector and Temperature Probe modules. http://www.zennio.com Technical Support: http://support.zennio.com... -
Page 4: Introduction
IWAC Display 1 INTRODUCTION 1.1 IWAC DISPLAY IWAC Display from Zennio is a KNX interface presented as an access control system to rooms or other parts of the installation through reading ID cards. The most notable features of this device are:... -
Page 5: Access Control System
IWAC and the notification of certain events. NFC card: passive element for accessing to certain rooms. IWAC Display is compatible with MIFARE DESFire cards. As indicated before, for security reasons, the communication between IWAC and Securel is encrypted. http://www.zennio.com Technical Support: http://support.zennio.com... - Page 6 2.5). In addition, IWAC Display allows access to all the cards associated with its identifier. Black list: groups or cards with access denied. This list is set in Z-Access and transmitted to IWAC Display through the KNX bus. http://www.zennio.com Technical Support: http://support.zennio.com...
- Page 7 White list: Guest, Cleaning Black list: Guest Card 1 Access denied Card 2 Access denied Card 3 Access granted Card 4 Access denied http://www.zennio.com Technical Support: http://support.zennio.com...
-
Page 8: Installation
“1” to “2”, while the other cable should be connected to the slot labelled as “C”. Note that all the external input devices share the “C” slot for one of the two cables. Please secure the connection by means of the onboard screws. http://www.zennio.com Technical Support: http://support.zennio.com... - Page 9 For detailed information about the technical features of the device and for safety instructions or about the installation process, please refer to the corresponding Datasheet, bundled with the original package of the device and also available at www.zennio.com. http://www.zennio.com Technical Support:...
-
Page 10: Start-Up And Power Loss
On the other hand, a KNX bus power failure does not imply any change in the device status since it has external power supply. Therefore, the device will continue operating normally, although, of course, there will be no communication with the KNX bus. http://www.zennio.com Technical Support: http://support.zennio.com... -
Page 11: Configuration
See section 2.4 for details. Access Control: read-only parameter to make it evident that the “Access Control” tab is always enabled in the tab tree on the left. See section 2.5 for details. http://www.zennio.com Technical Support: http://support.zennio.com... - Page 12 “0 = Enable; 1 = Disable”). The project topology shows the following objects by default: “Request Date and Time”: object to request time and date update. Important: time setting must be done through the bus, by means of an external reference. http://www.zennio.com Technical Support: http://support.zennio.com...
- Page 13 Invalid card: “Invalid Card” Access Granted: “°4FB108A0000C7”. The degree symbol corresponds to the transformation of the most significant bit: 0 (ASCII) 0x30 (Hex) 00110000 (binary) 10110000 (MSB = 1) ° (ASCII). Access Denied: “04FB108A0000C7”. http://www.zennio.com Technical Support: http://support.zennio.com...
-
Page 14: Inputs
It is possible to connect motion detectors (models ZN1IO-DETEC-P and ZN1IO- DETEC-X from Zennio) to the input ports of IWAC Display. This brings the device with the possibility of monitoring motion and presence in the room, as well as the light level. - Page 15 Motion detectors with references ZN1IO-DETEC and ZN1IO-DETEC-N are not compatible with IWAC Display (may report inaccurate measurements if connected to this device). When connected to IWAC Display, the rear micro-switch of model ZN1IO- DETEC-P should be set to position “Type B”. http://www.zennio.com Technical Support: http://support.zennio.com...
-
Page 16: Buttons
When the Buttons function has been activated in the General parameter screen, the Buttons section will be available in the tree on the left, containing itself a tab named Configuration. The screen is divided into two zones: enable buttons and lock buttons. http://www.zennio.com Technical Support: http://support.zennio.com... -
Page 17: Left/Central/Right Button
Scene: after the user touches the button, an order to run a specific scene (configurable) will be sent to the bus. In all cases, it can be configured a Press Detection Delay. During this time, no press will be considered. http://www.zennio.com Technical Support: http://support.zennio.com... - Page 18 Please note that in the next pages “[n]” is used as a general notation for the communication objects, where “n” depends on the particular button (1 Left button, 2 Central button and 3 Right button). Binary Figure 9. Button – Binary. http://www.zennio.com Technical Support: http://support.zennio.com...
- Page 19 “[Button] [n] Binary Control, Hold & Release”) when the user stops touching the button. The options are “Send 0” (default) and “Send 1”. Two Objects (Short Press/Long Press) Figure 11. Button - Two Objects (Short Press/Long Press). http://www.zennio.com Technical Support: http://support.zennio.com...
- Page 20 Note: To detect a long press, the pressing time must be the sum of the Press Detection Delay plus the Long Press Threshold Time. Scene Figure 12. Button – Scene. Scene Number: number of the scene (1 – 64) to be sent to the bus. http://www.zennio.com Technical Support: http://support.zennio.com...
-
Page 21: Display
“Name”. In case of selecting number, an additional parameter Minimum Number of Digits will be displayed to set the minimum number of digits that will be shown (for example, if number is 19 and minimum number of digits 3, the display will show 019). http://www.zennio.com Technical Support: http://support.zennio.com... -
Page 22: Translations
2.4.1 TRANSLATIONS The information shown on the display can be translated into up to five different languages, among which the IWAC Display will show the one corresponding to the language settings recorded on the access card. http://www.zennio.com Technical Support: http://support.zennio.com... -
Page 23: Texts
Access granted: reading a card with access permission. Access denied: reading a card with no access permission. Access granted when in “do not disturb”: reading a card with access permission when IWAC Display is in do not disturb mode. http://www.zennio.com Technical Support: http://support.zennio.com... - Page 24 Parameters Line 1 and Line 2 permit setting the texts for each message. If several languages have been enabled in the “Translations” tab (see section 2.4.1), it can be set the text for each language. Figure 18. Messages displayed according to the parameterisation of Figure 17. http://www.zennio.com Technical Support: http://support.zennio.com...
-
Page 25: Access Control
White List Entries (Groups): it is possible to configure up to five groups in the white list of IWAC Display. These groups will be included (or updated) in the white list every start-up process. Groups are: “Guest”, “Visitor”, “Staff”, “Management”, “Service”, “Cleaning”, “Maintenance”, “Security”. http://www.zennio.com Technical Support: http://support.zennio.com... - Page 26 Texts tab (see section 2.4.2) is displayed. If there is a second access attempt with the same card within the next 30 seconds, access is granted. ➢ Deny Entry: the access to the room is denied directly. http://www.zennio.com Technical Support: http://support.zennio.com...
-
Page 27: Annex I. Communication Objects
[Ix] [Short Press] 0 Sending of 0 17, 23 1 Bit C T - - - DPT_Switch [Ix] [Short Press] 1 Sending of 1 1 Bit C T - W - DPT_Switch [Ix] [Short Press] 0/1 Switching Switching 0/1 http://www.zennio.com Technical Support: http://support.zennio.com... - Page 28 [Ix] [Short Press] Dimming Status (Input) 0% - 100% 1 Bit C T - - - DPT_Switch [Ix] [Long Press] 0 Sending of 0 19, 25 1 Bit C T - - - DPT_Switch [Ix] [Long Press] 1 Sending of 1 http://www.zennio.com Technical Support: http://support.zennio.com...
- Page 29 0% - 100% [Ix] [Long Press] Dimming Status (Input) 0% - 100% 21, 27 1 Byte C - - W - DPT_Scaling 0% - 100% [Ix] [Long Press] Shutter Status (Input) 0% = Top; 100% = Bottom http://www.zennio.com Technical Support: http://support.zennio.com...
- Page 30 1 Bit C T R - - DPT_Alarm [Ix] Overheating 0 = No Alarm; 1 = Alarm 91, 95 1 Bit C T R - - DPT_Alarm [Ix] Probe Error 0 = No Alarm; 1 = Alarm http://www.zennio.com Technical Support: http://support.zennio.com...
- Page 31 Join and send us your inquiries about Zennio devices: http://support.zennio.com Zennio Avance y Tecnología S.L. C/ Río Jarama, 132. Nave P-8.11 45007 Toledo. Spain Tel. +34 925 232 002 www.zennio.com info@zennio.com...
