AW4061
ADSL2+ WiFi Router
User Manual
Version 1.0
30-July-2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AW4061 and is the answer not in the manual?

Questions and answers

Related Manuals for TECOM AW4061

Summary of Contents for TECOM AW4061

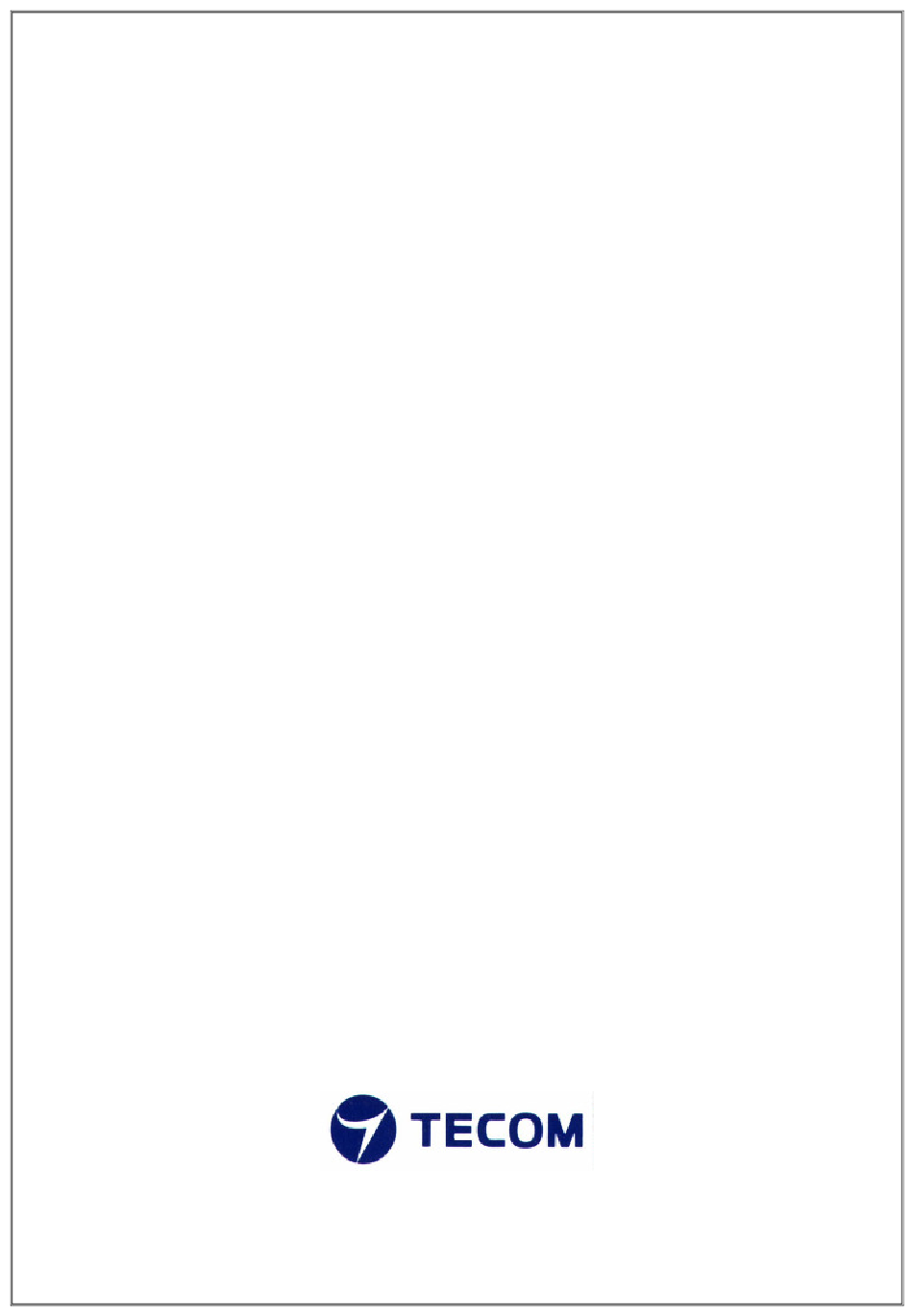

  • Page 1 AW4061 ADSL2+ WiFi Router User Manual Version 1.0 30-July-2007...

  • Page 2: Revision History

    REVISION HISTORY Revision Date Change Description 30-JULY-2007 Initial release...

  • Page 3: Hardware Connection

    2. LAN1~4: Use the included Ethernet cable to connect a computer to the one of LAN port for Web setup and Internet access. 3. ADSL: Use the included telephone cable to connect your AW4061 ADSL port to a telephone jack (or connect the included splitter, the port mark MODEM)

  • Page 4: Led Status

    After you have made the connections, push in the power button to power on the AW4061. 1. The POWER LED turns red light until AW4061 start up. When start up ready, the light change to green and stay on .

  • Page 5: Set Up Internet Access

    AW4061 QIG Version 1.0 Page-3- SET UP INTERNET ACCESS 1. Login to AW4061 through Web Browser Configure your PC IP address automatically and DSN server automatically . In your browser, go to http://192.168.1.1 Enter the default login: Username: admin / Password: system 2.
  • Page 6 AW4061 QIG Version 1.0 Page-4- Set VPI /VCI and choose the Channel Mode.
  • Page 7 AW4061 QIG Version 1.0 Page-5- If choose the PPPoE or PPPoA Channel Mode, you need configure the PPP Setting. Note: PPPoX can use default setting for DNS automatically. If choose the 1483 MEM or 1483 Routed Channel Mode, you need configure the WAN IP Setting.
  • Page 8 Page-6- Then you need click Services ->[DNS]->[DNS Server] and set the DNS manually. After finish the settings, go to the Admin->[Commit/Reboot] and click it to reboot AW4061. 4. Check ADSL Link Status There are two sub-menu for Statistic: [Interface], [ADSL]. Choose the [ADSL] will show up as following:...
  • Page 9 Page-7- 5. Wireless Configuration AW4061 is default enable for wireless service, so you didn’t need configure anything for using wireless. The default SSID is RTL867x-ADSL, you can get the access point on your computer. There are Five sub-menu for Wireless configuration: [Basic Settings], [Advanced Settings], [Security], [Access Control], [WDS].
  • Page 10 4. Select Internet Protocol (TCP/IP) then click Properties 5. The TCP/IP Properties windows appears. You can select obtain an IP address automatically and click OK to have the AW4061 assign your computer an IP address. Or you can enter the IP within the same subnet as AW4061.
  • Page 11 Europe – EU Declaration of Conformity This device complies with the essential requirements of the R&TTE Directive 1999/5/EC. The following test methods have been applied in order to prove presumption of conformity with the essential requirements of the R&TTE Directive 1999/5/EC: EN 60950-1: 2001 Safety of information technology equipment IEEE Std.
  • Page 12 Hereby, [TECOM CO., LTD], declares that this [AW4061] is in compliance with the essential English requirements and other relevant provisions of Directive 1999/5/EC. Español Por medio de la presente [TECOM CO., LTD] declara que el [AW4061] cumple con los requisitos esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva [Spanish] 1999/5/CE.
  • Page 13 [TECOM CO., LTD] izjavlja, da je ta [AW4061] v skladu z bistvenimi zahtevami in ostalimi Slovensko relevantnimi določili direktive 1999/5/ES. [Slovenian] [TECOM CO., LTD] týmto vyhlasuje, že [AW4061] spĺňa základné požiadavky a všetky Slovensky príslušné ustanovenia Smernice 1999/5/ES. [Slovak] [TECOM CO., LTD] vakuuttaa täten että [AW4061] tyyppinen laite on direktiivin 1999/5/EY Suomi oleellisten vaatimusten ja sitä...

  • Page 14: Regulatory Approvals

    Regulatory Approvals FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communica- tions.
