TECOM AW4042U Quick Installation Manual

4-ethernet port adsl/adsl2+ wifi cpe
Hide thumbs

Advertisement

Quick Links

Download this manual
1. Install AW4042U
Back Panel

Quick Installation Guide

4-Ethernet Port ADSL/ADSL2+ WiFi CPE

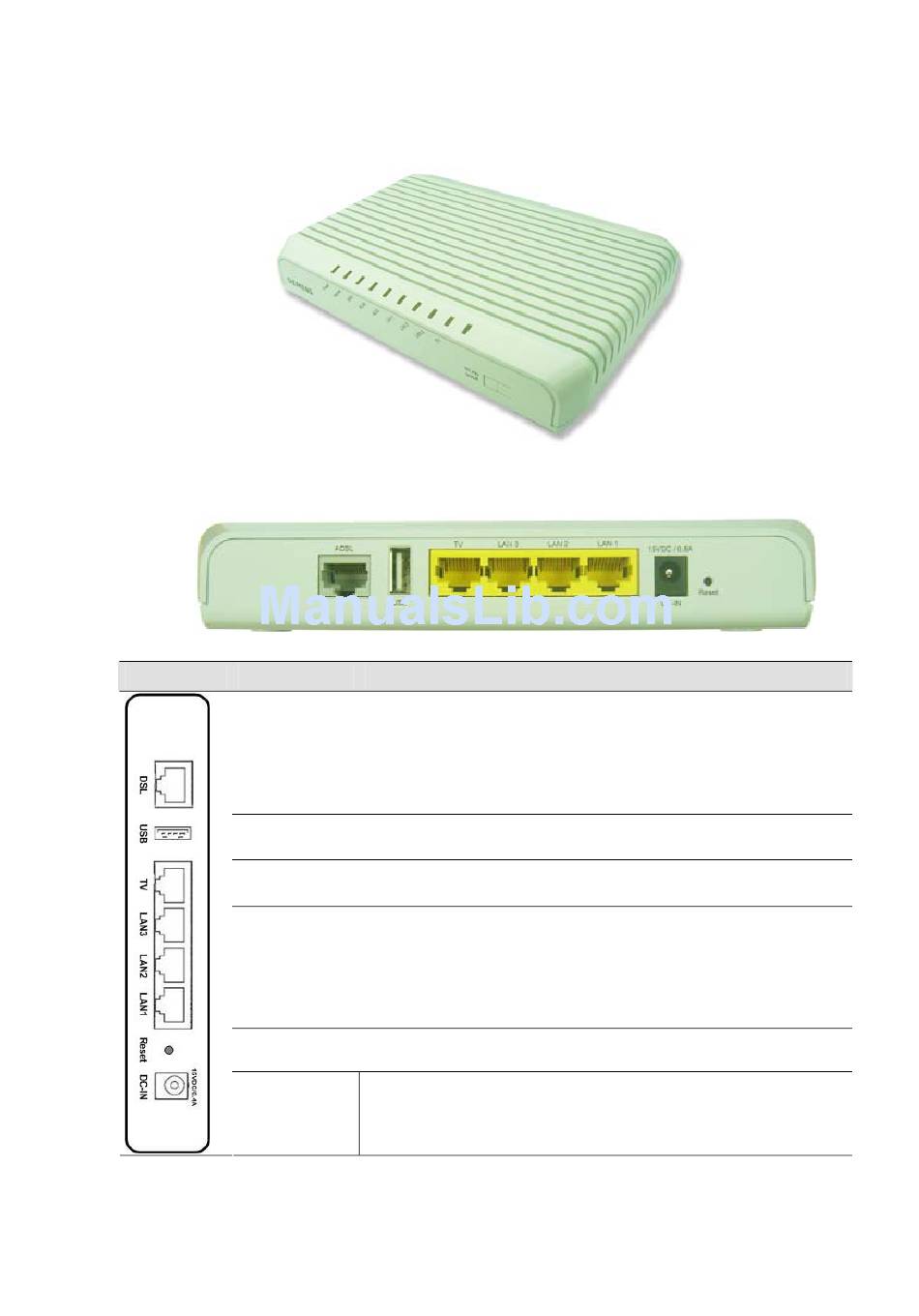

Fig. 1.1 the Back Panel of AW4042U
Label
Function
DSL
RJ-45 connector: WAN interface to connect DSL line
USB 2.0 connector: for printer and ext. Memory support
USB
TV
RJ-45 connector: Connect to the PC Ethernet port, or to STB
LAN 1- 3
RJ-45 connector: Connect to the PC Ethernet port.
Reset button: Reset AW4042U to factory default setting.
RST
DC-IN
Connect to the supplied power converter cable
Table 1.1 Illustration of AW4042U Back Panel
AW4042U
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the AW4042U and is the answer not in the manual?

Questions and answers

Related Manuals for TECOM AW4042U

Summary of Contents for TECOM AW4042U

  • Page 1: Quick Installation Guide

    RJ-45 connector: Connect to the PC Ethernet port, or to STB LAN 1- 3 RJ-45 connector: Connect to the PC Ethernet port. Reset button: Reset AW4042U to factory default setting. DC-IN Connect to the supplied power converter cable Table 1.1 Illustration of AW4042U Back Panel...
  • Page 2 Front Panel There are 8 LEDs on the front panel which indicate the status of AW4042U showing as below: Fig. 1.2 the Front Panel of AW4042U Label Color Signalling Function Flashing System start-up Green Lighted Active connection POWER Power-off / General MODEM error...
  • Page 3 Figure 1.3. Overview of Hardware Connections 2. Login to AW4042U through web browser I. Configure your PC IP address as 192.168.1.x within the same subnet as AW4042U (AW4042U default IP is 192.168.1.1) and subnet mask (default is 255.255.255.0). II. Connect AW4042U with PC through an Ethernet cable.
  • Page 4 Enter the management Username/Password and click the OK button (The default Username/Password is admin/admin). The first page will show the first page of Quick Setup. Follow the instructions to configure the AW4042U. 3. Quick Setup Set up ATM PVC and QoS...
  • Page 5 III. Enable/Disable Bridging Service Configure LAN IP Address and Subnet Mask - 5 -...
  • Page 6 Setup the Wireless LAN - 6 -...
  • Page 7 Save & Reboot - 7 -...
  • Page 8 To connect USB devices, the IAD provides an USB 2.0 port. Print Server AW4042U includes a print server that allows connecting one printer via USB. All PCs of the IAD have access to these printers. Go to Advanced Setup – Print Server to Enable Print Server Service...
  • Page 9 AW4042U provides a file server utility, allowing you to manage (read/write/delete) files on a Network Attached Storage (NAS, i.e. hard disc or memory stick). AW4042U supports external hard discs up to a maximum of 5V/500mA which is 2.5W. When a hard disc needs more power, then this hard disc needs an own power supply.
  • Page 10 6. Change Password Click “Management-> Access Control->Passwords”, input the data and click “Save/ Apply” Fig. 6.1 Access Control--Passwords 9. Wireless Click “Wireless”, input the data and click “Save/ Apply” as Figure 9.1 Wireless -- Basic Figure 9.1 Wireless – Basic - 10 -...

  • Page 11: Federal Communication Commission Interference Statement

    Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
