- Page 1 IG7500 Administration Manual Copyright © 2012 TECOM Co., Ltd. All Rights Reserved. Page 1 of 37...
- Page 2 IG7500 Administration Manual Environment The equipment you have purchased must not be disposed of with household waste. You should return these to your distributor if they are to replace or dispose of them in an approved recycling centre. FCC Statement...
- Page 3 Electrical Powering: The IG7500 can be powered with correct power adaptor, the power adaptor must be 12V/1.5A. Any damage caused to the IG7500 as a result of using unsupported power adaptors will not be covered by the manufacturer’s warranty.
-
Page 4: Table Of Contents
IG7500 Administration Manual Table Of Contents Introduction ............................ 6 Getting to Know the IG7500 ......................7 2.1 Front Panel..........................7 2.2 Rear Panel..........................8 General Features ........................... 9 3.1. FXS Application ......................9 3.1.1 Make an outbound call......................9 3.1.2 Receive an inbound call ...................... 9 3.1.3 Fax/Modem........................ - Page 5 IG7500 Administration Manual 4.8 Diagnostics..........................34 4.9 Logout ............................34 Appendix 1: Product Summary ......................35 Page 5 of 37...
-
Page 6: Introduction
IG7500 Administration Manual Introduction The IG7500 Gateway supports a FXS port and a FXO port, both have a separate SIP account assigned to register to remote SIP Sever. The IG7500 also support IP networking systems. The IG7500 design is designed for hosted IP providers that want to provide fax services, support PSTN failover, and managed WLAN for the customers. -
Page 7: Getting To Know The Ig7500

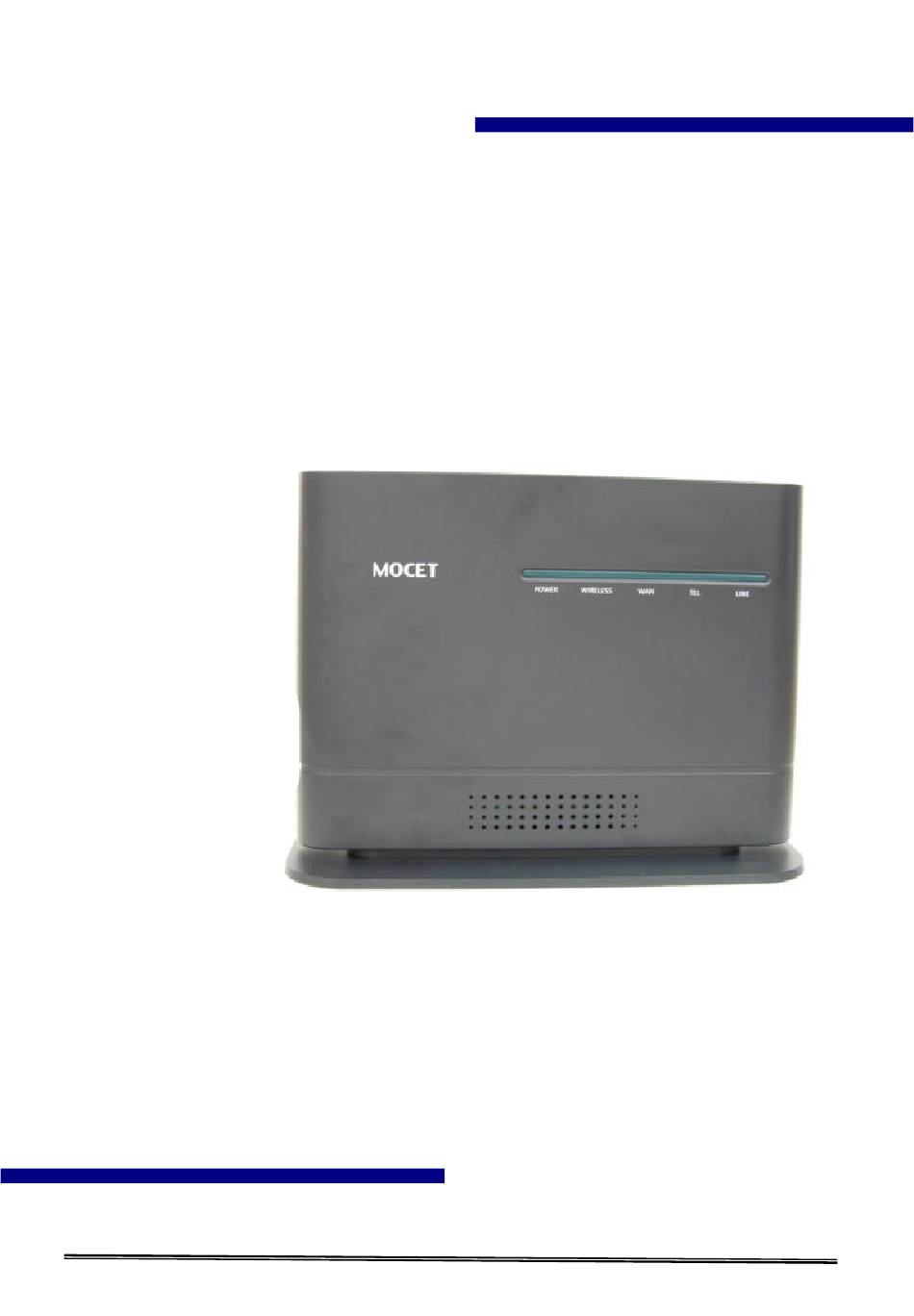

IG7500 Administration Manual Getting to Know the IG7500 2.1 Front Panel The front panel contains several LEDs that indicate the status of the IG7500. Figure 2-1. Front Panel of IG7500 LED Name Color Status Description POWER Blue Power On Power off... -
Page 8: Rear Panel
IG7500 Administration Manual 2.2 Rear Panel The rear panel contains the ports for the IG7500's data and power connections. Figure 2-2. Rear Panel of IG7500 Label Function Line RJ-11 connector: Connects the device to your PSTN lines. RJ-11 connector: Connects the device to your analog phone. -
Page 9: General Features
When the caller on the IP line hears the PSTN dial tone, dials a phone number to form the PSTN call. 3.2.2 Receive a call from PSTN line If the FXO IP account registers well, IG7500 makes the IP call to the specified phone Page 9 of 37... -
Page 10: Call Abandon
FXS phone. 3.2.3 Call Abandon For PSTN call, IG7500 provides the facility to monitor the call status. If the remote party hangs up, the ongoing call will be terminated. The PSTN line monitor is accomplished through monitoring the loop-break signal, polarity reversal or busy tone. -
Page 11: Pstn Backup
IG7500 Administration Manual IG7500 also provide Caller ID Generation to the Caller ID equipped Single Line Telephone. 3.4.2 PSTN Backup In case of power failure, IG7500 automatically switches the first PSTN line to the Single-line analog phone. - 11 -... -
Page 12: Configuration
Connect the IG7500 to PC. The default LAN IP of the IG7500 is 192.168.1.1. The default WAN IP of the IG7500 depends on upper router’ s DHCP server. For web login, the default user name is “admin1234”, the default password is “123456”. - Page 13 IG7500 Administration Manual Wireless Mobile Network Voice Management Diagnostics Logout Figure 4-2. Device Info - Summery - 13 -...
-
Page 14: Device Info
IG7500 Administration Manual 4.3 Device Info This information reflects the current Status of IG7500 connection. It includes the following topics: Summary Statistics Route DHCP 4.3.1 Summary In the page (Figure 4-2) you can get the information reflects the current software version and connection status. -
Page 15: Route
IG7500 Administration Manual Figure 4-4. Device Info – Statistics – WAN 4.3.3 Route In this page you can get the IP route information of the device. (Figure 4-5) Figure 4-5. Device Info – Route 4.3.4 ARP This page shows an ARP table which maps IP network addresses to hardware addresses used by data link level protocol. -
Page 16: Dhcp
IG7500 Administration Manual 4.3.5 DHCP This page shows a DHCP Leases table which shows the all used IP addresses under IG7500’s DHCP Server. (Figure 4 -7) Figure 4-7. Device Info – DHCP - 16 -... -
Page 17: Advanced Setup
Figure 4-8. Advanced – LAN 4.4.2 WAN There are two modes that you can give WAN IP address to IG7500: Static IP mode and DHCP mode. You can also enable or disable Firewall. Network Address Translation (NAT) allows you to share one public WAN IP address for multiple computers on your LAN side. -
Page 18: Nat
IG7500 Administration Manual Figure 4-9. Advanced – WAN (Static IP Mode) The Dynamic Host Configuration Protocol (DHCP) is an Internet protocol for automating the configuration of computers that use TCP/IP. DHCP can be used to automatically assign IP addresses, to deliver TCP/IP stack configuration parameters such as the subnet mask and default router, and to provide other configuration information. -
Page 19: Quality Of Service
Advanced – NAT – Virtual Servers 4.4.3.2 DMZ Host IG7500 will forward IP packets that do not belong to any of the applications configured in the Virtual Servers table to the DMZ host computer. Enter the computer's IP address and click "Save Settings"... -
Page 20: Bandwidth Control
The Dynamic DNS service allows you to alias a register domain name to a dynamic IP address. It allows IG7500 to be more easily accessed from various locations on the Internet. Click “Add” or “Remove” to configure Dynamic DNS. (Figure 4-15) - Page 21 Now IG7500 support for two DDNS provider, DynDNS.org and TZO. Specify the register hostname and choose the related interface. Fill in the username/password or email/key and click “Apply/Save”. IG7500 will update the current IP with DDNS provider when click “Apply/Save ” or system reboot successfully. IG7500 will also update the current IP automatically with DDNS provider in the programmed Update Cycle.
- Page 22 IG7500 Administration Manual Figure 4-17. Advanced – Dynamic DNS – TZO - 22 -...
-
Page 23: Wireless
IG7500 Administration Manual 4.5 Wireless Use the Wireless screen to configure the IG7500 for wireless access. It is separated into 7 parts: Basic Primary Security Advanced Station Info Power Saving The configurable items for each part would be described in the following. -
Page 24: Advanced
IG7500 Administration Manual Figure 4-19. Wireless – Security 4.5.3 Advanced It allows you to configure advanced features of the wireless LAN interface. You can select a particular channel on which to operate, force the transmission rate to a particular speed,... - Page 25 IG7500 Administration Manual Figure 4-20. Wireless – Advanced - 25 -...
-
Page 26: Voice
IG7500 Administration Manual 4.6 Voice Use the Voice screen to configure the IG7500’ s voice related parameters. It allows system administrator to configure the following topics: Extension Transmission The configurable items for each part would be described in the following. -
Page 27: Transmission
Outbound Registrar Port: The SIP signal port of uplink outbound registrar server. Register Expires: It’ s the time for IG7500 sends REGISTER to uplink register server. It counts based on second. - Page 28 RFC2833 Payload: It’s used as the default RFC2833 payload type when making the outbound calls. DTMF Type: In IG7500, there are two methods for transmitting DTMF tone. Select RFC2833 Method, the DTMF tone will be transmitted by event packet. Select SIP -INFO Method, the DTMF tone will be represent in SIP INFO Message.
- Page 29 Ring Abandon Time: It specifies the maximum time between valid ring signals from the CO/PBX. If the duration between rings exceed the Ring Abandon time, IG7500 stops ringing the destination(s) and the port returns to idle. The timer range is 1 to 10 seconds on 1 second increments.
-
Page 30: Management
4.7.1.1 Backup Click “Backup Settings”, you may save your IG7500’ s configurations to a file on your PC. The backup file is a compress file (.tar). It includes the internal System Configuration file, (Figure 4-25) Figure 4-25. -
Page 31: Access Control
Administrator has unrestricted access to change and view configuration of your IG7500. The Support is used to allow an ISP technician to access your IG7500 for maintenance and to run diagnostics. The User can access the IG7500, view configuration settings and statistics, as well as, update the router’... -
Page 32: System Log
This item allows you to configure system’ s time and the Daylight Saving Time. 4.7.4.1 Internet Time This page allows you to configure the Internet time setting. IG7500 sync hronize its system time with NTP time server automatically (Figure 4-31). -
Page 33: Update Software
Management – Update Software 4.7.6 Reboot Figure 4-33. Management – Save/Reboot Click “Reboot” to reboot the IG7500. The IG7500 would automatically save the configuration before reboot, so that modified settings would take effect after reboot. (Figure 4-33) - 33 -... -
Page 34: Diagnostics
For Refresh Mode, if user select automatically refresh, the web page will automatically refresh for every 20 seconds. Click “Disconnect” button will allow you release the selected trunk line or rescue the blocked one. 4.9 Logout Press “Logout”, you can logout the IG7500 web configuration page. - 34 -... -
Page 35: Appendix 1: Product Summary
IG7500 Administration Manual Appendix 1: Product Summary Hardware n 1 FXO port (PSTN) n 1 FXS Port (fax) n 1 10/100/1000 Ethernet WAN port n 4 10/100 Ethernet LAN ports n 802.11n access point n 3 USB 2.0 host ports... - Page 36 IG7500 Administration Manual n Priority queues for upstream traffic based on ToS field. n Bandwidth Control n 3G HSDPA dongles for WAN backup and 3G interface n Bandrich, Huawei, ZTE and D-Link dongles will be supported by default, other dongles will be supported upon request...
- Page 37 IG7500 Administration Manual n Syslog n Device Diagnostic, Enable remote test following : Test the connection to your local network, The connection to your Internet service provider, The status of PSTN Line, The status of FXS Power Requirement n Input : Voltage Range 90~264 VAC n Output : 12VDC / 1 .5A...
