Maintenance

Dual Drive Wheels, Install

NOTE: Some lift trucks can have dual drive wheels. The
following procedures describe the steps to install the dual
sets of wheels.
1. See Figure 56. Install the inner wheel on the hub.
Tighten the nuts to a torque of 450 to 500 N•m (332 to
369 lbf ft) for the drive wheel nuts and 155 to 175 N•m (114
to 129 lbf ft) for steer wheel nuts. If two-piece wheels are
installed, make sure the nuts that fasten the rim halves
together are toward the brake drum when they are instal-
led.
2. Install the spacer to the axle shaft. Tighten the nuts to
98 N•m (72 lbf ft).
3. Install the outer wheel on the spacer. Tighten the nuts to
a torque of 450 to 500 N•m (332 to 369 lbf ft) for the drive
wheel nuts and 155 to 175 N•m (114 to 129 lbf ft) for steer
wheel nuts. If the wheels are the two-piece rims, make sure
the nuts that fasten the rim halves together are toward the
brake drum when they are installed.
210

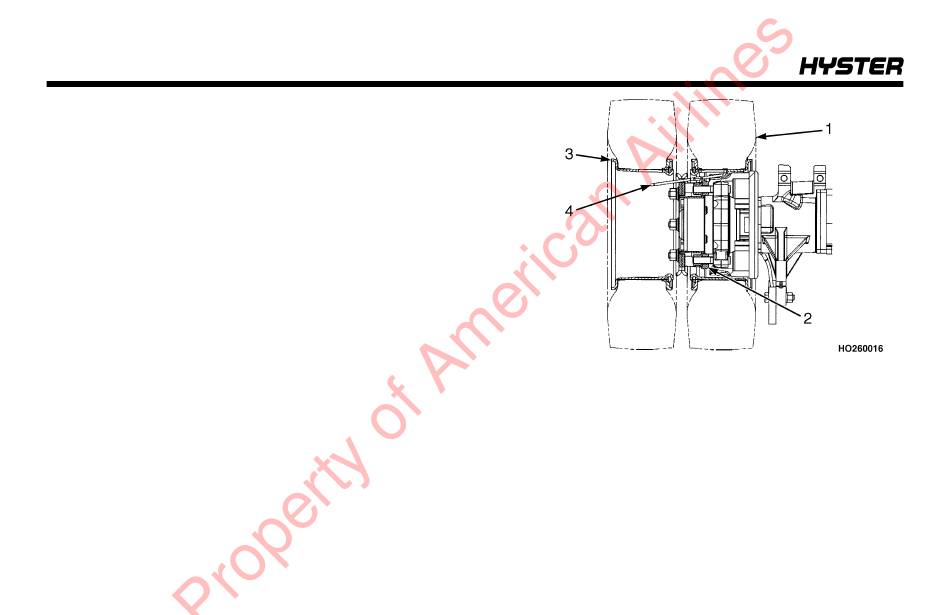

1. INNER WHEEL
2. ADAPTER ASSEMBLY
3. OUTER WHEEL
4. EXTENSION, AIR VALVE
Figure 56. Dual Drive Wheels Installation
