Section 5 - Performance Curves; A2T Plastic Rubber-Fitted (T-Series Center Section); A2T Plastic Ptfe-Fitted (T-Series Center Section) - Wilden A2 Original Plastic Series Manual

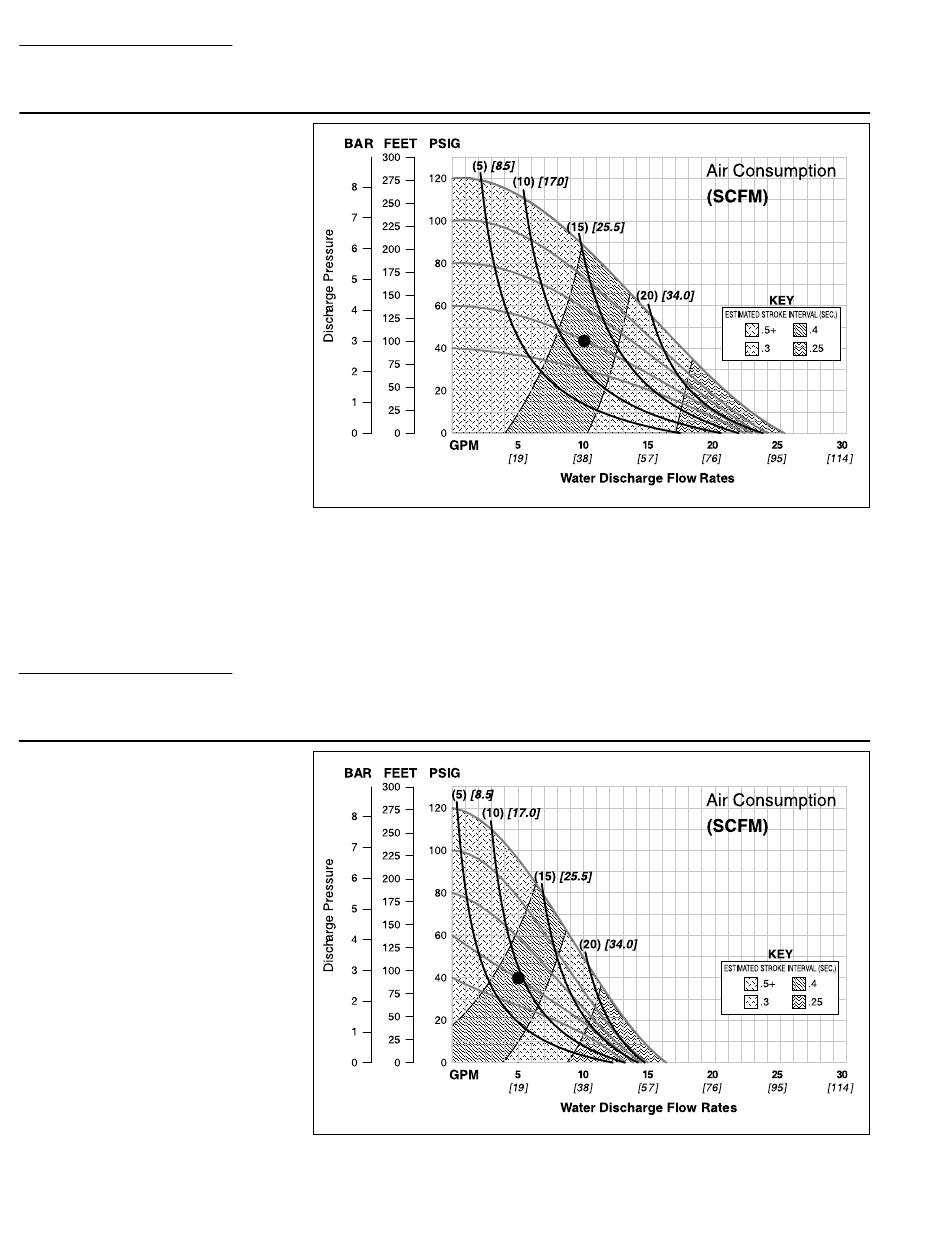

SECTION 5A
PERFORMANCE CURVES
A2T PLASTIC RUBBER-FITTED
Height .................................. 335 mm (13.2")
Width ................................... 297 mm (11.7")
Depth .................................... 239 mm (9.4")
Est. Ship Weight ..........Polypropylene 8 kg (18 lbs)
PVDF 10 kg (23 lbs)
Air Inlet ......................................6 mm (1/4")
Inlet ............................................ 25 mm (1")
Outlet ......................................... 25 mm (1")
Suction Lift ....................... 4.5 m Dry ( 14.7')
9.3 m Wet ( 30.6')
Displacement per
Stroke ......................... 0.06 l (0.015 gal.)
Max. Flow Rate ................... 95 lpm (25 gpm)
Max. Size Solids .....................3.2 mm (1/8")
1 Displacement per stroke was calculated at 4.8 bar
(70 psig) air inlet pressure against a 2 bar (30 psig)
head pressure.
Example: To pump 37.9 lpm (10 gpm)
against a discharge pressure head of 3.0 bar
(44 psig) requires 4.1 bar (60 psig) and 20.4
3
Nm /h (12.0 scfm) air consumption. (See dot
on chart.)
Caution: Do not exceed 8.6 bar (125 psig) air
supply pressure.
SECTION 5B
PERFORMANCE CURVES
A2T PLASTIC PTFE-FITTED
Height .................................. 335 mm (13.2")
Width ................................... 297 mm (11.7")
Depth .................................... 239 mm (9.4")
Est. Ship Weight ..........Polypropylene 8 kg (18 lbs)
PVDF 10 kg (23 lbs)
Air Inlet ......................................6 mm (1/4")
Inlet ............................................ 25 mm (1")
Outlet ......................................... 25 mm (1")
Suction Lift ....................... 3.5 m Dry ( 11.3')
9.3 m Wet ( 30.6')
Displacement per
Stroke ......................... 0.05 l (0.014 gal.)
Max. Flow Rate ................... 61 lpm (16 gpm)
Max. Size Solids .....................3.2 mm (1/8")
1 Displacement per stroke was calculated at 4.8 bar
(70 psig) air inlet pressure against a 2 bar (30 psig)
head pressure.
Example: To pump 18.95 lpm (5 gpm)
against a discharge pressure head of 2.8
bar (40 psig) requires 4.1 bar (60 psig) and
3
15.3 Nm /h (9 scfm) air consumption. (See
dot on chart.)
Caution: Do not exceed 8.6 bar (125 psig) air
supply pressure.
WILDEN PUMP & ENGINEERING, LLC
1
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily operation parameters
will fall in the center of the pump performance curve.
1
Flow rates indicated on chart were determined by pumping water.
For optimum life and performance, pumps should be specified so that daily operation parameters
will fall in the center of the pump performance curve.
[LPM]
[LPM]
6
3
[Nm /h]
[Nm 3 /h]
WIL-10070-E-03
