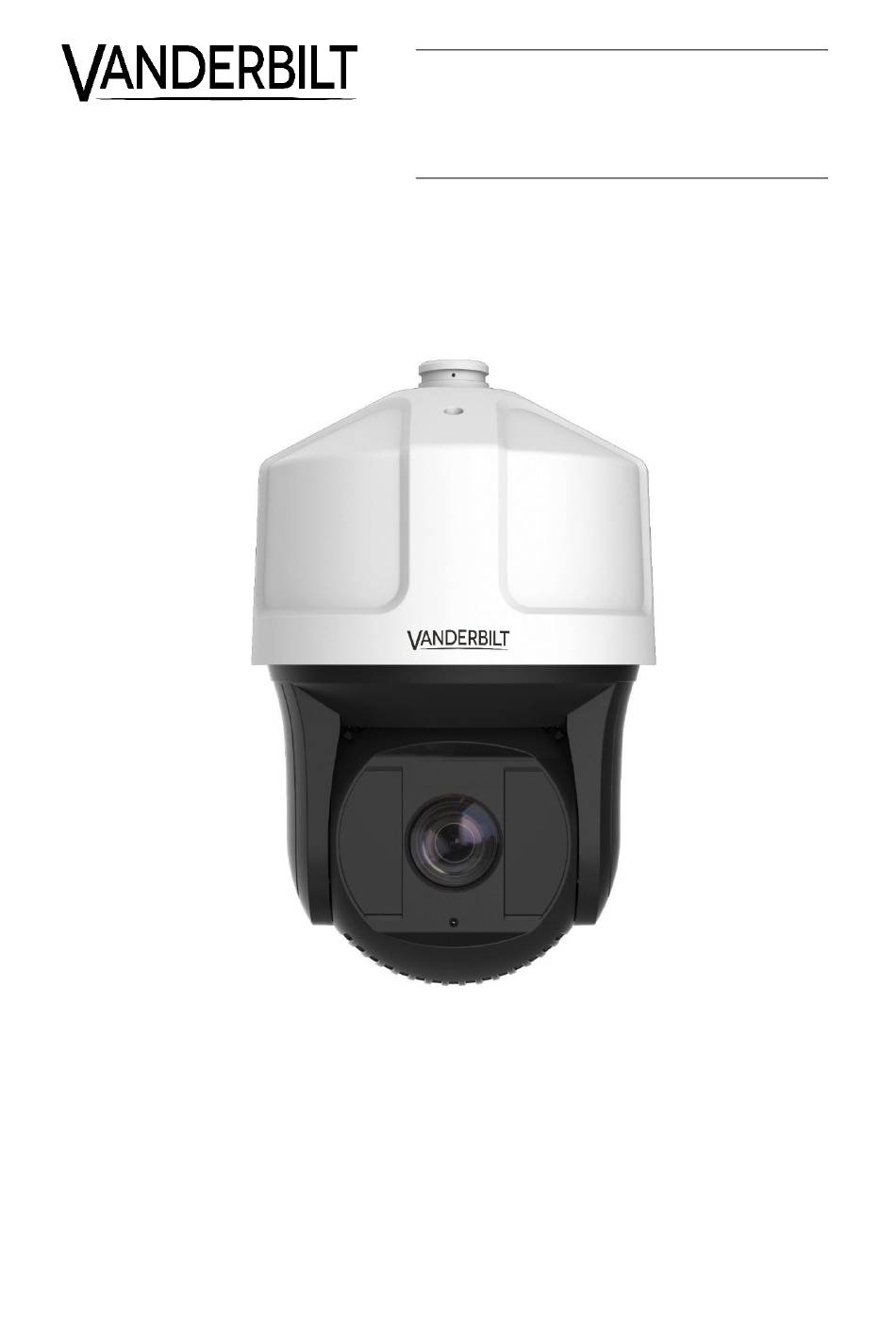

- Page 1 IP 2MP Speed Dome 23x Eventys CCDM2010-OIRD Quick start guide Document ID: C-301501 Edition: 01.05.2017...
- Page 2 Copyright Technical specifications and availability subject to change without notice. © Vanderbilt 2017 We reserve all rights in this document and in the subject thereof. By acceptance of the document the recipient acknowledges these rights and undertakes not to publish the document nor the subject thereof in full or in part, nor to make them available to any third party without our prior express written authorization, nor to use it for any purpose other than for which it was delivered to him.
-
Page 3: Table Of Contents
Setting the Dome over the LAN ........................... 16 Wiring..............................16 Activating the Speed Dome ........................16 Activation via Web Browser ........................17 Activation via Eventys IP Search Tool ....................18 Modifying the IP Address ........................19 Accessing by Web Browser ..........................20 © Vanderbilt 2017... -
Page 4: About This Manual
JURISDICTION BEFORE USING THIS PRODUCT IN ORDER TO ENSURE THAT YOUR USE CONFORMS THE APPLICABLE LAW. OUR COMPANY SHALL NOT BE LIABLE IN THE EVENT THAT THIS PRODUCT IS USED WITH ILLEGITIMATE PURPOSES. IN THE EVENT OF ANY CONFLICTS BETWEEN THIS MANUAL AND THE APPLICABLE LAW, THE LATER PREVAILS. © Vanderbilt 2017... - Page 5 The battery is marked with this symbol, which may include lettering to indicate cadmium (Cd), lead (Pb), or mercury (Hg). For proper recycling, return the battery to your supplier or to a designated collection point. For more information see: www.recyclethis.info © Vanderbilt 2017...
- Page 6 Ensure environmental conditions meet factory specifications. • Ensure unit is properly secured to a rack or shelf. Major shocks or jolts to the unit as a result of dropping it may cause damage to the sensitive electronics within the unit. © Vanderbilt 2017...
- Page 7 CCMD2010 VPMJB, Vertical pole mount with junction box N54561-M118-A100 CCMD2010-WMJB, Wall mount with junction box N54561-M119-A100 CCMD2010-GM Gooseneck mount N54561-M120-A100 CCMD2010-PM Pendant mount N54561-M121-A100 CCMD2010-PML, Pendant mount long N54561-M122-A100 CCMD2010-CMA, Ceiling mount N54561-M123-A100 CCMD2010-PWM, Parapet wall mount © Vanderbilt 2017...
- Page 8 The symbols that may be found in this document are defined as follows. Symbol Description Indicates a potentially hazardous situation, which if not avoided, could result in equipment damage, data loss, performance degradation, or unexpected results. Provides additional information to emphasize or supplement important points of the main text. © Vanderbilt 2017...
-
Page 9: Overview
Overview of IP 2MP Speed Dome 23x Figure 2-1 Cable Interface of CCMD2010-OIRD Table 2-1 Descriptions of Cable Interface Description Network Cable Video Cable Alarm Out Audio Cable Alarm In RS-485 Power Cable SD Card Slot Head Cover © Vanderbilt 2017... -
Page 10: Installation
Make sure that there is no reflective surface too close to the lens. The IR light from the speed dome ● may reflect back into the lens causing reflection. Do not drag the speed dome with its waterproof cables as shown below, otherwise the waterproof performance is affected. Figure 3-1 Do not drag the cables © Vanderbilt 2017... -
Page 11: Wall Mounting
1 Remove the protective sticker. Protective Sticker Figure 3-2 Remove Protective sticker 2 Remove the cover on the back of the speed dome. Insert the SD card to the SD card slot and install the cover back. © Vanderbilt 2017... - Page 12 4 Apply thread tape to the thread of the head cover and rotate the head cover to the bracket. Secure the head cover to the bracket with set screws (supplied). Figure 3-5 Secure the Head Cover 5 Buckle the handle to the safety rope. © Vanderbilt 2017...
- Page 13 6 Hook the two ends of the safety rope to the back box of the speed dome and the bracket respectively. 7 Hitch the speed dome onto the head cover with the hook on the back box. Figure 3-7 Hang the Speed Dome © Vanderbilt 2017...
- Page 14 10 Remove the protective film of the IR or laser light after you finish installing. • The bracket in Figure 3-4 is the recommended bracket for this series of speed dome, and a pendent adapter is required if any other bracket is selected. © Vanderbilt 2017...
- Page 15 Figure 3-10Pendent Adapter © Vanderbilt 2017...
-
Page 16: Setting The Dome Over The Lan
In the following sections, activation via web browser and Eventys IP Search Tool will be taken as examples. You may refer to the user manual of the speed dome for the details of activation via client software. © Vanderbilt 2017... -
Page 17: Activation Via Web Browser
4 Confirm the password. 5 Click OK to save the password and enter the live view interface. © Vanderbilt 2017... -
Page 18: Activation Via Eventys Ip Search Tool
4 Click OK to save the password. You can check whether the activation is completed on the popup window. If activation failed, please make sure that the password meets the requirement and try again. © Vanderbilt 2017... -
Page 19: Modifying The Ip Address
Figure 4-4 Modify the IP Address 4 Input the password to activate your IP address modification. Eventys IP Search Tool supports the batch IP address modification. Please refer to the User Manual of Eventys IP Search Tool for details. © Vanderbilt 2017... -
Page 20: Accessing By Web Browser
2 Install the plug-in before viewing the live video and managing the camera. Please follow the installation prompts to install the plug-in. Note: You may have to close the web browser to finish the installation of the plug-in. © Vanderbilt 2017... - Page 21 Figure 5-2 Download Plug-in 3 Reopen the web browser after the installation of the plug-in and repeat steps 2 to 4 to login. Note: For detailed instructions of further configuration, please refer to the user manual of network camera © Vanderbilt 2017...
- Page 22 Issued by Vanderbilt © Vanderbilt 2017 Clonshaugh Business and Technology Park Data and design subject to change without notice Clonshaugh Supply subject to availability Dublin 17 Document no.: C-301501 Ireland Document version: 1.0 D17 KV84 Edition: 01.05.2017 www.vanderbiltindustries.com...
