Vanderbilt CCMS2010-IR Quick Installation Manual

2 megapixel compact ip camera with ir illumination (poe)

Table of Contents

Download this manual

This guide outlines the most important information regarding the installation of the camera. For instructions regarding the configuration and further

mounting options please refer to the User manual on CD.

CCMS2010-IR

2 Megapixel Compact IP Camera with

IR illumination (PoE)

Quick Installation Guide

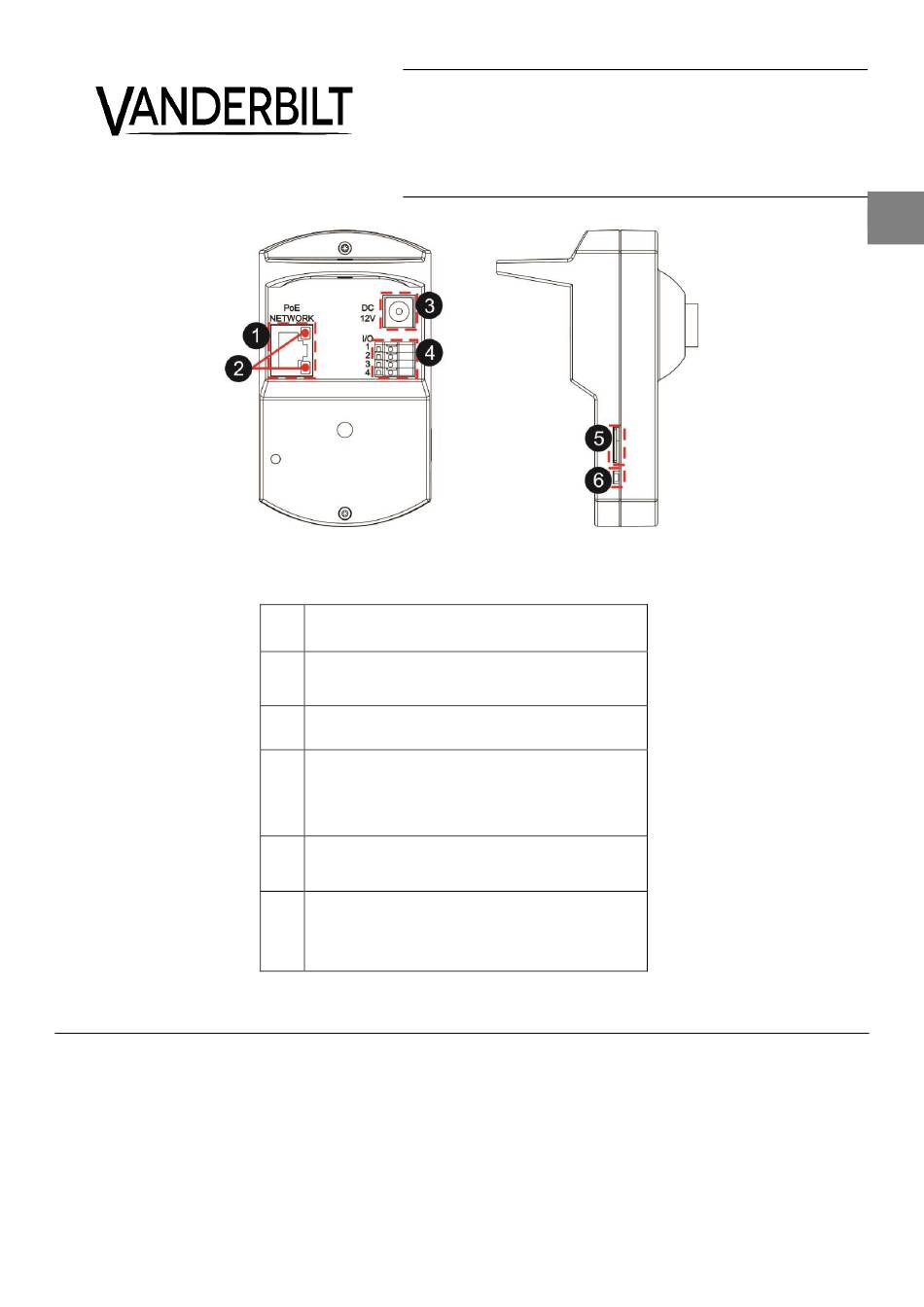

PoE Network

For Ethernet cable and PSE connection

Network connection and activity indication

For power connection

Alarm Output +

Alarm Output –

Alarm Input +

Alarm Input −

For videos and snapshots storage

Press the button with a proper tool for at least 20 seconds

to restore the system.

Table of Contents

Do you have a question about the CCMS2010-IR and is the answer not in the manual?

Page 1 CCMS2010-IR 2 Megapixel Compact IP Camera with IR illumination (PoE) Quick Installation Guide PoE Network For Ethernet cable and PSE connection Network LEDs Network connection and activity indication DC 12V Connector For power connection Alarm I/O Alarm Output + Alarm Output –...
Page 2 CCMS2010-IR, 2 Megapixel Compact IP Camera with IR illumination (PoE) NOTE: If PoE is used, make sure Power Sourcing Package contents Technical data Equipment (PSE) is used in the network.  IP compact Camera (PoE) Step 2: Ethernet Cable Connection 1/2.7”...
Page 3 CCMS2010-IR, 2 Megapixel Compact IP Camera with IR illumination (PoE) Dimension (without 96.51 x 56.00 x 61.40 mm bracket) Weight 120 g Power Source PoE / DC 12V Power <4W Consumption Approvals Disposal All electrical and electronic products should be disposed of separately from...
Page 4 CCMS2010-IR, 2 Megapixel Compact IP Camera with IR illumination (PoE) Issued by Vanderbilt © Vanderbilt 2016 Clonshaugh Business and Technology Park Data and design subject to change without notice Clonshaugh Supply subject to availability Dublin 17 Document no.: C-300965 Ireland Document version: 2.0...
