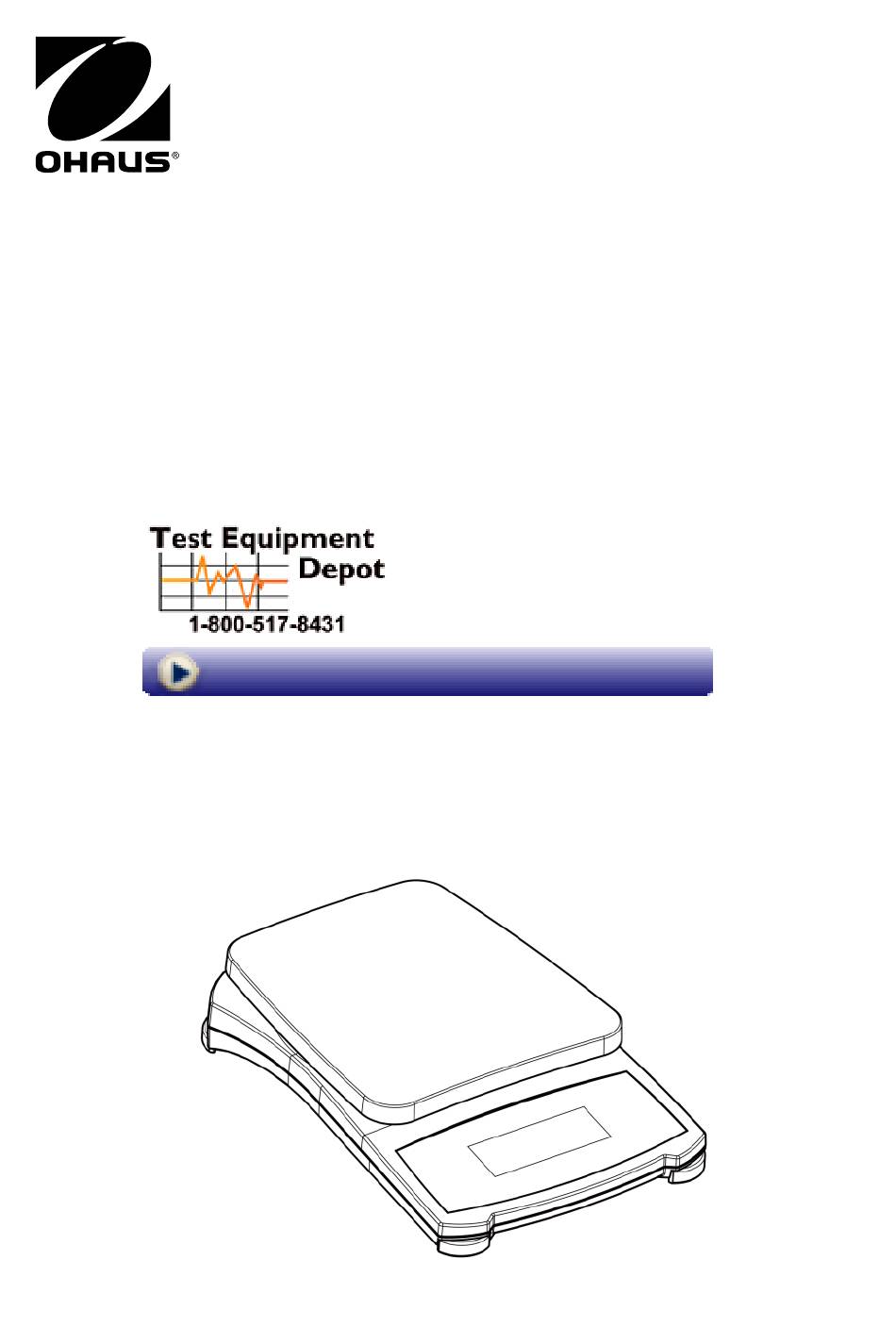

- Page 1 Compass CX Series Instruction Manual 99 Washington Street Melrose, MA 02176 Phone 781-665-1400 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com...
- Page 3 Compass CX Series Scales EN-1 1. INTRODUCTION This manual contains installation and operation instructions for the Compass Series Scales. Please read the manual completely before using the scale. 1.1 Safety Precautions Please follow these safety precautions: Verify that the AC Adapter input voltage matches the local AC power supply. ...
-
Page 4: Installation
EN-2 Compass CX Series Scales 2. INSTALLATION 2.1 Transportation Protection (0.1g model only) Remove the plastic transportation protective insert for use. Save the plastic insert to ensure safe transport. 2.2 Power Power the scale using the AC power adapter (not included) or 3 AA batteries. Battery Installation Remove the battery cover on the bottom of the scale and place the 3 “AA”... -
Page 5: Operation
Compass CX Series Scales EN-3 3. OPERATION 3.1 Two Button Keypad : Pressing this button turns on the scale. This same button operates the zero feature when the scale is on. Press and hold this button for three seconds to turn the scale off. ... -
Page 6: Service Information
. Press to return to current weighing mode. 4. SERVICE INFORMATION If the troubleshooting section does not resolve your problem, contact an Authorized OHAUS Service Agent. Please visit our website www.ohaus.com to locate the OHAUS office nearest you. -
Page 7: Technical Data
Compass CX Series Scales EN-5 5. TECHNICAL DATA 5.1 Specifications TABLE 5-1. SPECIFICATIONS. Model CX221 CX621 CX1201 CX2200 CX5200 Capacity (g) 1200 2200 5200 Readability (g) Repeatability (Std. Dev.) (g) Linearity (g) Span Calibration Mass 200 g 500 g 1 kg 1 kg 2 kg Stabilization Time (s) - Page 8 Thank you for your contribution to environmental protection. For disposal instructions in Europe, refer to www.ohaus.com/weee. FCC Note This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
-
Page 9: Limited Warranty
During the warranty period OHAUS will repair, or, at its option, replace any component(s) that proves to be defective at no charge, provided that the product is returned, freight prepaid, to OHAUS. - Page 10 Toll Free 1-800-517-8431 Visit us at www.TestEquipmentDepot.com *30467754* P/N 30467754 B © OHAUS Corporation 2018, all rights reserved / todos los derechos reservados / tous droits réservés / Alle Rechte vorbehalten / tutti i diritti riservati Printed in China / Impreso en la China / Imprimé en Chine / Gedruckt in China /...
