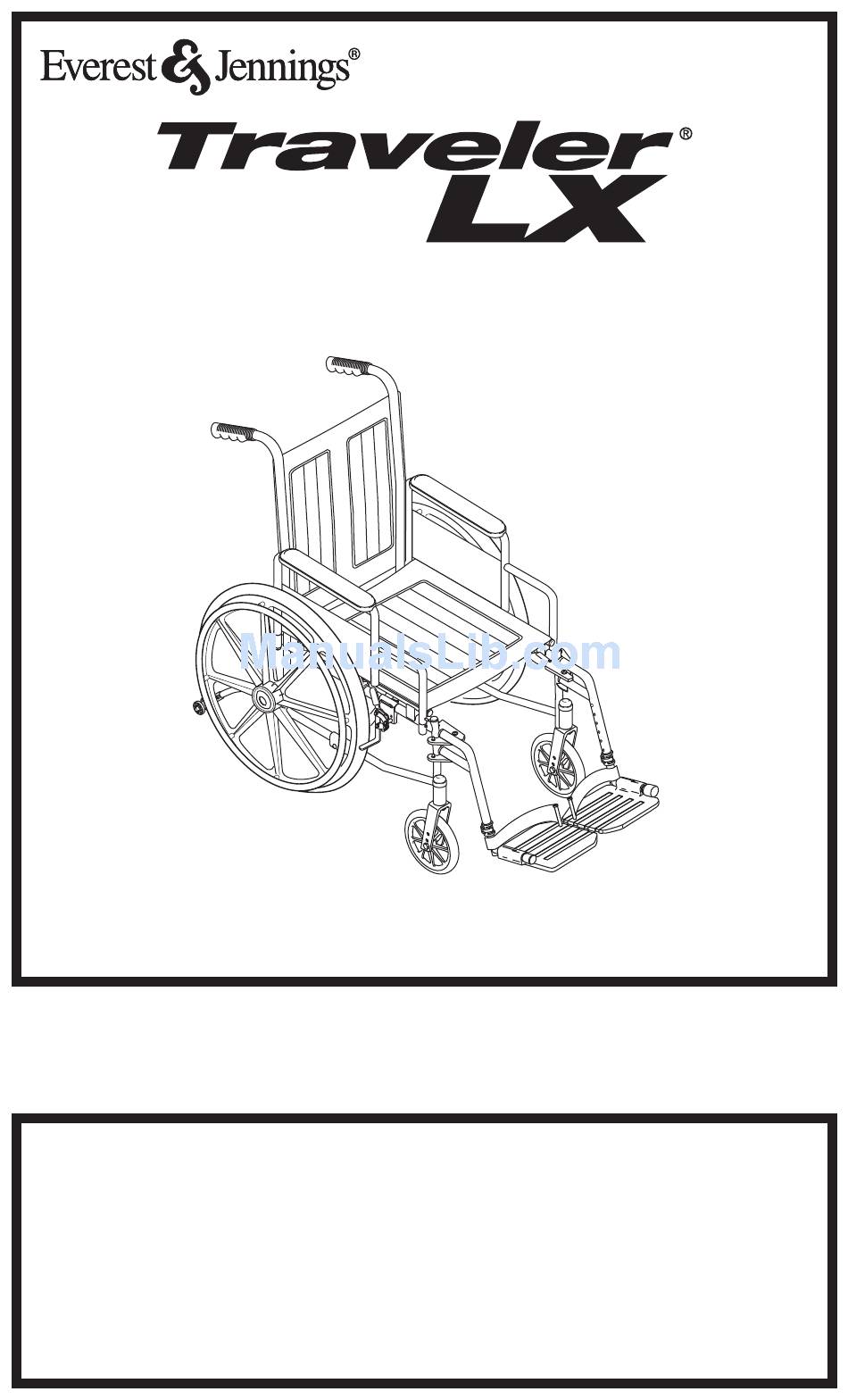

Manual Wheelchair

User Manual

3E02-INS-LAB-RevA14
© 2014 GF Health Products, Inc.
Read this manual before operating
your wheelchair.
Save this manual for future use.
The most current version of this manual can
be found online at www.grahamfield.com.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Traveler LX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Everest & Jennings Traveler LX

Summary of Contents for Everest & Jennings Traveler LX

  • Page 1: User Manual

    Manual Wheelchair User Manual 3E02-INS-LAB-RevA14 © 2014 GF Health Products, Inc. Read this manual before operating your wheelchair. Save this manual for future use. The most current version of this manual can be found online at www.grahamfield.com.

  • Page 2: Table Of Contents

    1 INTRODUCTION.................3 2 IMPORTANT SAFETY PRECAUTIONS ........5 3 GETTING STARTED ..............8 4 HANDLING TIPS ................9 5 ADJUSTMENTS ...............13 6 TRANSPORTING THE TRAVELER LX ........21 7 MAINTENANCE ...............23 8 TROUBLESHOOTING ...............28 9 LIMITED WARRANTY ..............29 10 INDEX ..................31 GF Health Products, Inc. is not responsible for typographical errors. All...

  • Page 3: Introduction

    Thank you for choosing an Everest & Jennings product. We at Graham-Field wish to assure you of our continuing commitment to provide innovation and quality in our products. The Traveler LX is a manual, folding wheelchair, suitable for frequent users who require a portable wheelchair, fitted to their anatomy, without the need of customization or alteration to the center of gravity.
  • Page 4 NOTICE: Indicates a potential hazard situation or unsafe practice that, if not avoided, could result in product or property damage. Info: Provides application recommendations or other useful information to ensure that you get the most from your product. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...

  • Page 5: Important Safety Precautions

    Protect yourself and your wheelchair by having your Traveler LX serviced regularly. Whenever any part of your Traveler LX is not functioning properly, contact your Graham-Field authorized distributor immediately, as a hazardous situation could result, causing personal injury or damage to your wheelchair.
  • Page 6 WARNING: Unauthorized modification or the use of non- Everest & Jennings replacement parts could change the structure of the wheelchair, void the warranty, and create a hazardous condition resulting in serious personal injury. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 7 WARNING: GF Health Products, Inc. specifically disclaims responsibility for any personal injury or property damage which may occur during any use which does not comply with federal, state, or local laws or ordinances. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...

  • Page 8: Getting Started

    Designs and specifications are subject to change without notice. back upholstery push handle/ back post armpad rear wheel seat upholstery footrest handrim anti-tipper wheel lock (optional) crossbrace footplate frame caster housing caster fork caster wheel 3E02-INS-LAB-RevA14 • Traveler LX User Manual...

  • Page 9: Handling Tips

    However, it is possible to tip the Traveler LX over if it is used improperly. We urge you to learn the characteristics of your wheelchair.
  • Page 10 3. Reach only as far as your arm will extend without changing your sitting position. If in doubt, reposition the wheelchair or ask for assistance. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 11 We recommend the use of gloves to reduce the effects of friction heat, but going slower is a better alternative. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 12 If you encounter steps and there is no ramp available, avoid the steps by utilizing the disabled designated elevators now required in most locations. WARNING: Never attempt to negotiate steps, stairs or escalators in your Traveler LX. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...

  • Page 13: Adjustments

    5 ADJUSTMENTS The Traveler LX offers several adjustments to make it easier and more comfortable to drive. Section 7, MAINTENANCE, offers preventive maintenance suggestions for keeping your wheelchair in excellent condition; ensure all components are in excellent condition before adjusting. The following are recommended methods; after a few adjustments, you may develop your own.
  • Page 14 ARMS All Traveler LX arms are removable. Remove arm 1. Depress lower arm right arm release pin until it unlocks. release pin 2. Hold arm by center of armpad. Lift straight up and off. Install arm Hold arm by center of armpad. Lower arm straight down into sockets front arm socket...
  • Page 15 2. Swing footrest inward. 3. Ensure swingaway release remove footrest (left shown) lever is locked in a rearward position, toward back of wheelchair. WARNING: Ensure footrests are locked in place before occupying or operating wheelchair. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 16 4. Repeat steps 1-3 for adjust length the other footplate extension. 5. Ensure both footplate extensions are securely fastened and minimum ground clearance is 2 inches. WARNING: Ensure footplates are securely fastened before occupying or operating wheelchair. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 17 3. Ensure legrest is locked in place and swingaway release lever is locked in a rearward position, toward back of wheelchair. WARNING: Ensure legrests are locked in place before occupying or operating wheelchair. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 18 1. To adjust panel, hold the panel and rotate it upward. 2. To return panel to position, hold the panel and rotate downward. The panel will stop at the proper position. WARNING: Ensure legrest panels are locked in place before occupying or operating wheelchair. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 19 (crossbraces should be loose enough to fold easily, yet snug enough to take up excess play). Use an M13 wrench and M6 hex key to tighten. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 20 5. Repeat steps 1-4 for other wheel lock. Tighten the adjustment bolts securely to eliminate wheel lock movement on frame. WARNING: Ensure wheel locks are adjusted so they lock in place appropriately before occupying or operating wheelchair. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...

  • Page 21: Transporting The Traveler Lx

    The Traveler LX can easily be transported by folding the wheelchair: 1. Detach front rigging from wheelchair. 2. Remove the seat cushion, if so equipped.
  • Page 22 4. Reinstall the seat cushion, if so equipped. WARNING: When reassembling the wheelchair, ensure seat frame has been opened completely. If not, wheelchair is unsafe to occupy. WARNING: Ensure footrests or legrests are locked in place before occupying or operating wheelchair. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...

  • Page 23: Maintenance

    Periodic inspection, adjustment, and replacement of worn parts will provide many years of superb performance. When you believe that a component or part of your Traveler LX is not functioning properly, contact your Graham-Field authorized distributor immediately, as a potentially hazardous condition could result.
  • Page 24 Contact your authorized distributor with any questions or concerns regarding the safe operation and maintenance of your wheelchair. Regular maintenance is essential for your safety and continued operation of your wheelchair. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 25 WARNING: When in use, anti-tippers must be installed in the downward position. Check handgrips Check handgrips at least once a week. Ensure that they are not ripped; ensure that they are tight and securely fastened. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 26 Check backposts at least once a month. Ensure that all mounting hardware is securely fastened and that the backposts are not bent or damaged. Contact your authorized distributor if you observe cracking or peeling paint or plating. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 27 Evaluate all threads, locking nuts and bearings. Check wheel bearings Have your Graham-Field authorized distributor check caster and rear wheel axle bearings at least every six months. 3E02-INS-LAB-RevA14 • Traveler LX User Manual...

  • Page 28: Troubleshooting

    8 TROUBLESHOOTING Continual use of your Traveler LX necessitates maintenance, especially if the factory-set adjustments have been altered. The following troubleshooting guide lists several common problems that may occur, and offers corrective actions for each. If you are unsure of the solution or unable to diagnose the problem, do not hesitate to ask your Graham-Field authorized distributor for assistance.

  • Page 29: Limited Warranty

    6) Any labor or shipping charges incurred in the replacement part installation or repair; 7) Costs and expenses of regular maintenance and cleaning; and 8) Representations and warranties made by any person or entity other than 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 30 GF will assist you in filing the freight claim. 3) Claims for any short shipment must be made within thirty (30) days of the invoice date. GF Health Products, Inc. 2935 Northeast Parkway Atlanta, GA 30360 Tel 770-368-4700 Fax 770-368-2386 www.grahamfield.com 3E02-INS-LAB-RevA14 • Traveler LX User Manual...

  • Page 31: Index

    Wheel bearings, check 27 Footrest, attach 15 Wheel lock engagement, check 25 Footrest, remove 15 Wheel locks, adjust 20 Footrest—detachable, swingaway 15 Getting started 8 Handling tips 9 Handrims, check 25 Info statement, significance 4 3E02-INS-LAB-RevA14 • Traveler LX User Manual...
  • Page 32 Manufactured for: GF Health Products, Inc. 2935 Northeast Parkway Atlanta, Georgia 30360 USA tel: 770-447-1609 fax: 770-368-2386 www.grahamfield.com Made in China...
