4.2 Display, keyboard, indicator, USB, and status indicators
This front is only available for type A.

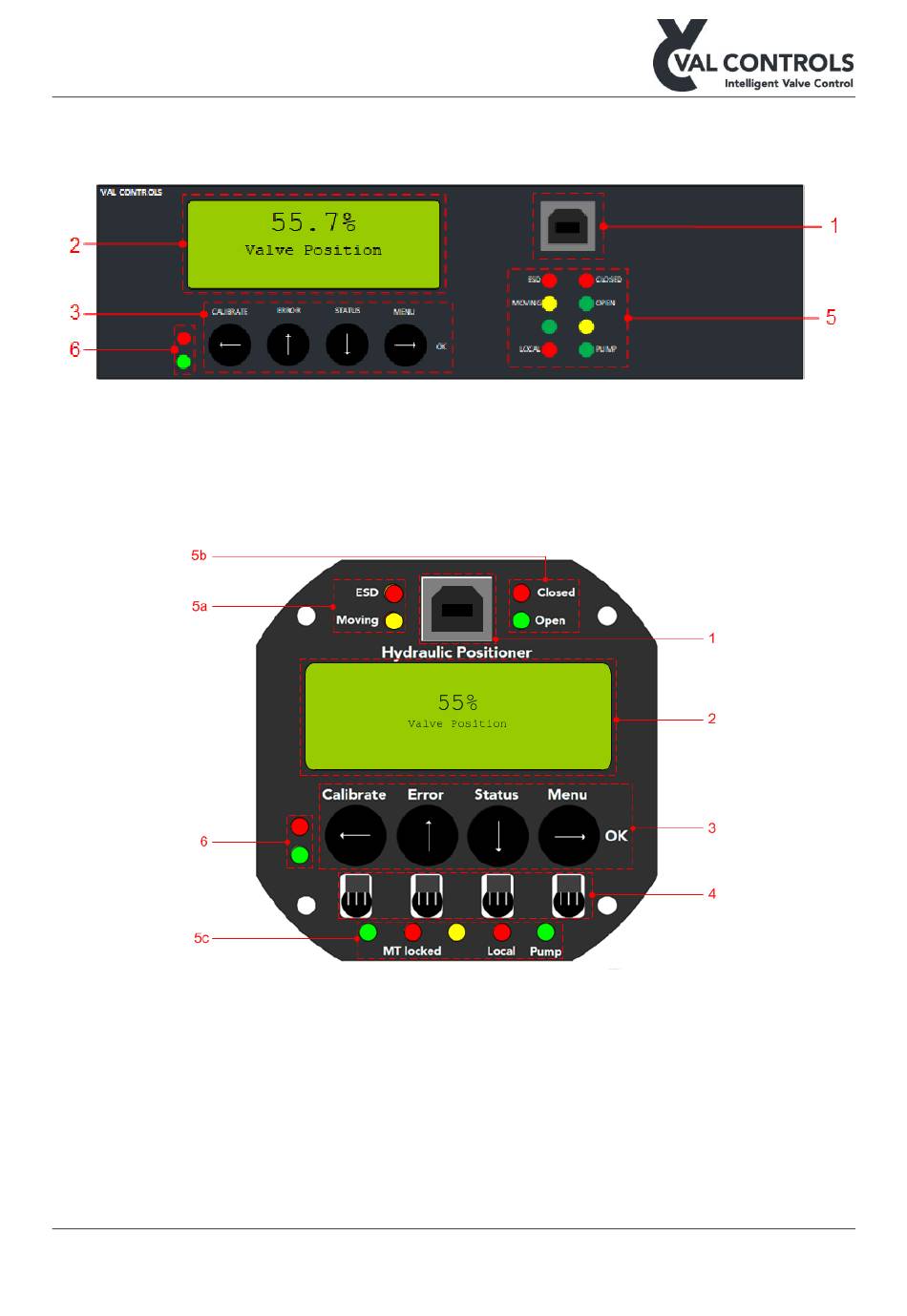

Figure 5: Type A interface
4.3 Display, keyboard, indicator, USB, MT control and status indicators
This front is only available for type BF and AF.
Figure 6: Type BF and AF interface
Val Controls A/S • Limfjordsvej 3 • DK-6715 Esbjerg N • Tel. +45 7547 0600 • Fax +45 7547 0611
DHP-UM-020
Revision: 12
vc@valcontrols.com • www.valcontrols.com
8/38
