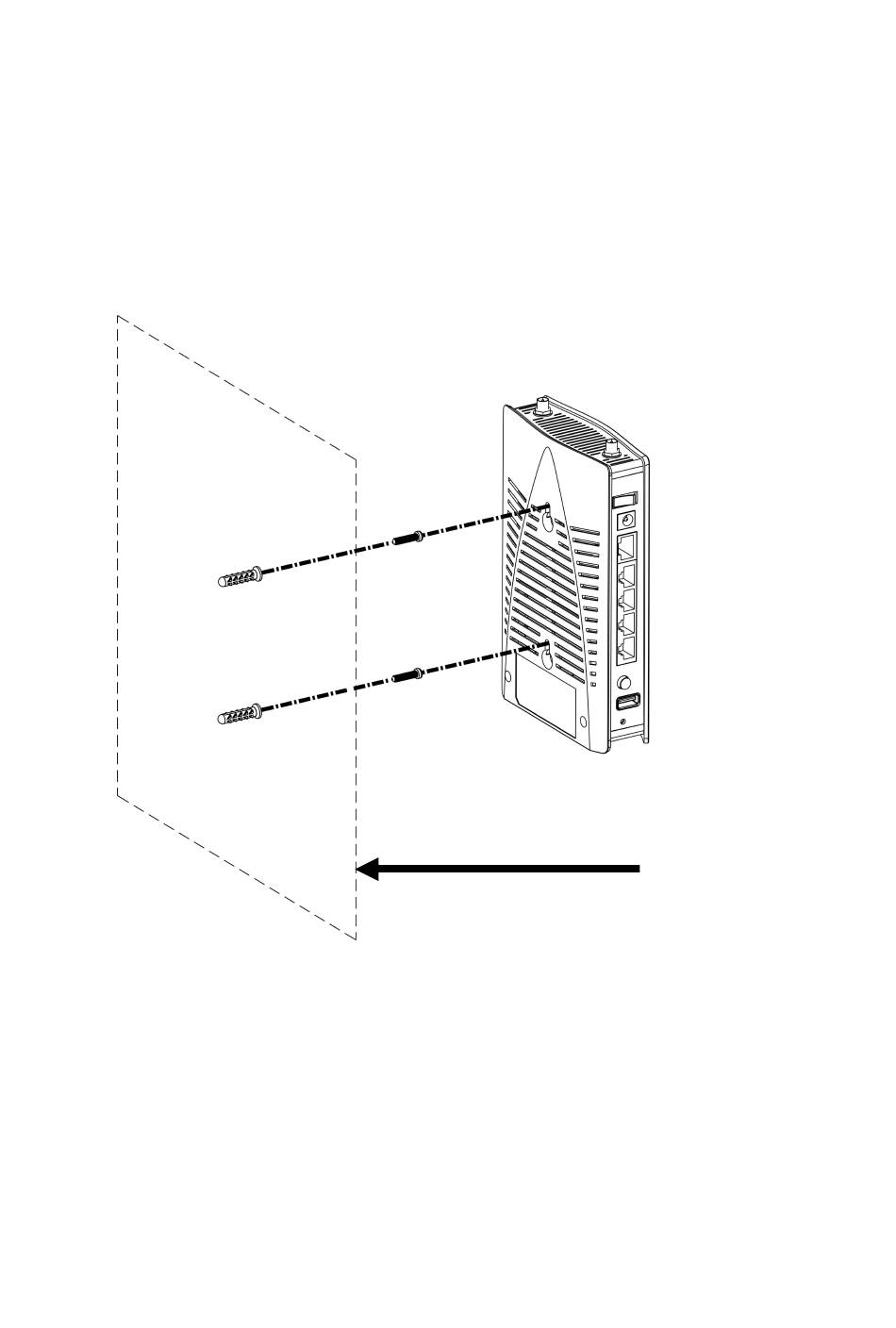

Wall Mounting the DrayTek VigorAP 903

1. Drill two holes on the wall. The distance between the holes shall be 80mm.

The recommended drill diameter is 6.5mm (1/4").

2. Fit screws into the wall using the included wall plugs

3. Screw the supplied mounting screws into the wall plugs and ensure the fit is

secure

4. Hang the VigorAP directly on the mounting screws and slide it down into

place to securely fit the AP into place

Wall
