Summary of Contents for SSS Siedle EC 602-03

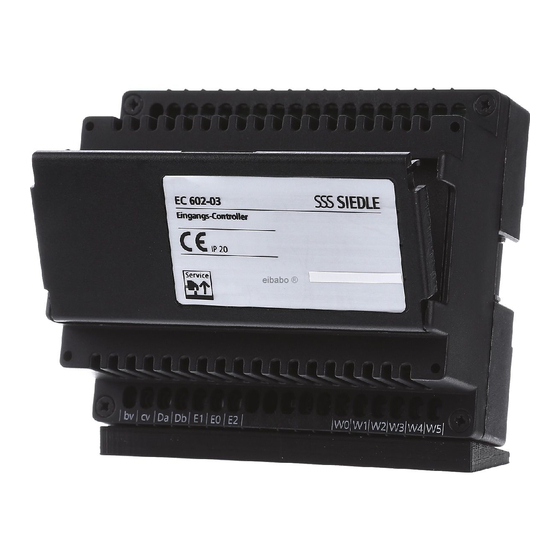

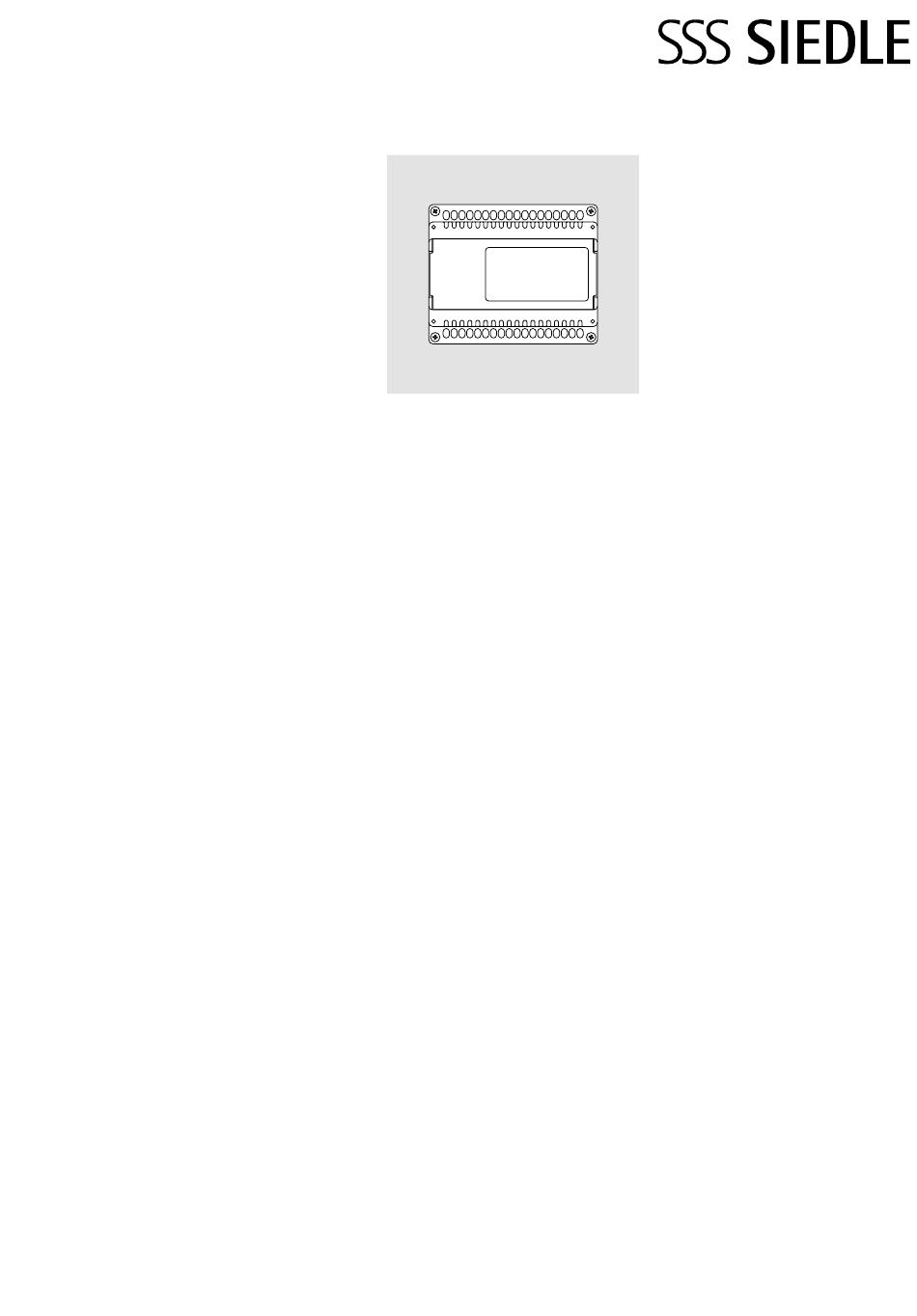

- Page 1 Programming Instructions Entrance controller EC 602-03...
-
Page 2: Table Of Contents
Contents General information Menu structure / Deleting data Programming options Application Displaying the configuration Configuration details Password Reset (Reset) Key cards Device overview Key buttons Accessories Codes Address setting Disable time Operation Access code programming Button functions example Ready for operation Entering a code System behaviour Selecting a relay... -
Page 3: General Information
General information Application Device overview Address setting Entrance controller in switch panel The following devices can be oper- For all input/read units connected housing for code lock module, ated on the EC 602-…: to the EC/ECE 602-…, a Vario bus electronic key reading module or fin- address between 1 and 8 must be Accessories Type Quantity... -
Page 4: Operation
The EC 602-… is ready for operation when the start screen is displayed (approx. 7 seconds after switching the power on): SSS Siedle EC 602-03 V2.xx System behaviour If no entries are made in a pro- gramming menu for more than 10 minutes, then the EC 602-…... -
Page 5: Display Screens
Start screen Start screen which shows that the SSS Siedle EC 602-… is ready to operate. Press EC 602-03 V2.xx the OK button to switch to the menu structure. Navigation in the menu structure You can use the up and down... -
Page 6: Switching Inputs And Outputs
Switching inputs and outputs Switching inputs Switching outputs Example There are 2 switching inputs E1 and On the EC 602-…, there are 2 Relay 2 is configured locally and E2 on the EC 602-… for enabling/ potential-free switching outputs assigned to code 01. 2 COM 611-… disabling switching functions via (relay changeover contact) relay 1 are operated (Vario bus address 1... -
Page 7: Gateway Function
Time Relay [x] Relay [y] Gateway triggering Relays can be configured with a 1st position 2nd position switching time of 0–59 minutes Local Local or global Through all input/read units with and 59 seconds and gateways with the same Vario bus address as the a pause time of 0–59 minutes and 1st position relay 59 seconds between two relay... -
Page 8: Menu Structure
Menu structure / Programming options SSS Siedle EC 602-03 V2.xx PASSWORD CHECK Passwd _ SYSTEM CODE KEY CARD Language Code programming Card programming Relay Function Relay selecting Relay selecting Relay 1, 2 Relay 1, 2 Sluice Function Sluice selecting Sluice selecting... - Page 9 KEY BUTTON TIME DELETE INFORMATION Relay selecting Time Relay Clear Password Show Code Relay 1, 2 Sluice selecting Time Sluice Clear Code Show ID-Card Sluice A, B Keybutton timing Clear ID-Card Timed by Input 1 Clear Sluice...
- Page 10 Menu structure / Programming options Menu level 1 Menu level 2 Display indicator Description German English SYSTEM Language Sprache Language (For configuring the language Relay function Relais Funktion Relay Function for the user interface, relay func- tion, gateway function, password Gateway function Schleuse Funkt. Sluice Function request and disable times for Changing the password Kennwort ändern...
-
Page 11: Programming Options
Programming options Factory setting [Display indicator] German [Deutsch], English [English] German L (Local), G (Global) 4 gateways (A, B, C****, D****) – 1–8-digit password – 1-59 minutes – Max. 99 1–8-digit codes – Assign codes (COM 611-…) – A, B, C****, D**** – No [No], Yes [Yes] Max. 999 key cards (EKC/EK…) –... -
Page 12: Configuration Details
Configuration details Key cards ELM… LED display Description Instead of using codes or finger- Programming prints, key cards (electronic key cards Red and green LEDs light up Programming mode active while a or electronic keys) can also be used together. key card is read in. for access. -
Page 13: Access Code Programming Example
Access code programming example Entering a code This programming example covers Programming example the following related programming Program a code (code 01) with the sequences: digits 2345, assign a relay switching • Entering a code function (relay 2) or a gateway • Selecting a relay function (gateway B) to this code •... -
Page 14: Selecting A Relay
Access code programming example Selecting a relay, Selecting a gateway Procedure Function button Display indicator Selecting a relay – Without ECE 602-… If no relay is to be assigned to this Time Relay code press the OK button. Code 01 With ECE 602-… Time Relay 1 2 3 4 5 6 7 8 Code 01 Press the right arrow key to move Time Relay... -
Page 15: Time Control
Press the up arrow key. Timed by Input 1 Code 01 Press the OK button. OK = Store = New The entry is saved. Code 01 Press the ESC button. CODE OK = Prog = Next Press the ESC button. SSS Siedle EC 602-03 V2.xx... -
Page 16: Programming
Programming System settings In the SYSTEM menu, configure the relay and gateway functions, the system language and a system password. 1. Language 3. Gateway function 5. Disable time Configure the operating language In the Gateway Function submenu In the Disable Time submenu, con- of the EC 602-…... -
Page 17: Input Codes
Input codes In the CODE menu, program the input code for using the COM 611-… in the access control system. 1. Entering a code 3. Selecting a gateway In the Code submenu, program the In the Gateway selecting submenu input codes for the COM 611-… [Sluice selecting] assign the associ- input unit in the EC 602-…... -
Page 18: Key Cards
Programming Key cards In the KEY CARD menu, read in the key cards and program them for use of the ELM… in the access control system. 1. Card input 2. Selecting a relay 4. Time control In the Card programming submenu, In the Code timing submenu, deter- In the Relay selecting submenu in the EC 602-…... -
Page 19: Key Buttons
Key buttons In the KEY BUTTON menu, define whether internal/external key but- tons from COM/DRM 611-… can be used to trigger the relay or gateway functions in the access control system. 1. Selecting a relay 3. Time control In the Relay selecting submenu In the Code timing submenu, deter- assign the associated relays to the mine whether the relevant access... -
Page 20: Switching And Pause Times
Programming Switching and pause times In the Time menu, configure the relay switching times and the gateway pause times. 1. Relay 2. Gateway In the Time Relay submenu, con- In the Gateway submenu [Time figure the switching times for the Sluice], configure the pause times relays in the EC 602-…... -
Page 21: Deleting Data
Deleting data Displaying the configura- Reset (Reset) tion In the DELETE menu, delete the set In the INFORMATION menu you A reset deletes all inputs including password, programmed codes, read- can view the configuration of pro- the password and restores the as- in key cards and configured gateway grammed codes and key cards that delivered status. - Page 24 S. Siedle & Söhne © 1998/12.18 Telefon- und Telegrafenwerke OHG Printed in Germany Best. Nr. 200032073-02 EN Postfach 1155 78113 Furtwangen Bregstraße 1 78120 Furtwangen Telefon +49 7723 63-0 Telefax +49 7723 63-300 www.siedle.de info@siedle.de...
