usha Techne Pro 5000 Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
INSTRUCTION MANUAL
STEAM STATION
Model: Techne Pro 5000

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Techne Pro 5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for usha Techne Pro 5000

Summary of Contents for usha Techne Pro 5000

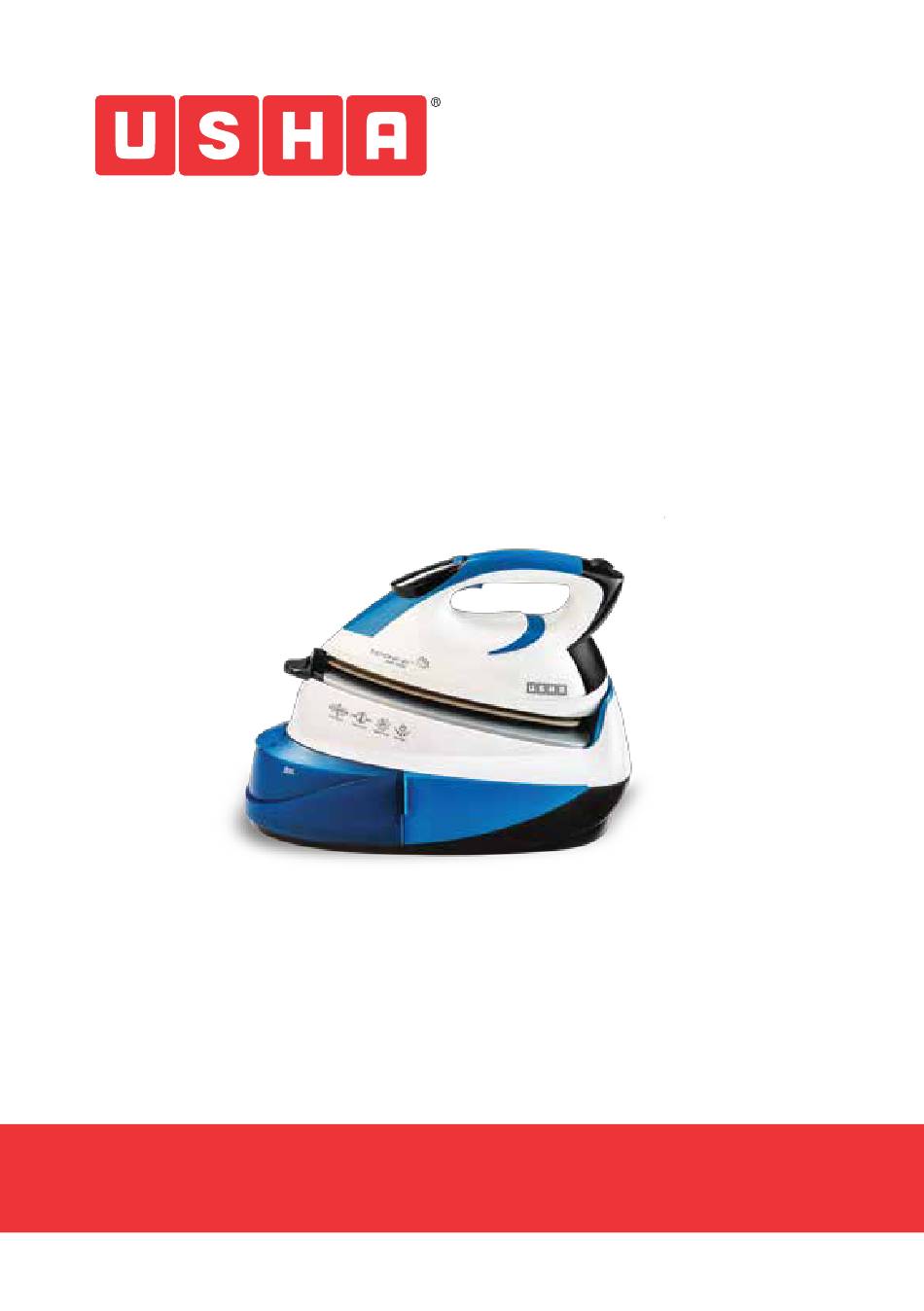

  • Page 1 INSTRUCTION MANUAL STEAM STATION Model: Techne Pro 5000...
  • Page 2 USHA steam station have the capacity to hold up to 1000 ml water to give you uninterrupted high power steam for the good number of clothes you may want to iron over the weekend.

  • Page 3: Important Instructions

    IMPORTANT INSTRUCTIONS For safety purpose you should read this instruction manual carefully before using the appliance for the rst time and save this instruction manual for future reference. The appliance is designed for domestic use and may only be operated in accordance with this instruction manual.

  • Page 4: Identification Of Parts

    Do not roll the power cord or steam hose around the iron unit or base for storage until it has cooled down completely. 10. Do not attempt to open the cabinet or dismantle any parts from the appliance, there is no serviceable part inside.

  • Page 5: Control Panel

    CONTROL PANEL: No Steam Indicator Steam Level Indicator Anti-scale Cartridge Indicator Temperature Settings P-Temp Mode Indicator Auto Shut O Indicator Self-clean Indicator ECO Indicator SETTING THE TEMPERATURE SETTING THE TEMPERATURE The appliance has di erent temperature setting to handle di erent kinds of fabrics. Press the The appliance has di erent temperature setting to handle di erent kinds of fabrics.
  • Page 6 SAFETY AUTO SHUT-OFF FUNCTION The safety auto shut-o function will operate automatically when the iron is left immobile or the function button/steam trigger not being pressed for 10 minutes. The Auto Shut o Indicator will be ashing as shown in (Figure 3) to indicate the appliance is under safety auto shut o function.

  • Page 7: Using Your Appliance

    Fill the water tank to the max level (See “FILLING THE WATER TANK”) and plug in the appliance. Press the function button follow with the steam trigger and hold both buttons for 3 seconds. The appliance will then enter the self-cleaning mode.

  • Page 8: Filling The Water Tank

    FILLING THE WATER TANK Disconnect the power cord from electric outlet. Pull out the water tank (Figure 11). Open the Water Inlet Cover and ll the water into the water tank until the max level on the water tank (Figure 12). Insert back the water tank in its place &...

  • Page 9: Vertical Steaming

    3. Steam ironing is available for all temperature setting except “Dot1”. You can hold the steam trigger to generate steam for steam ironing. The respective steam indicator for “P-temp”, “Dot 2”, “Dot 3” and “Max” will ash indicates it is generating steam.

  • Page 10: Cleaning And Maintenance

    CLEANING AND MAINTENANCE Disconnect the power cord from the mains supply outlet. Use a damped cloth or non-scratching cleaner to remove the deposits on the soleplate or the cabinets. Never use sharp or rough objects to remove the deposit on the soleplate. Never use any abrasive, vinegar or descaling agents to clean the iron.

  • Page 11: Warranty Card

    WARRANTY CARD This appliance is warranted for 2 year against all manufacturing defects from the date of sale. In the event of any complaint, please contact Usha Care at Toll Free No. 1800 1033 111. The warranty is valid only when: The appliance has been installed, used and maintained in accordance with the instruction manual.
  • Page 12 ISO 9001:2015 Certified Company...
