8 Top Cover Assembly

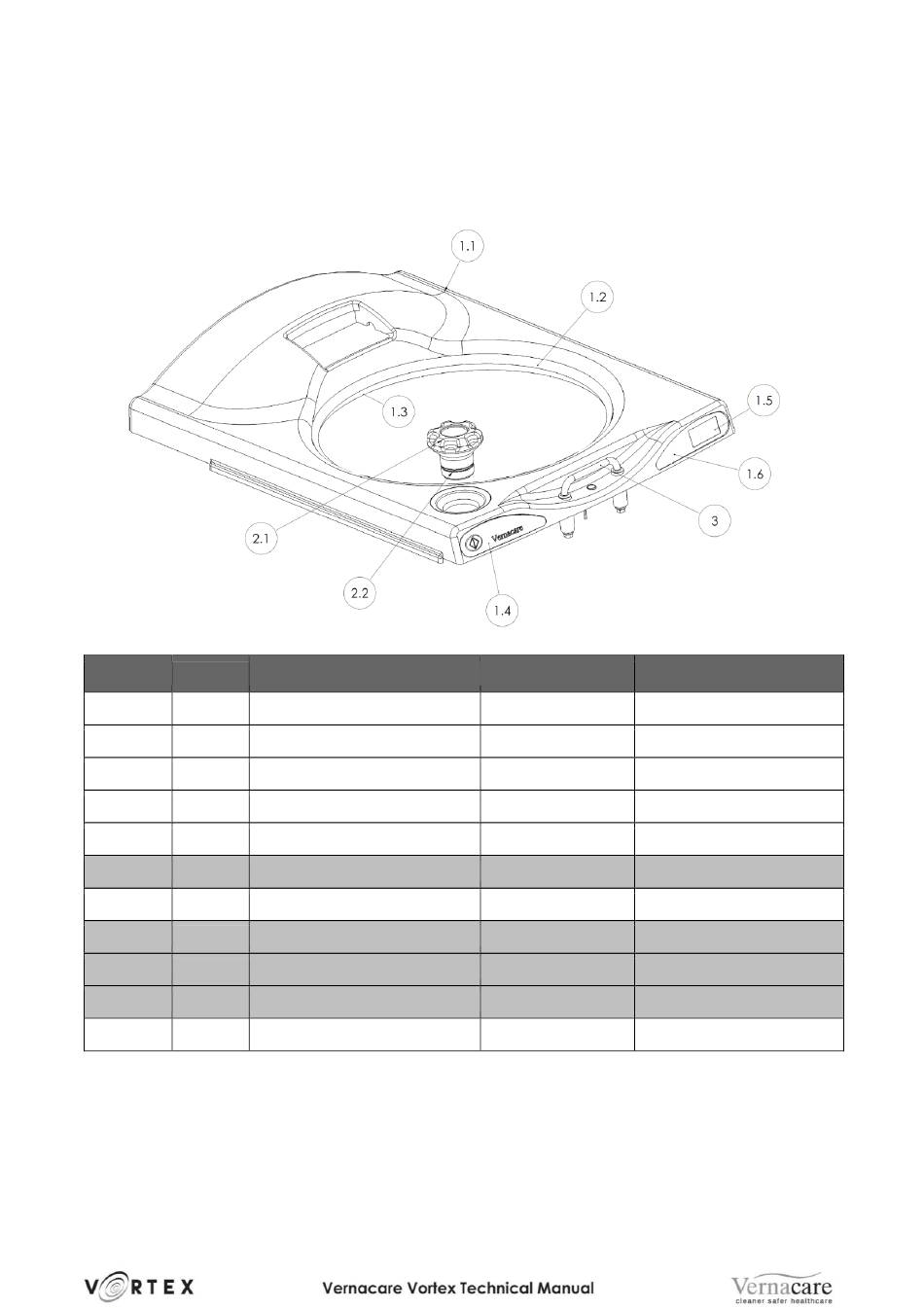

Figure 6 – Top Cover Assembly
KIT
REF
PART DESCRIPTION
1
Top Cover Assembly Kit
1.1
Top Cover
1.2
Lid Seal
1.3
Lid Seal Clip
1.4
Start Switch Keypad
1.5
Display Screen
1.6
Display Membrane
2
Deodoriser Cap Kit
2.1
Deodoriser Tank Cap
2.2
Filler Cap 'O' ring
3
3
Lever Hook
KIT NUMBER
ITEM NUMBER*
9207002
9200158
9200159
9200152
9200534
Not Include in kit
9200819
9200535
9207013
9200206
9200209
9200933
22
