10.0 EXPLODED VIEWS AND PARTS LISTS

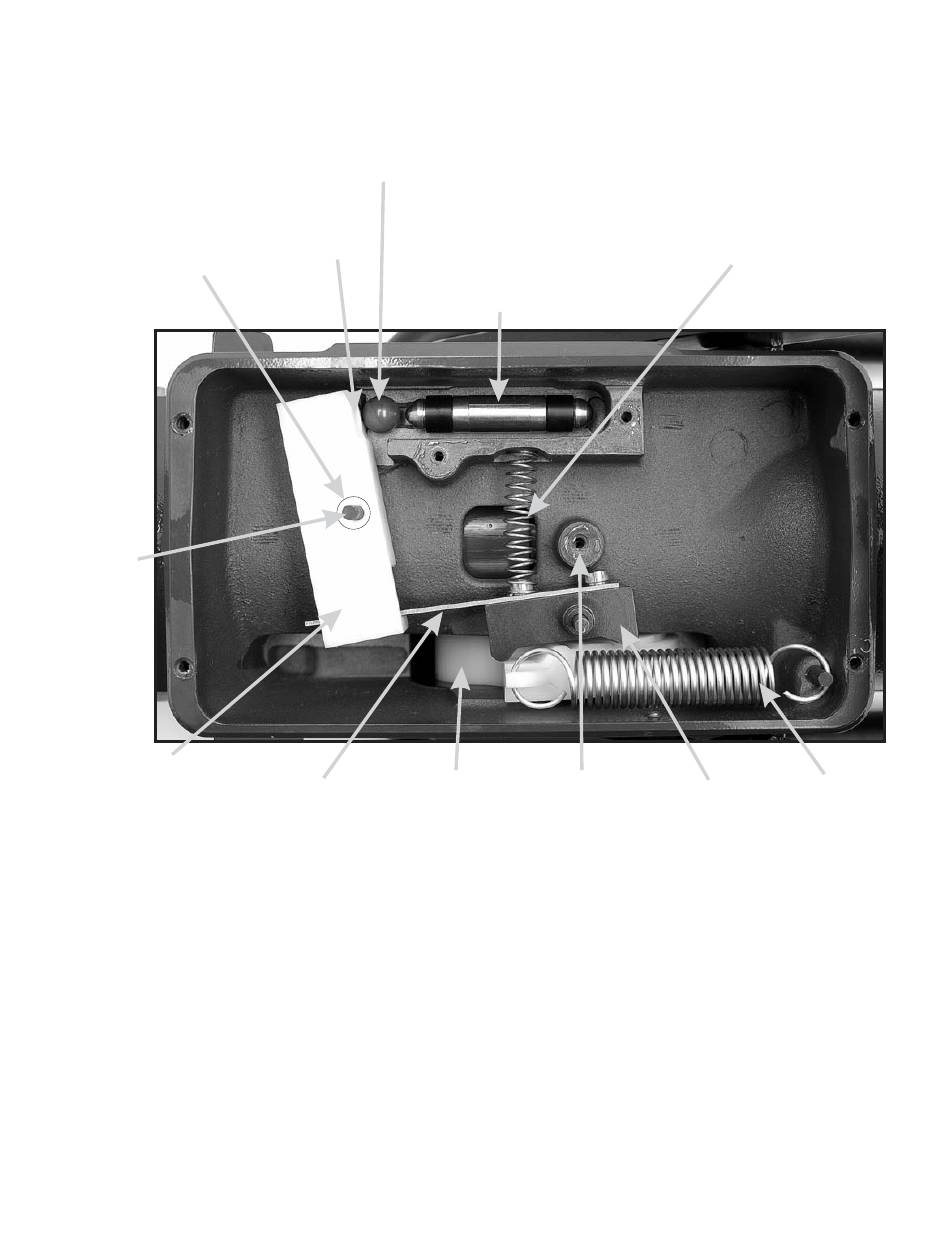

10.1 SAFETY MECHANISM ASSEMBLY VIEW
VB500TO
1/2" BALL
XX555
XX545
VW360X193-10
PIN
RESET SPRING
TEFLON WASHER (2)
XX570
TRIP ROD
XX535
PIVOT PIN
(3) PLACES
XX550
RELEASE
XX540
XX510
VT10-24SH500
XX530
XX560
LEAF SPRING
VT37-16SNT
PAWL
EXTENSION
(3) PLACES
TEETH + NUT
SPRING
NOT SHOWN: XX520 RETAINER PLATE
VP188X.38HDP SPIRAL PIN
