Easy Start Guide
Invertek Optidrive E3 Inverter (IP20, 3ph output)

3. Motor Connections - Star and Delta

Dual voltage induction motors typically include
terminal boxes with six points. The points can
be connected together with links in one of two
ways to suit one of the two rated voltages.

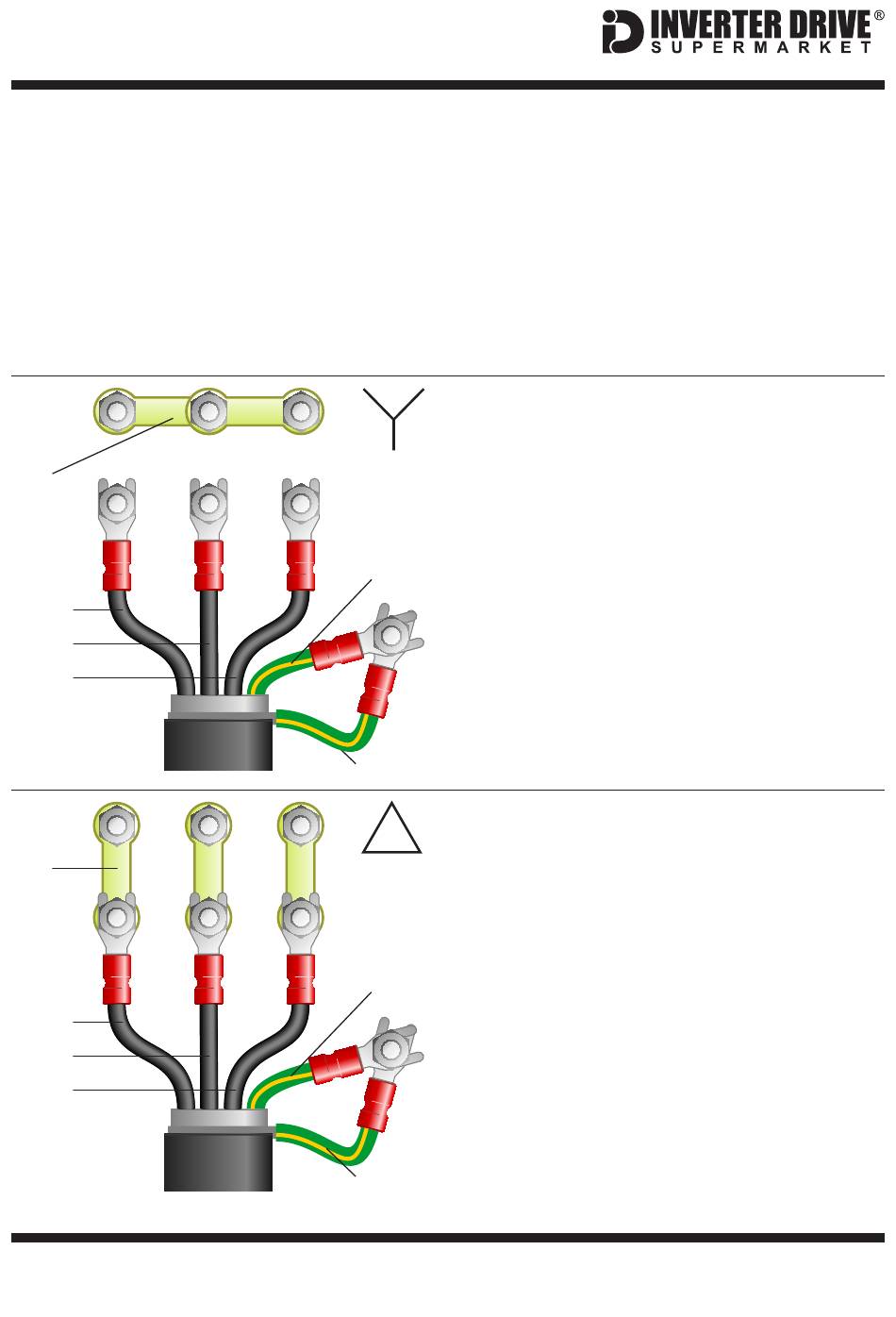

The two ways of connecting the links
shown below. These are known as "Star" (the
higher voltage) or "Delta" (the lower voltage).
Link
Phase
Phase
Phase
Link
Phase
Phase
Phase
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright
Drive Supermarket and must not be reproduced or altered without prior written permission.
The selection of Star or Delta is not optional
and must match the supply voltage.
Dual voltage motor nameplates include
symbols to represent voltage and full load
are current in each configuration.
Delta is represented by a triangle and star by a
Y (Wye).
3.1 Motor connected in STAR (or Wye):
For safety purposes, Star (shown opposite) is
STAR
the default configuration for small motors
(usually to 3kW) and is sometimes known as
"two at one side".
Only two links are required for Star. Double-up
Earth
the links if changing from Delta to allow the
motor to be changed back in future.
The order of the three phases determines the
direction the motor turns.
Note that the manufacturer recommends that
the cable screen is earthed at both ends.
Screen
3.2 Motor connected in DELTA:
The link configuration is shown in the
DELTA
illustration opposite and is sometimes referred
to as "three-a-breast".
The order of the three phases determines the
direction the motor turns.
Earth
Note that the manufacturer recommends that
the cable screen is earthed at both ends.
Screen
