Easy Start Guide
Invertek Optidrive E3 Inverter (IP20, 3ph output)
12. How to configure "3-Wire" control with Run Forward
Run Reverse and Stop pushbuttons
The procedure described in section 7 enables
Run/Stop operation via the start and stop
buttons on the Inverter keypad.
If this is unsuitable for the application, remote
switches can be used instead.
12.1 Parameters to check for remote 3-wire control
Parameter Description
P-12 Primary Command Source
P-14 Extended Menu Access Code
P-15 Digital Input Function Selection
(Extended Access Required)
+24V DI1 DI2 DI3
1
2 3 4
1 2
Pushbutton
Normally Open Normally Closed
"Run Forward"
This guide has been produced by The Inverter Drive Supermarket Ltd.
All content, including but not limited to graphics, text and procedures copyright
Drive Supermarket and must not be reproduced or altered without prior written permission.
How to set
Default is
Default is 0; set to
Default is 0; set to
1 3
Pushbutton Pushbutton
Normally Open
"Stop" "Run Reverse"
This section explains how to enable 3-wire
control with Run Forward, Run Reverse and
Stop commands via separate pushbuttons.
When set to operate in this way, the Inverter
can no longer be operated via the integrated
keypad.
0 for terminal control. Default is required for this example.
101 to gain access to "extended" parameters (P-15 to P-50).
11 for 3 wire control.

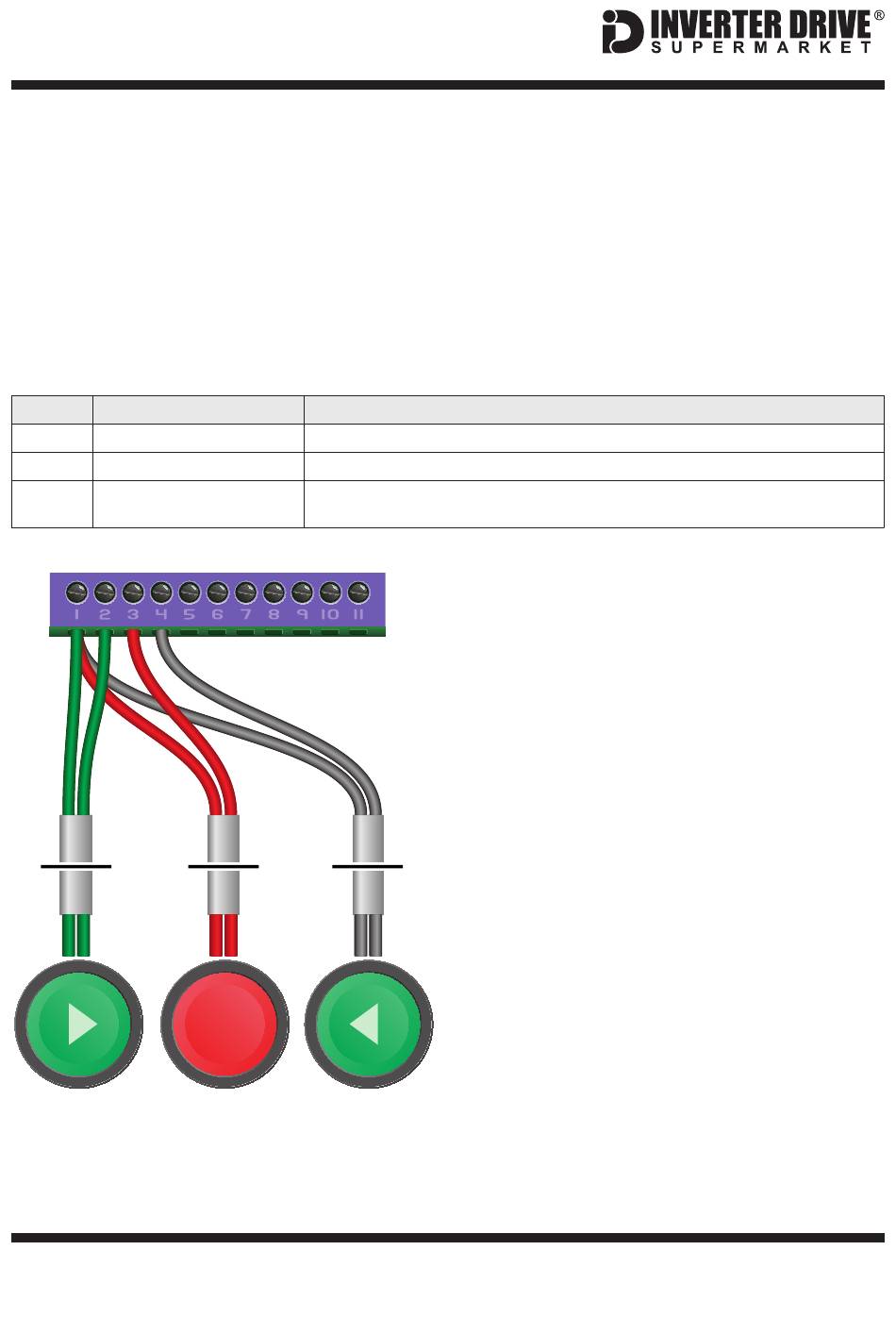

12.2 Connecting the Switches
A wiring diagram is shown in the illustration
opposite.
Three suitable pushbuttons should be
installed:-
Stop: a normally closed contact between
terminals +24V and DI1
Run Forward: a normally open contact
between terminals +24V and DI2.
Run Reverse: a normally open contact
between terminals +24V and DI3.
A momentary connection between +24V and
DI2 will start the motor (forward). It will
continue to run until the connection between
+24V and DI2 is broken. A momentary
1 4
connection between +24V and DI3 will behave
in the same way but the motor will run in
reverse.
If the application only requires the motor to turn
in one direction, the "Run Reverse" pushbutton
can be omitted.
