B.A. International BA ULTIMATE 695 Operating Instructions Manual

Dental air turbine handpiece
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

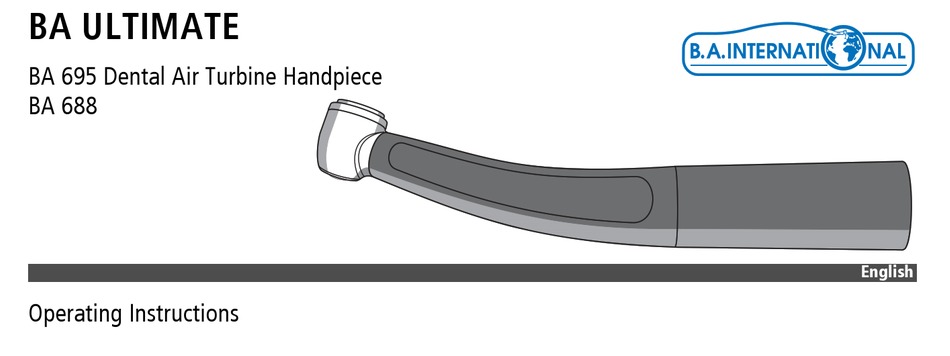

_^=riqfj^qb
_^=SVR=aÉåí~ä=^áê=qìêÄáåÉ=e~åÇéáÉÅÉ=
_^=SUU
Operating instructions / 04/05 BA 695 \rBA 688 / with fixed connection
båÖäáëÜ
léÉê~íáåÖ=fåëíêìÅíáçåë

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BA ULTIMATE 695 and is the answer not in the manual?

Questions and answers

Related Manuals for B.A. International BA ULTIMATE 695

Summary of Contents for B.A. International BA ULTIMATE 695

  • Page 1 _^=riqfj^qb _^=SVR=aÉåí~ä=^áê=qìêÄáåÉ=e~åÇéáÉÅÉ= _^=SUU Operating instructions / 04/05 BA 695 \rBA 688 / with fixed connection båÖäáëÜ léÉê~íáåÖ=fåëíêìÅíáçåë...

  • Page 2: Table Of Contents

    Table of contents Operating Instructions BA ULTIMATE Table of contents Before you begin … ..................Structure of the document ..................... Service life........................Safety information ................... Technical description ..................Task..........................Design of the BA ULTIMATE..................Technical data ....................... Turbine connection types available ................Production data ......................
  • Page 3 Operating Instructions BA ULTIMATE Table of contents Initial start-up and longer breaks in use ................ Prior to starting the work day..................Before each patient ....................... Operation ......................Replacing the turbine ....................Inserting and removing burs..................Adjusting the cooling spray ................... Follow-up ......................
  • Page 4 Table of contents Operating Instructions BA ULTIMATE Automated cleaning and disinfecting ................Manual cleaning and disinfection .................. Manual maintenance ..................... Sterilizing........................Maintenance ....................Testing the FG clamping system................... Replacing the halogen lamp in the handpiece .............. 65 56 067 D3560.201.09.03.02...

  • Page 5: Before You Begin

    Operating Instructions BA ULTIMATE 1 Before you begin … Before you begin … The BA 695 / BA 688 turbine corresponds with the provisions of state- of-the-art technology. The BA 695 / BA 688 turbine complies with the ISO 14457 and ISO 9168 standards. The units, the product is connected to, must comply with the requirements of IEC 60601-1.
  • Page 6 1 Before you begin … Operating Instructions BA ULTIMATE Intended use The BA 695 / BA 688 turbine is used to treat dental disease and injuries. The treatment involves the rotary processing of hard and soft tooth Rotating_without bones substance and dental prostheses (crowns, fillings, bridges, etc.). Contraindications None Target group...

  • Page 7: Structure Of The Document

    Operating Instructions BA ULTIMATE 1 Before you begin … Structure of the document 1.1.1 Labeling of information Warnings ➢ To prevent injuries, please observe the warnings. Warnings are labeled as follows: DANGER! indicates a danger leading to death or serious injury if not avoided.
  • Page 8 1 Before you begin … Operating Instructions BA ULTIMATE Instructions for use ➢ To prevent material damage and additional expenses, please observe all instructions for use. Instructions for use are labeled as follows: NOTICE! indicates measures for the prevention of material damage. IMPORTANT: indicates information on the avoidance of additional expenses and other important information.
  • Page 9 Operating Instructions BA ULTIMATE 1 Before you begin … 1.1.2 Formats and symbols The formats and symbols used in this document have the following meaning: ✔ Prerequisite Requests you to do something. 1. First action step 2. Second action step ➢ Alternative action ...

  • Page 10: Service Life

    1 Before you begin … Operating Instructions BA ULTIMATE Service life When used as intended: ● Non-moving parts have a typical service life of 5 years ● Moving parts have a typical service life of 3 years No warranty claim can be inferred here, as wear may occur earlier or later than indicated above depending on use, frequency of sterilization, and frequency of maintenance.

  • Page 11: Safety Information

    Operating Instructions BA ULTIMATE 2 Safety information Safety information Obligations of the user ● Use only fault-free materials that do not deviate from the specified data [ → 15]. ● Protect yourself, patients, and others against any foreseeable dangers. To do this, follow the safety information. ●...
  • Page 12 The BA instrument is the result of a precise development and must not be disassembled by third parties. In the case of service or repair work, please send the instrument in an assembled state to B.A. International Ltd. or to a service center approved by B.A. International.

  • Page 13: Technical Description

    Operating Instructions BA ULTIMATE 3 Technical description Technical description Task The BA 695 / BA 688 high-speed handpiece is used to power dental instruments with an FG shank. The quick coupling is used for media supply and connection to the supply hose and features convenient turnability. 65 56 067 D3560.201.09.03.02...

  • Page 14: Design Of The Ba Ultimate

    3 Technical description Operating Instructions BA ULTIMATE Design of the BA ULTIMATE Turbine head (in this case: Power) Push button Cooling spray outlet Opening of chuck system Light aperture Handpiece sleeve 65 56 067 D3560.201.09.03.02...

  • Page 15: Technical Data

    Operating Instructions BA ULTIMATE 3 Technical description Technical data Turbine BA 695 BA 688 Available head sizes: Power ~ 22W Mini ~ 19W Light function Back-suction stop in the head housing Back suction stop in the spray water area Pushbutton cover clamping system 65 56 067 D3560.201.09.03.02...
  • Page 16 3 Technical description Operating Instructions BA ULTIMATE Turbine head Turbine head, burr instrument _ BA Ultimate Power Mini No-load speed in rpm 360 000 ± 10 % 400 000 ± 10 % Maximum torque in Nmm ~ 2.0 ~ 1.6 Friction grip burr instrument Power Mini Shank standard...
  • Page 17 Operating Instructions BA ULTIMATE 3 Technical description Treatment center Treatment Center _ Turbine 2012 _ BA Ultimate BA 695 / BA 688 Driving air pressure in bar (flowing, dry, and clean) Driving air consumption in Nl/min 48 ± 5 Return air pressure in bar <...

  • Page 18: Turbine Connection Types Available

    3 Technical description Operating Instructions BA ULTIMATE Turbine connection types available Connection type available for R/F quick coupling (Sirona) Multiflex LUX (KaVo) quick coupling ROTO QUICK (W&H) quick coupling 65 56 067 D3560.201.09.03.02...
  • Page 19 Operating Instructions BA ULTIMATE 3 Technical description Connection type available for Unifix L (Bien-Air) quick coupling PTLCL (NSK) quick coupling 65 56 067 D3560.201.09.03.02...

  • Page 20: Production Data

    3 Technical description Operating Instructions BA ULTIMATE Production data HSI HIBC code H658 M 675LN 1 / $ S 07 00001 Product label code (in this case: 675LN 1) Year of manufacture (in this case: 2007) Serial number (in this case: 00001) 65 56 067 D3560.201.09.03.02...

  • Page 21: Preparation

    Operating Instructions BA ULTIMATE 4 Preparation Preparation Initial start-up and longer breaks in use ✔ The turbine is only able to reach full power if indicated operating pressures are set [ → 15]. If necessary have the pressures checked by a service engineer with a star tester that is placed between the supply hose and the quick coupling.

  • Page 22: Before Each Patient

    4 Preparation Operating Instructions BA ULTIMATE Before each patient 1. Purge the water and air channels for 30 seconds. 2. Attach the turbine [ → 24]. 3. Insert the bur instrument [ → 27]. 4. Set a sufficient amount of cooling water (> 50 ml/min) [ → 29]. 5.

  • Page 23: Operation

    Operating Instructions BA ULTIMATE 5 Operation Operation NOTICE! Use only burs and diamond polishers that are sharp and undamaged. Use clean burs and diamond polishers to avoid dirt in the clamping system. CAUTION! A loose or partially removed bur instrument can detach itself from the head or break off.

  • Page 24: Replacing The Turbine

    5 Operation Operating Instructions BA ULTIMATE Replacing the turbine CAUTION! Do not remove the handpiece while the turbine is running. 5.1.1 Turbine with Sirona or KaVo connection Attaching the turbine ➢ Insert the turbine until it audibly clicks into place. Removing the turbine ✔...
  • Page 25 Operating Instructions BA ULTIMATE 5 Operation 5.1.2 Turbine with W&H or Bien-Air connection Attaching the turbine ➢ Insert the turbine until it audibly clicks into place. Removing the turbine ✔ The turbine is at a standstill. ➢ Press the markings (A) of the W&H quick coupling or the pushbuttons (B) on the Bien-Air quick coupling and remove the turbine, turning it slightly .
  • Page 26 5 Operation Operating Instructions BA ULTIMATE 5.1.3 Turbine with NSK PTLCL connection Attaching the turbine ➢ Insert the turbine until it audibly clicks into place. Removing the turbine ✔ The turbine is at a standstill. ➢ Slide back the sleeve (A) on the quick coupling toward the supply hose and pull the turbine while turning it slightly.

  • Page 27: Inserting And Removing Burs

    Operating Instructions BA ULTIMATE 5 Operation Inserting and removing burs IMPORTANT: Check the push button to make sure it moves freely! NOTICE! Use only burs and diamond polishers that are sharp and undamaged. Use clean burs and diamond polishers to avoid dirt in the clamping system.
  • Page 28 5 Operation Operating Instructions BA ULTIMATE Inserting the friction grip bur ✔ The turbine is at a standstill. 1. Press the button and insert the bur up to the stop. 2. Pull on the bur to check that it is firmly attached. Removing the friction grip bur ✔...

  • Page 29: Adjusting The Cooling Spray

    Operating Instructions BA ULTIMATE 5 Operation Adjusting the cooling spray ➢ Adjust the flow rate of the cooling water using the control ring (A) (> > 50 ml/min 50 ml/min). Tip: You can measure the amount of cooling water with a measuring cup and watch.
  • Page 30 5 Operation Operating Instructions BA ULTIMATE Bien-Air quick coupling: The minimum water flow is set when the control Bien-Air quick coupling ring is rotated right to the stop. The maximum flow is set when the control ring is rotated left to the stop. PTL CL quick coupling (NSK): The water flow is adjusted to its NSK PTL CL quick coupling maximum setting when the control ring perceptibly snaps into place.

  • Page 31: Follow-Up

    Operating Instructions BA ULTIMATE 6 Follow-up Follow-up After each treatment session NOTICE! Condition immediately, or at the latest, one hour after treatment. ✔ The bur instrument must not be moving. ✔ Wear appropriate protective clothing. 1. Purge the water and air channels on the treatment center for 30 seconds.

  • Page 32: At The End Of The Work Day

    6 Follow-up Operating Instructions BA ULTIMATE 6. Conduct automatic conditioning [ → 34]. Manual conditioning [ → 36] is possible in exceptional cases if the national/local regulations are followed. 7. Spray the turbine [ → 38]. 8. Sterilize the turbine and the accessories [ → 44]. At the end of the work day ➢...

  • Page 33: Conditioning

    Operating Instructions BA ULTIMATE 7 Conditioning Conditioning Conduct pre-disinfection ✔ Wear appropriate protective clothing. ✔ All disinfectants must be approved in your country and have proven bactericidal, fungicidal and virucidal properties. Only use disinfectants with no protein-fixing properties. 1. Spray the surface with disinfectant. 2.

  • Page 34: Automated Cleaning And Disinfecting

    7 Conditioning Operating Instructions BA ULTIMATE Automated cleaning and disinfecting ... NOTICE! Do not carry out automated cleaning of the quick couplings. 7.2.1 ... with cleaning and disinfection equipment BA 695 / BA 688 can also be cleaned and disinfected in suitable cleaning and disinfection equipment.
  • Page 35 Operating Instructions BA ULTIMATE 7 Conditioning 2. If they are still dirty, repeat the process.  For further processing, BA 695 / BA 688 should be dry and free of residue. 3. Blow BA 695 / BA 688 out with max. 3 bar. 4.

  • Page 36: Manual Cleaning And Disinfection

    7 Conditioning Operating Instructions BA ULTIMATE Manual cleaning and disinfection IMPORTANT: Manual conditioning is possible in exceptional cases if the national/regional regulations are followed. The national/regional regulations are to be checked before. NOTICE! Condition immediately, or at the latest, one hour after treatment.
  • Page 37 Operating Instructions BA ULTIMATE 7 Conditioning 1. Brush the turbine under running water (< 38 °C, < 100 °F, at least drinking water quality) and good lighting (min. 500 lux) and color rendering index (min. 80 Ra) until no more dirt can be seen, for at least 10 seconds.

  • Page 38: Manual Maintenance

    7 Conditioning Operating Instructions BA ULTIMATE Manual maintenance 7.4.1 Maintenance of mechanical parts Intervals ● At least every noon and evening ● Prior to each sterilization ● After every thermal disinfection without integrated maintenance ● During a longer preparation (> 10 minutes) 65 56 067 D3560.201.09.03.02...
  • Page 39 Operating Instructions BA ULTIMATE 7 Conditioning Required accessories Sirona connection spray adapter KaVo connection spray adapter W&H connection spray adapter Bien-Air connection spray adapter NSK PTLCL connection spray adapter ULTIMATE SPRAY BA Ultimate Spray NOTICE! Using sprays from other manufacturers can reduce the product's service life.
  • Page 40 7 Conditioning Operating Instructions BA ULTIMATE Procedure ✔ The spray adapter is disinfected. ✔ The O-rings on the spray adapter are intact. 1. Fit the spray adapter onto the nozzle of the spray can. 2. Insert the high-speed handpiece as far as it will go and hold it in place.
  • Page 41 Operating Instructions BA ULTIMATE 7 Conditioning 7.4.2 Care of the push button chuck To remove deposits and ensure proper functioning of the clamping system, the pushbutton chuck must be maintained with BA Ultimate Spray. Interval ● At least once a week Required accessories BA Ultimate Spray 65 56 067 D3560.201.09.03.02...
  • Page 42 7 Conditioning Operating Instructions BA ULTIMATE Process ✔ The turbine is cleaned and disinfected. 1. Press the turbine head with the chuck firmly against the spray can nozzle. 2. Spray the chuck for 1 - 2 seconds. IMPORTANT: Hold the spray can upright. 3.
  • Page 43 Operating Instructions BA ULTIMATE 7 Conditioning 7.4.3 Care of cooling spray nozzle openings If your tap water is very hard, lime deposits may constrict or completely block the cooling spray nozzles. 1. Carefully clean the nozzle openings by running a cleaning wire through them.

  • Page 44: Sterilizing

    7 Conditioning Operating Instructions BA ULTIMATE Sterilizing ✔ The turbine is cleaned and disinfected. 274°F 134°C ✔ Turbine maintenance is complete. ✔ If necessary, the turbine can be sterilized in packaging suitable for sterilization and storage, e.g. paper/plastic composite packaging or container.
  • Page 45 Operating Instructions BA ULTIMATE 7 Conditioning Approved steam sterilizers are those that fulfill the requirements of either EN 13060, class B or EN 13060, class S and which are also suitable for the sterilization of turbine. NOTICE! Do not exceed 140 °C (284 °F), even during the drying phase. After sterilizing 1.

  • Page 46: Maintenance

    8 Maintenance Operating Instructions BA ULTIMATE Maintenance Elastomers, e.g. O-rings, must be replaced depending on their degree of wear. Testing the FG clamping system Interval Test the FG clamping system at least once a month. Required accessories Chuck tester 65 56 067 D3560.201.09.03.02...
  • Page 47 This may cause injury! 1. Do not use the product. 2. Have the clamping system replaced by a workshop authorized by B.A. International. Tip: Record the time and result of the check for your own information. 65 56 067 D3560.201.09.03.02...

  • Page 48: Replacing The Halogen Lamp In The Handpiece

    8 Maintenance Operating Instructions BA ULTIMATE Replacing the halogen lamp in the handpiece For turbines with W&H or Bien-Air connection, the halogen lamp is located in the turbine handpiece. Turbine with W&H connection: CAUTION! The halogen lamp may be hot. This may cause burns! Allow the halogen lamp to cool down.
  • Page 49 Operating Instructions BA ULTIMATE 8 Maintenance 4. Lift the lamp holder (F) at the head end (E) and remove it. 5. Tap the defective halogen lamp (D) out of its base. 6. Insert the new halogen lamp. Ensure the proper position of the contact surface.
  • Page 50 8 Maintenance Operating Instructions BA ULTIMATE Turbine with Bien-Air connection: Highspeed handpiece _ neutral CAUTION! The halogen lamp may be hot. This may cause burns! Bien-Air T2 turbine Allow the halogen lamp to cool down. 1. Detach the turbine from the quick coupling. 2.
  • Page 51 Operating Instructions BA ULTIMATE 8 Maintenance 4. Lift the lamp holder (F) at the corner (E) with a fingernail and remove NOTICE! Take care that the contact pin (C) does not become bent or damaged at the coupling fitting. 5. Pull the defective halogen lamp (D) out of the socket. 6.
  • Page 52 Disposal To the best of our current knowledge, the product does not contain any substances which are hazardous to the environment.The product must be sterilized before disposal.Please observe the applicable national regulations regarding disposal.
