2.2.1 I2S/TDM Pinouts

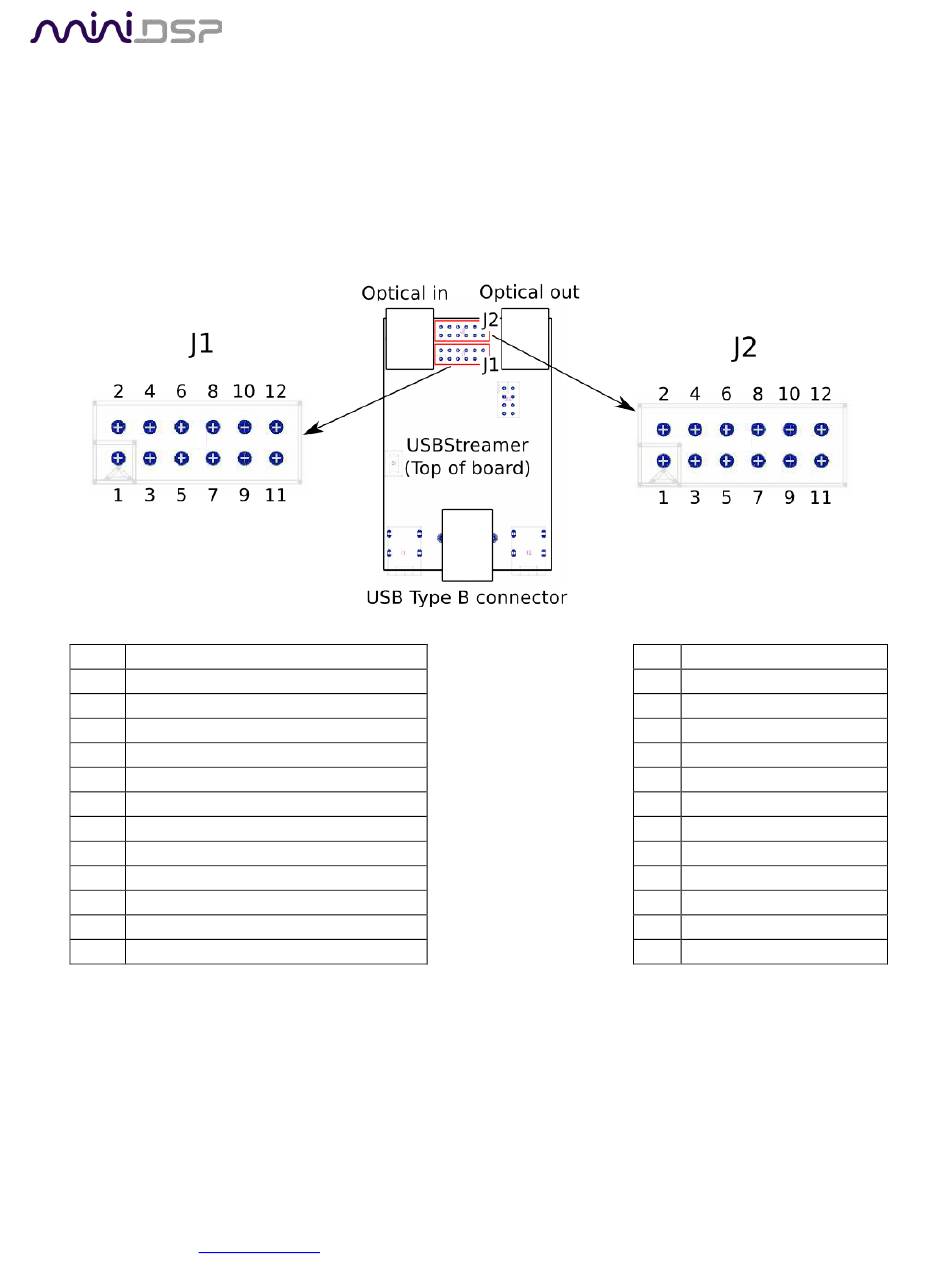

The USBStreamer circuit board has two 12-pin headers located between the optical ports. All I2S lines are on J1,
while J2 carries auxiliary signaling and GPIO lines reserved for future enhancement. The I2S lines are explained in
detail on the next page.
Note that all I2S lines are 3.3V logic levels. Connected circuits must use a compatible logic level.
Pin Description
1 I2S data OUT Ch 1&2 / TDM Out
2 I2S data IN Ch 1&2 / TDM In
3 I2S data OUT Ch 3&4
4 I2S data IN Ch 3&4
5 I2S data OUT Ch 5&6
6 I2S data IN Ch 5&6
7 I2S data OUT Ch 7&8
8 I2S data IN Ch 7&8
9 Master clock (MCLK OUT)
10 Bit clock out (BCLK)
11 Ground (GND)
12 I2S frame sync (LRCLK)
miniDSP Ltd, Hong Kong / www.minidsp.com / Features and specifications subject to change without prior notice
Pin Description
1 Ground (GND)
2 NC
3 Ground (GND)
4 NC
5 NC
6 GPIO (future)
7 GPIO (future)
8 RST (negative low)
9 GPIO (future)
10 GPIO (future)
11 Ground (GND)
12 5V external power
