Adat_I2S Firmware - miniDSP USBStreamer Box User Manual

4.2.2 ADAT_I2S firmware

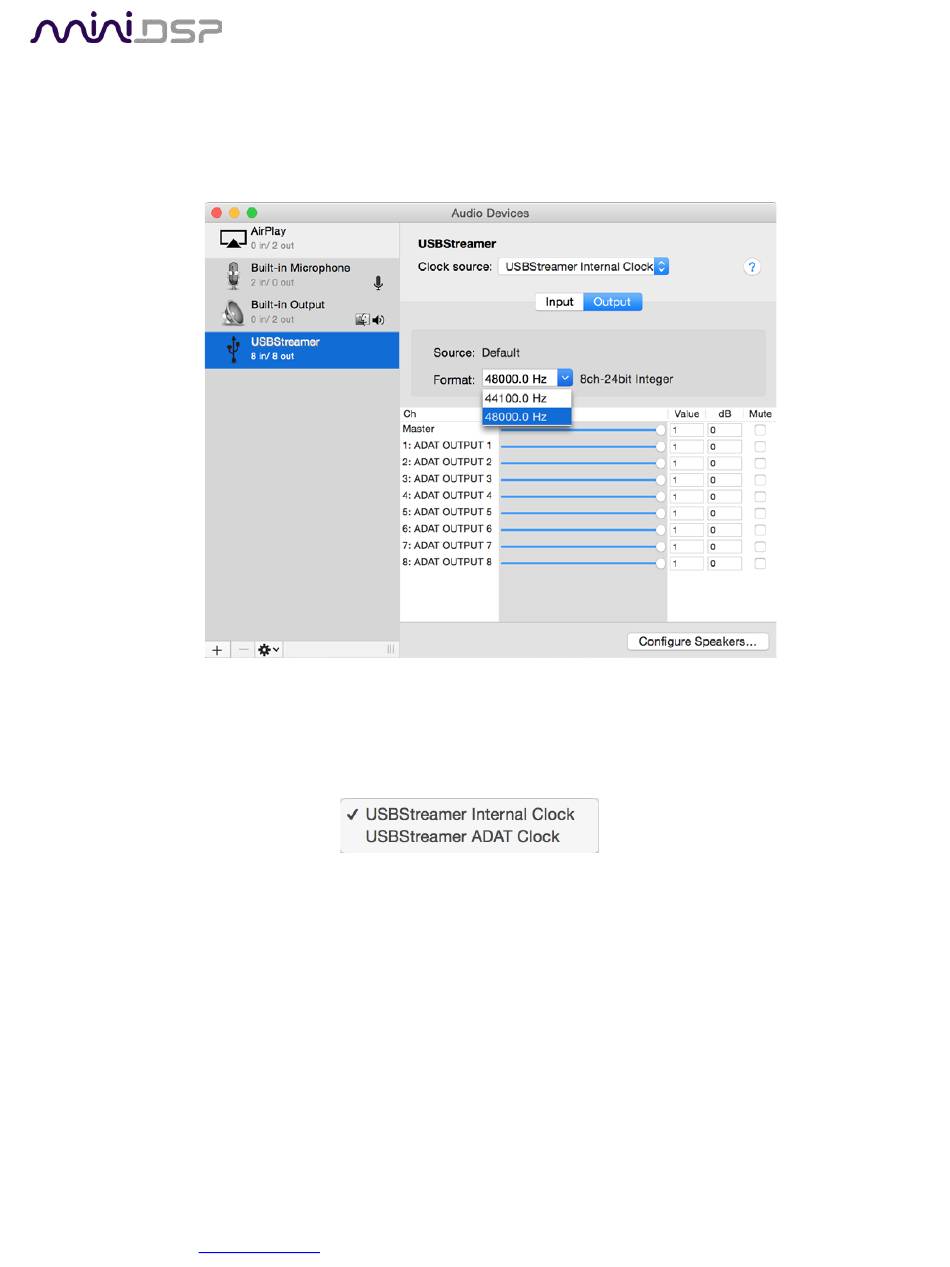

Open the program Audio MIDI Setup (in Applications->Utilities). Click on the device USBStreamer that appears in
the list of devices on the left, to show the eight ADAT output channels. As shown in this example, the sample rate
can be selected for 44.1 or 48 kHz:
Clicking on the Input button will likewise show the eight ADAT input channels.
By default, the sample rate clock is generated internally by the USBStreamer. It can be set to use the incoming ADAT
clock, by selecting the option from the Clock source dropdown:
23
