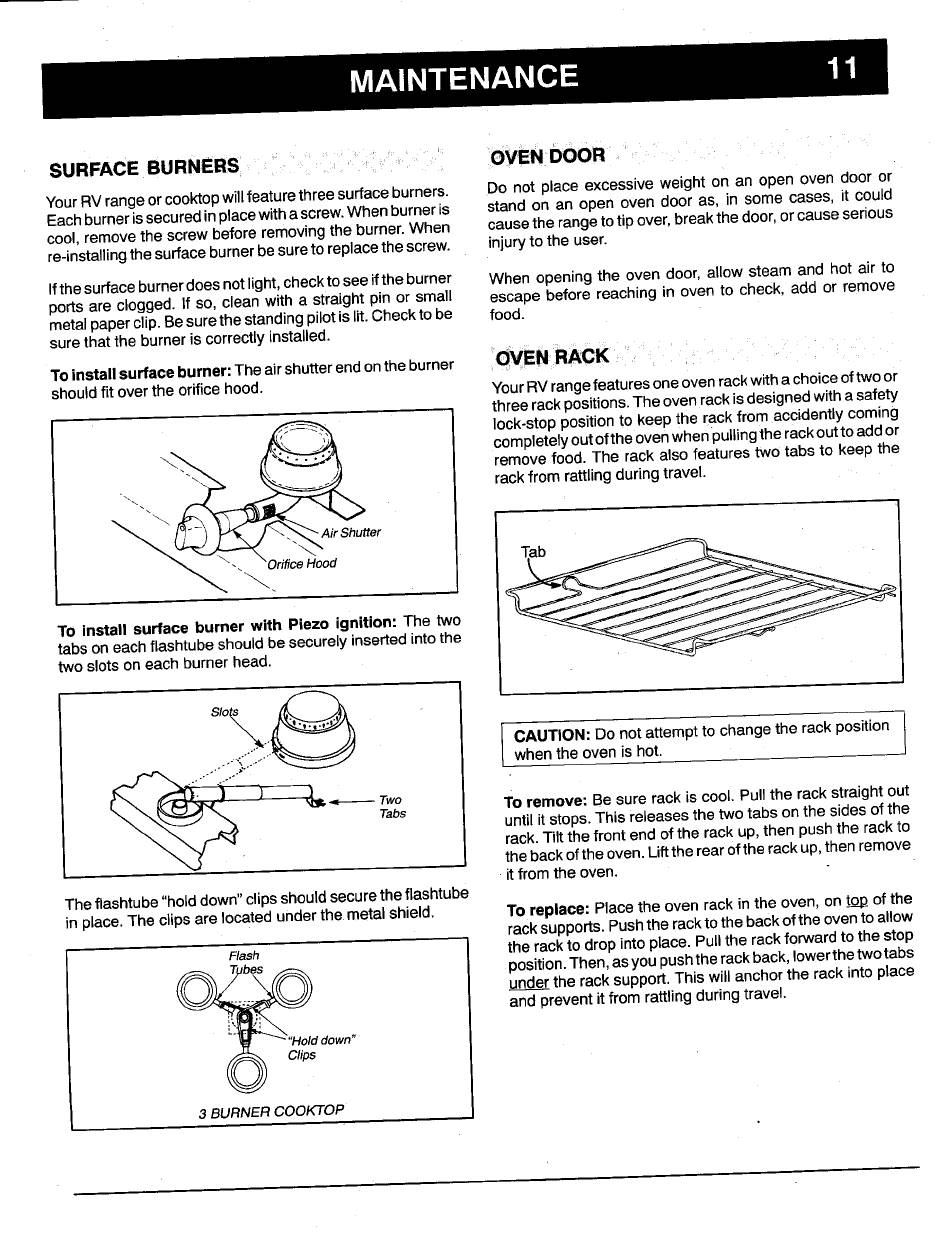

Magic Chef CLY1612BDH Manual page 12

MAINTENAN( :E 11
SURFACE BURNEBS = _ OVEN DOOR'
YourRV rangeorcooktop willfeature threesurfaceburners. Do not placeexcessiveweighton an open oven dooror
Eachburnerissecuredinplacewithascrew.Whenburneris standon an open oven door as, in somecases, it could
cool,removethe screwbeforeremoving the burner. W hen causethe rangetotipover,breakthe door,or causeserious
re-installing t he surfaceburnerbesureto replace thescrew, injury to the user.
Ifthesurfaceburner doesnotlight,checktoseeifthebumer When openingthe oven door, allowsteam and hot air to
portsare clogged,if so, cleanwitha straightpin or small escape beforereachingin ovento check, add or remove
metalpaperclip.Besurethe standing pilotislit.Checktobe food.
surethatthe burneris correctly installed.
RACK
CP4EN To installsurfaceburner:The airshutterendonthe burner
should fit overthe orificehood. YourRV rangefeaturesoneovenrackwitha choice oftwoor
threerackpositions. The ovenrackisdesignedwitha safety
lock-stoppositionto keepthe rack from accidentlycoming
completelyout ofthe oven when pullingthe rackout to add or
remove food. The rack also features two tabs to keep the
rack from rattling duringtravel.
To install surface burner with Piezo ignition: The two
tabsoneachflashtubeshouldbe securely insertedintothe
twoslotson eachburnerhead.
.__i_.._. CAUTION: Do not attemptto changethe rack position whenthe ovenishot.
,, Two To remove: Be sure rack is cool.Pull the rack straight out
Tabs until it stops. This releasesthe two tabs onthe sides of the
rack. Tilt the front end of the rack up, then push the rackto
the backof the oven. Liftthe rear ofthe rack up, then remove
it from the oven.
Theflashtube "holddown" clips shouldsecurethe flashtube
in place.The clips are located under the metal shield. To replace: Placethe oven rack in the oven, on top of the
racksupports,Pushthe rack to the backof the oven to allow
Flesh the rack to drop intoplace. Pull the rack forward to the stop
es_ position.Then,as you pushthe rackback, lower the twotabs
under the rack support.This will anchor the rack into place
,_ and prevent itfrom rattling during travel.
" down"
_ Clips
3 BURNER COOKTOP
