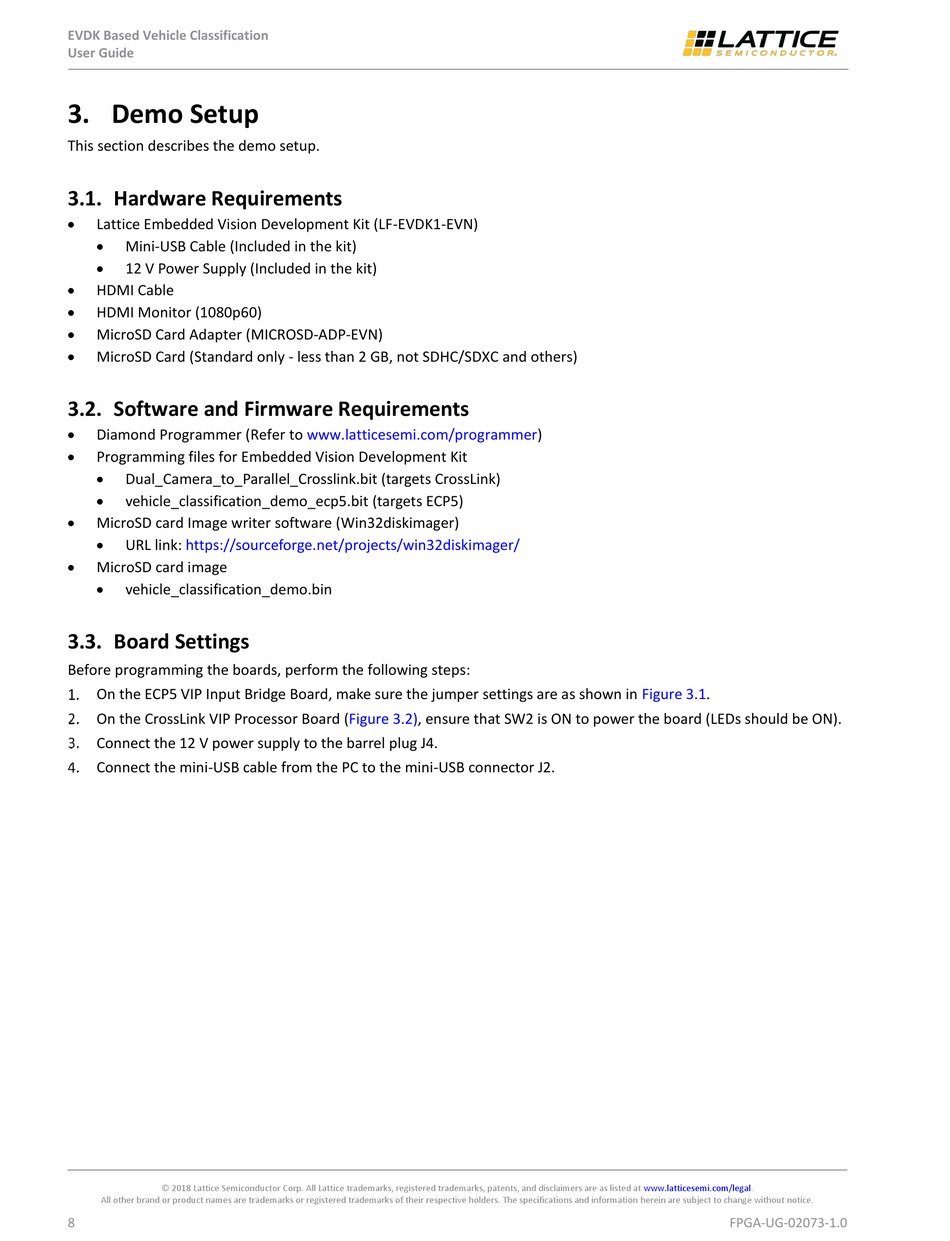

3. Demo Setup

This section describes the demo setup.

3.1. Hardware Requirements


Lattice Embedded Vision Development Kit (LF-EVDK1-EVN)

Mini-USB Cable (Included in the kit)

12 V Power Supply (Included in the kit)

HDMI Cable

HDMI Monitor (1080p60)

MicroSD Card Adapter (MICROSD-ADP-EVN)

MicroSD Card (Standard only - less than 2 GB, not SDHC/SDXC and others)

3.2. Software and Firmware Requirements


Diamond Programmer (Refer to www.latticesemi.com/programmer)

Programming files for Embedded Vision Development Kit

Dual_Camera_to_Parallel_Crosslink.bit (targets CrossLink)

vehicle_classification_demo_ecp5.bit (targets ECP5)

MicroSD card Image writer software (Win32diskimager)

URL link: https://sourceforge.net/projects/win32diskimager/

MicroSD card image

vehicle_classification_demo.bin

3.3. Board Settings

Before programming the boards, perform the following steps:
On the ECP5 VIP Input Bridge Board, make sure the jumper settings are as shown in
On the CrossLink VIP Processor Board
Connect the 12 V power supply to the barrel plug J4.
Connect the mini-USB cable from the PC to the mini-USB connector J2.
