5. Running the Demo

To run the demo:
Insert the configured MicroSD Card into the MicroSD Card Adapter, and connect it to the Embedded Vision
Development Kit.
Cycle the power on the Embedded Vision Development Kit to allow ECP5 and CrossLink to be reconfigured from
Flash.
Connect the Embedded Vision Development Kit to the HDMI monitor. The camera image should be displayed on
monitor.
Place image for classification in front of the camera. If a vehicle is detected, a bounding box is shown along with a
classification letter as follows:

Car -- Red box and L (Light)

Truck -- Green box and H (Heavy)

Motorbike or bicycle -- Blue box and T (Two-wheeler)
Some example outputs are shown below
Note: Since demo firmware/information is written to non-volatile Flash memory, it runs at power-up.
© 2018 Lattice Semiconductor Corp. All Lattice trademarks, registered trademarks, patents, and disclaimers are as listed at www.latticesemi.com/legal.
All other brand or product names are trademarks or registered trademarks of their respective holders. The specifications and information herein are subject to change without notice.
FPGA-UG-02073-1.0
(Figure 5.1, Figure 5.3, and

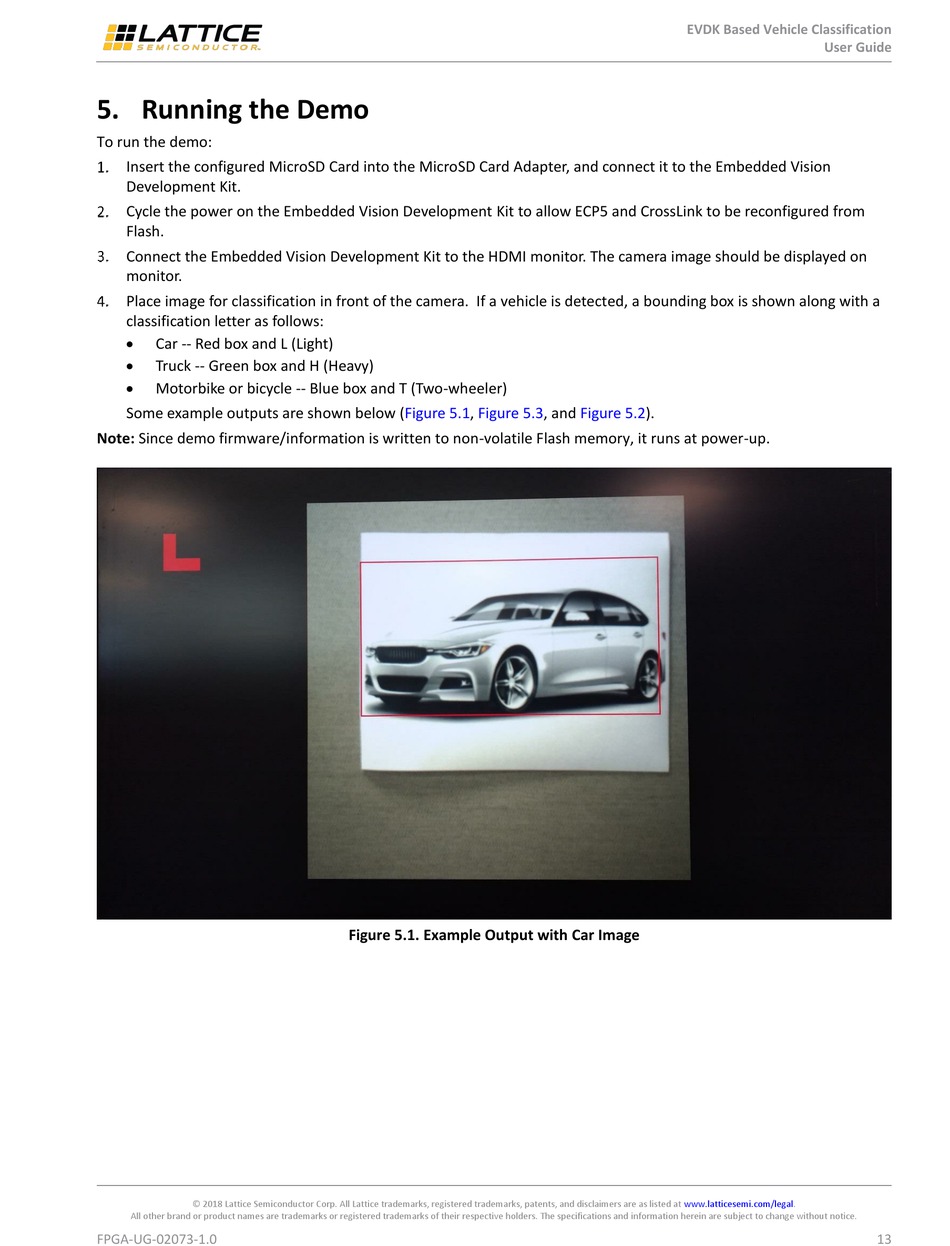

Figure 5.1. Example Output with Car Image
