- Page 1 Operating � instructions � move as you like � � � � www.deasystem.com...
-
Page 2: Product Conformity
Electrical Connections Product Disposal Product Conformity LOOK bears the CE label. DEA System guarantees the conformity of the product to European Directives 2006/42/CE regarding “ma- chinery safety”, 2004/108/CE “electromagnetic compatibility” and 2006/95/CE “low voltage electrical equipment”. See Declaration of Incorporation. -
Page 3: Product Description

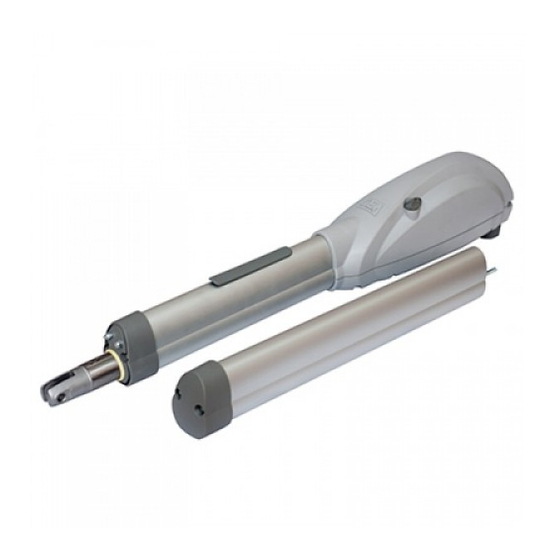

LOOK identifies a family of operators with different characteristics as regards the supply voltage, the reversibility and the presence of the encoder. LOOK is designed for installation in residential swing gates, is composed primarily of a mechanical gear motor that drives the lead screw fastened to the front attachment by means of the adjustment screw. -
Page 4: Electrical Connections
WARNING Maintain the ground conductor at a major length respect the active conductors so that, if the cable exit from its fixing housing, the active conductors tighten up as first. WARNING Respect the Phase-Neutral polarity of the tension as explained by the instructions manual of the control panels of LOOK. -
Page 5: Installation Test
Installation test The testing operation is essential in order to verify the correct installation of the system. DEA System wants to summarize the proper testing of all the automation in 4 easy steps: •... -
Page 6: Product Disposal
8 PRODUCT DISPOSAL LOOK consists of materials of various types, some of which can be recycled (electrical cables, plastic, aluminum, etc. ..) while others must be disposed of (electronic boards and components). Proceed as follows: 1. Disconnect the power supply;... - Page 7 LOOK typical installation System provides the following instructions which are valid for a typical system but obviously not complete for every system. For each automatism the installer must carefully evaluate the real conditions existing at the site. The installation requisites in terms of both performance and safety must be based upon such considerations, which will also form the basis for the risk analysis and the detailed design of the automatism.
- Page 8 ≤ 250 mm ≥ 500 mm ≥ 200 mm...
- Page 9 LOOK 800 kg WARNING Non self-locking models, with same leaf length, reduce gate weight by 30% from number seen in 600 kg 351/SC -351E�/SC "Length-weight'' chart. 352/SC - 353/$C - 354/SC 371/SC-371 _ SC-372jSC _ , -------- ____________ , 400 kg 355/SC -355E�/SC...
- Page 10 - Closing cycle - Opening cycle + Closing cycle + Opening cycle...
- Page 12 230V 4x1 mm² 3x1,5 mm²...
- Page 13 Article Code CS320 Rod cover stroke 320/520 mm 629340 CS520 629341 Extension for MAC and LOOK rams MAC-LOOK/P 629320 Adapter kit for doors in slope. Max gradient 8% LOOK/SB 629380 Anti-falling stainless steel cable with 2 holes for swing doors...
