Technical Specification

Operating ambient temperature:
Maximum relative humidity:
Environment:
Range of operating voltage:
Pollution degree:
Wire requirements:
Maximum torque for terminal lugs:
Handheld Batteries:
Battery types:
5ºC – 40ºC (41ºF – 104 ºF)
80% for temperatures up to 31ºC (88ºF)
decreasing linearly to 50% at 40ºC (104ºF)
Indoor use at altitude up to 2000 m (6561 feet)
108V – 132V
Pollution degree 2
4 Wires
4 – 5 feet length
60 / 75ºC
CU#14-8 / AL#10-8
25 lb-in
The Diagnostic Tool handheld device operates on
2 AA batteries. These batteries may be accessed
from the back side of the handheld device. See
Figure 4 below. For battery disposal, please follow
instructions of battery manufacturer.
Alkaline

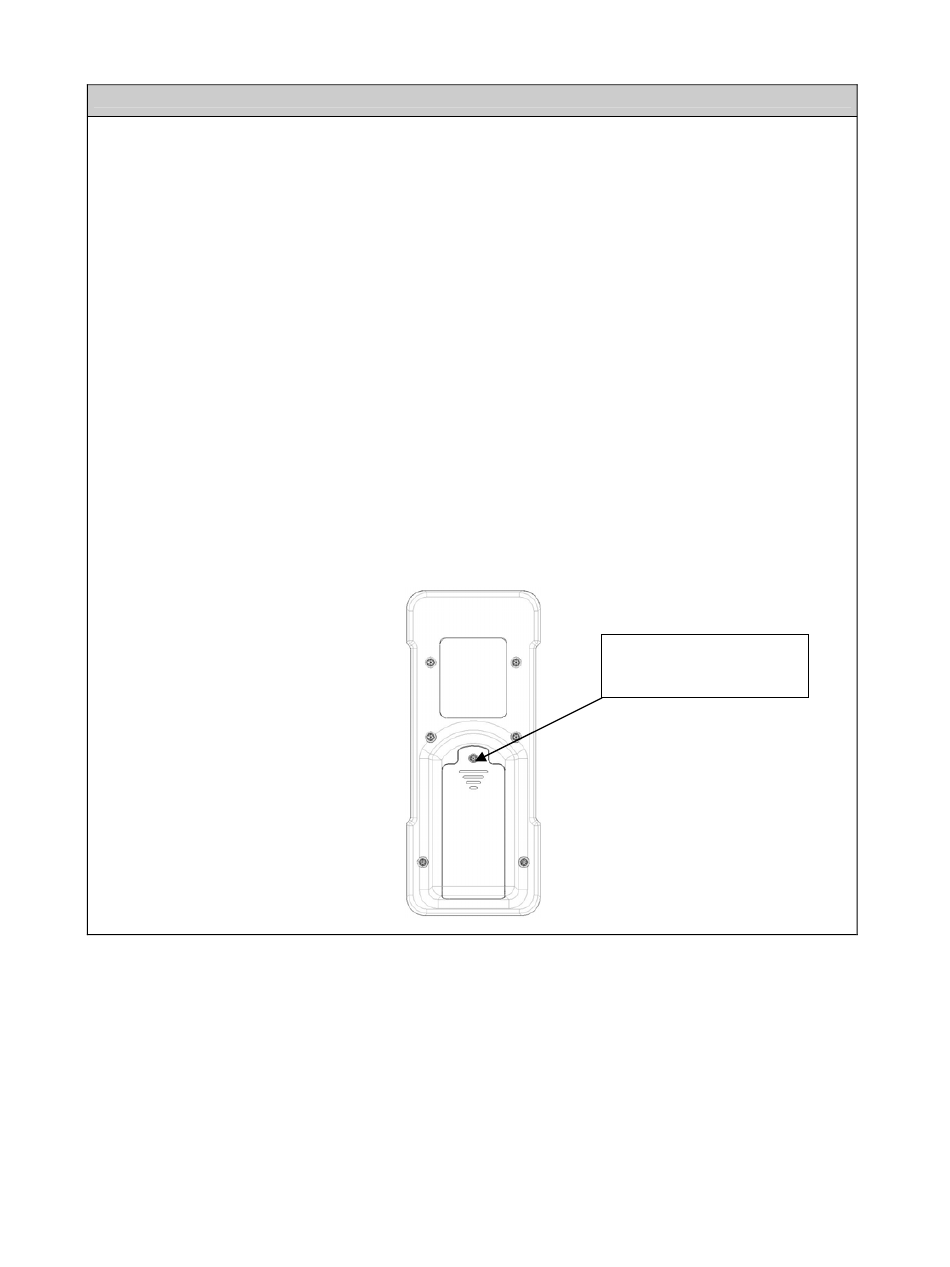

Figure 4
Battery Access
7
1)
Remove screw
2)
Lift plastic cover
