IS31AP2031 CLASS-K AUDIO POWER AMPLIFIER
EVALUATION BOARD GUIDE
PERFORMANCE DESCRIPTION
The IS31AP2031 evaluation board has four buttons to
switch between the different modes. The operating
mode is indicated by an LED illuminated above the
appropriate buttons. The modes listed as below:
1) Mode1: gain level 12dB AGC OFF.
2) Mode2: gain level 16dB AGC ON.
3) Mode3: gain level 24dB AGC OFF.
4) Mode4: gain level 27.5dB: AGC ON.
5) Shutdown mode: close Jumper (JP2) enter

shutdown mode.

Note: IS31AP2031 Audio Amplifier provides solely the Audio
function on the evaluation board.
U2
VCC
1
VDD VOUT
3
SD
C8
1uF 2
GND
LDO
TP1
CON1
VCC
DC IN
C1
10uF
TP2
27.5dB AGC ON K4
24dB AGC OFF K3
16dB AGC ON K2
12dB AGC OFF K1
Integrated Silicon Solution, Inc. – www.issi.com
Rev. C, 01/22/2017
3V
5
C9 C10
10nF 1uF C2
4 1uF
BP
TP3
CON2
AUDIO IN IN-
IN+
TP4
LED1
LED2
VCC RST
R10 R11 R12 R13
100K 100K 100K 100K

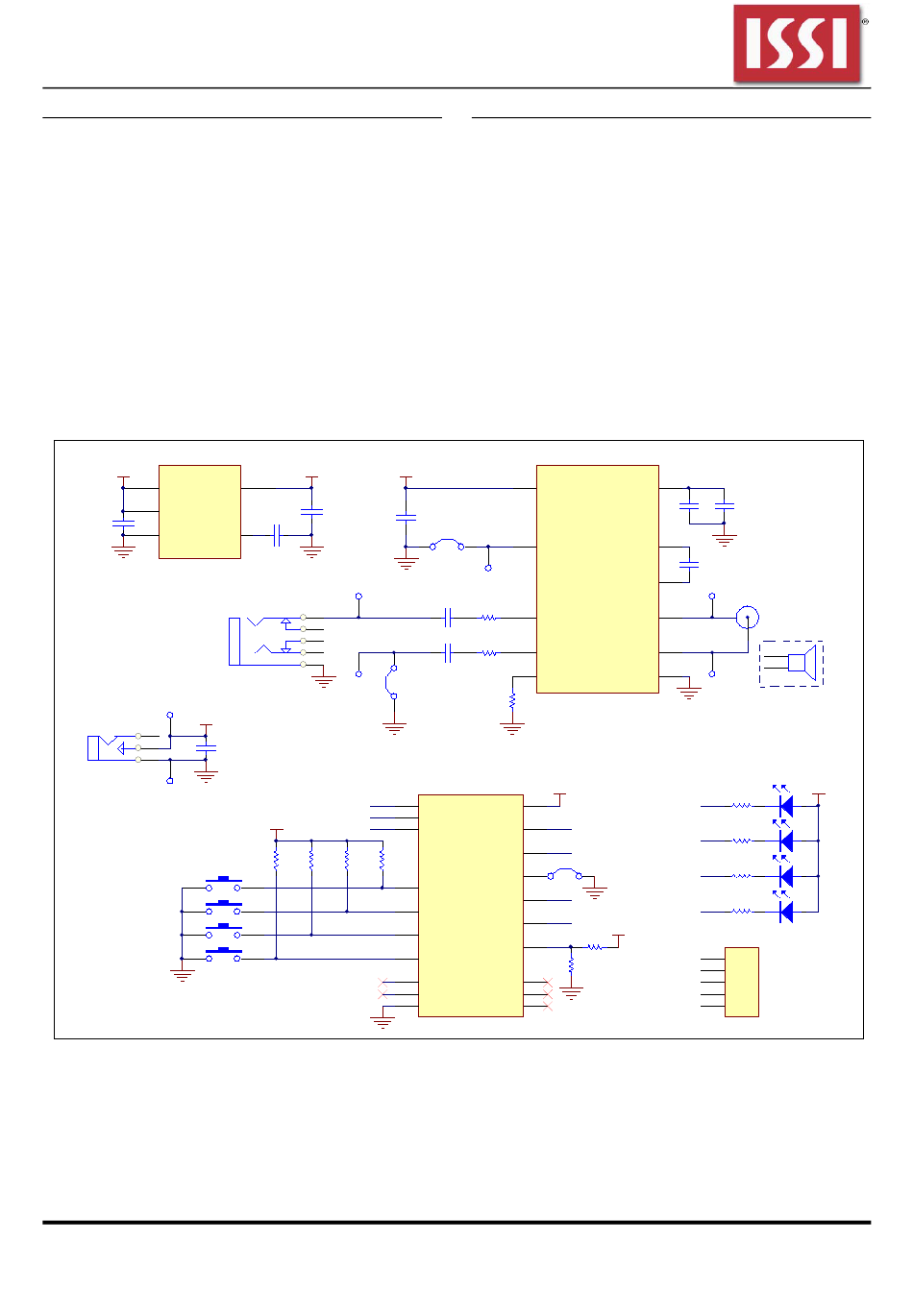

Figure 2: IS31AP2031 Application Schematic
SOFTWARE SUPPORT
Please refer to the integrated program.
Note: The Jumper JP3 is closed by default, if the JP3 is open,
the MCU will stop functioning, the SDB pin of the chip in a high
impedance state. The external MCU can be used to control the
board SD (TP7) point.
Please refer to the datasheet to get more information about
IS31AP2031.
