e 609 Silver

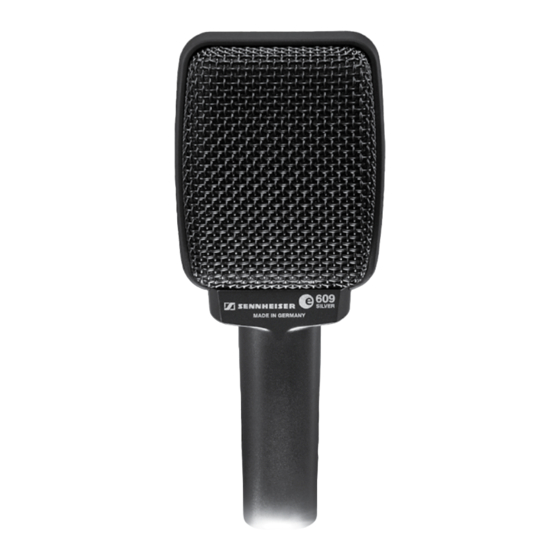

e 609 Silver Dynamic Microphone
The e 609 Silver is based on the legendary MD 409 microphone. Able to withstand high SPLs
SPLs without distorting, the e 609 Silvers large flat-profile capsule facilitates extremely close
miking of guitar cabinets and is also suitable for drum miking, particularly toms. The e 609
Silvers super-cardioid design improves isolation in live sound reinforcement and recording
applications while its increased output and wider frequency response improves performance.
Its sound inlet basket, made of refined steel, is distinguished by a unique silver address side.
Features—Benefits
• Metal construction—rugged and reliable
• Super-cardioid pick-up pattern provides isolation from other on-stage signals
• Hum compensating coil reduces electrical interference
• Neodynum ferrous magnet with boron keeps mic stable regardless of climate
• Falcon ring produces consistent sound over time

Technical Data

Pick-up pattern
Frequency response
Sensitivity
Nominal impedance
Min. terminating impedance
Dimensions in inches
Weight

Supplied Accessories

1 protective pouch
1 MZQ 100 microphone clip

Optional Accessories

21' XLR Microphone cable
super-cardioid
40 - 18,000 Hz
1.5 mV/Pa at 1 kHz, nominal
350 Ohms
1 k
2.17 x 1.34 x 5.28
6.43oz
MC21N
e 609 Silver
