Summary of Contents for Buchi K-424
-
Page 3: Table Of Contents
Replacing the O-rings Fuses Read these instructions thoroughly before you use the Customer service Digestion Unit K-424. Store these instructions in the im- mediate vicinity of the apparatus so that they may be consulted Taking out of operation at any time. -
Page 4: Scope Of Delivery
1 Scope of delivery Digestion Unit K-424 Scope of delivery Description Order No. Versions: K-424 standard 120 V 50 / 60 Hz 37963 K-424 standard 230 V 50 / 60 Hz 37962 Table 1: Versions Enclosed parts: 4 Digestion tubes... -
Page 5: Safety
Digestion Unit K-424 2 Safety Safety The apparatus has been built in accordance with state-of- the art technology and recognized safety regulations. Nonetheless risks and dangers can arise from the apparatus: • If the apparatus is operated by insufficiently trained personnel. -
Page 6: General Hazards
The wearing of personal safety equipment such as safety glasses, gloves and l l l l l aboratory coats is necessary. As a necessary part of the digestion unit K-424, this instruction manual must at all times be available to the operating personnel at the location where the apparatus is being used. - Page 7 Digestion Unit K-424 2 Safety It is to be assumed that a safe operation is not possible any more if the unit is visibly damaged, If the unit is not functioning any more after long storage under anfavourable conditions, after being transported under difficult conditions.
-
Page 8: Function

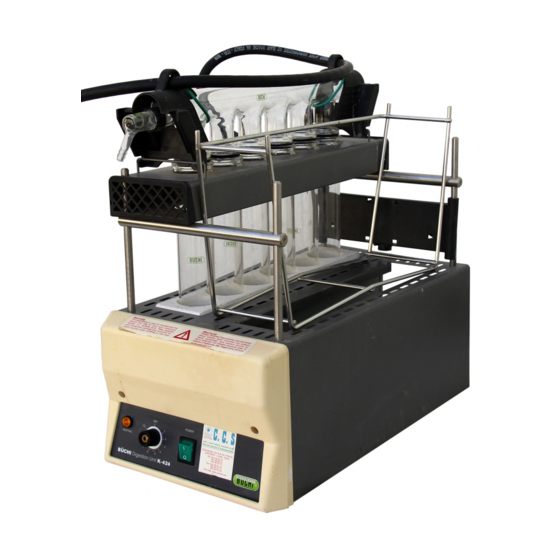

3 Function Digestion Unit K-424 Function The digestion unit K-424 is suitable for digestions involving concentrated boiling sulfuric acid at a temperature of approximately 370° C. 3.1 Principle of operation Sample tubes Heating Suction module Hose to water jet pump or to Scrubber B-414. -
Page 9: Putting Into Operation
(grounded) socket. This avoids risks due to an internal defect. Connection to the mains Before switching on the K-424 for the first time check that the voltage on the socket corrsponds to the voltage indicated on the apparatus identification plate. -
Page 10: Hose Connections
4 Putting into operation Digestion Unit K-424 Hose connections Mount the safety shield (A) with the fitted hoses on the unit (see photograph). Assemble the connection to the suction module (B) and install Scrubber E on the hose (C) and on the suction modules (D). -
Page 11: Operation
Digestion Unit K-424 5 Operation Operation Operating elements Main switch Energy regulator Heater pilot lamp Mains connector Fig. 5: Arrangement of the control and display elements front Operating elements and their function Main switch Switching the apparatus ON/OFF. In case of an mains load over 12 A a bimetal switch cuts the circuit causing the mains switch switching to OFF. - Page 12 5 Operation Digestion Unit K-424 This apparatus is used for procedures that require the use of heat and hazardous sulphuric acid. Wear goggles and protective clothing and exercises extreme caution when working in this area. Seal off unused connecting branches with the glass cap...
-
Page 13: Execution Of The Kjeldahl Disintegration
(item No. 17396) . Never install empty digestion tubes! • Place the suction module with the fitted gaskets on Fig. 10: Operation of the K-424 the digestion tube holder. • Turn on scrubber or water jet pump bevor any gases can develop. -
Page 14: Maintenance
Digestion Unit K-424 Maintenance General information The housing of the digestion unit K-424 ist made of metal and is coated with an acid-resistant material. In order to avoid damage to this synthetic coating, any drops of acid which might fall on it should be wiped off with a damp cloth. -
Page 15: Replacing The Insulation
Digestion Unit K-424 6 Maintenance Replacing the insulation To avoid contact with live parts, components may only be replaced when the apparatus has been isolated from all supply points. Electrical and electronic components are to be replaced by skilled engineers. -
Page 16: Fuses
6 Maintenance Digestion Unit K-424 Main fuses Please change the main fuses as follows: • Pull out mains cables • Pull out fuse holders • Replace the defective mains fuse by a new one with same performance - 230V: T 5A L250V... -
Page 17: Taking Out Of Operation
Digestion Unit K-424 7 Taking out of operation Taking out of operation In order to avoid the risk of endangering people with hazardous substances the unit must be emptied and cleaned thoroughly before taking out of operation. Storage/Transport The unit has to be stored and transported cleaned and its original packaging. -
Page 18: Replacement Parts
Digestion Unit K-424 8 Replacement parts Replacement parts Only original Büchi accessories and replacement parts guar- antee safe use and reliable operation of the apparatus. The use of other than Büchi replacement parts and accessories is only allowed with the permission of the manufacturer. Replace- ment parts may be used only for purposes of assembly and disassembly in connection with Chapter 6, Maintenance. -
Page 19: Appendix
Digestion Unit K-424 9 Appendix Appendix Technical data Dimensions (Width x Heigth x Depth) 275 x 600 x 570 mm Nominal voltage 230 V ± 10%, 50/60 Hz 120 V ± 10%, 50/60 Hz Connected load 1100 W Power consumption Weight (net) approx. -
Page 20: Fcc Requirements
9 Appendix Digestion Unit K-424 FCC requirements (for USA and Canada) English: This equipment has been tested and found to comply with the limits for a Class A digital device, pusuant to both Part 15 of the FCC Rules and the radio interference regulations of the Canadian Department of Communications. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. -
Page 21: Declaration Of Conformity
Digestion Unit K-424 9 Appendix Declaration of confomity... - Page 22 BÜCHI Labortechnik AG CH-9230 Flawil 1 / Switzerland T +41 71 394 63 63 F +41 71 394 65 65 www.buchi.com Quality in your hands...
