Summary of Contents for PondMAX EV700

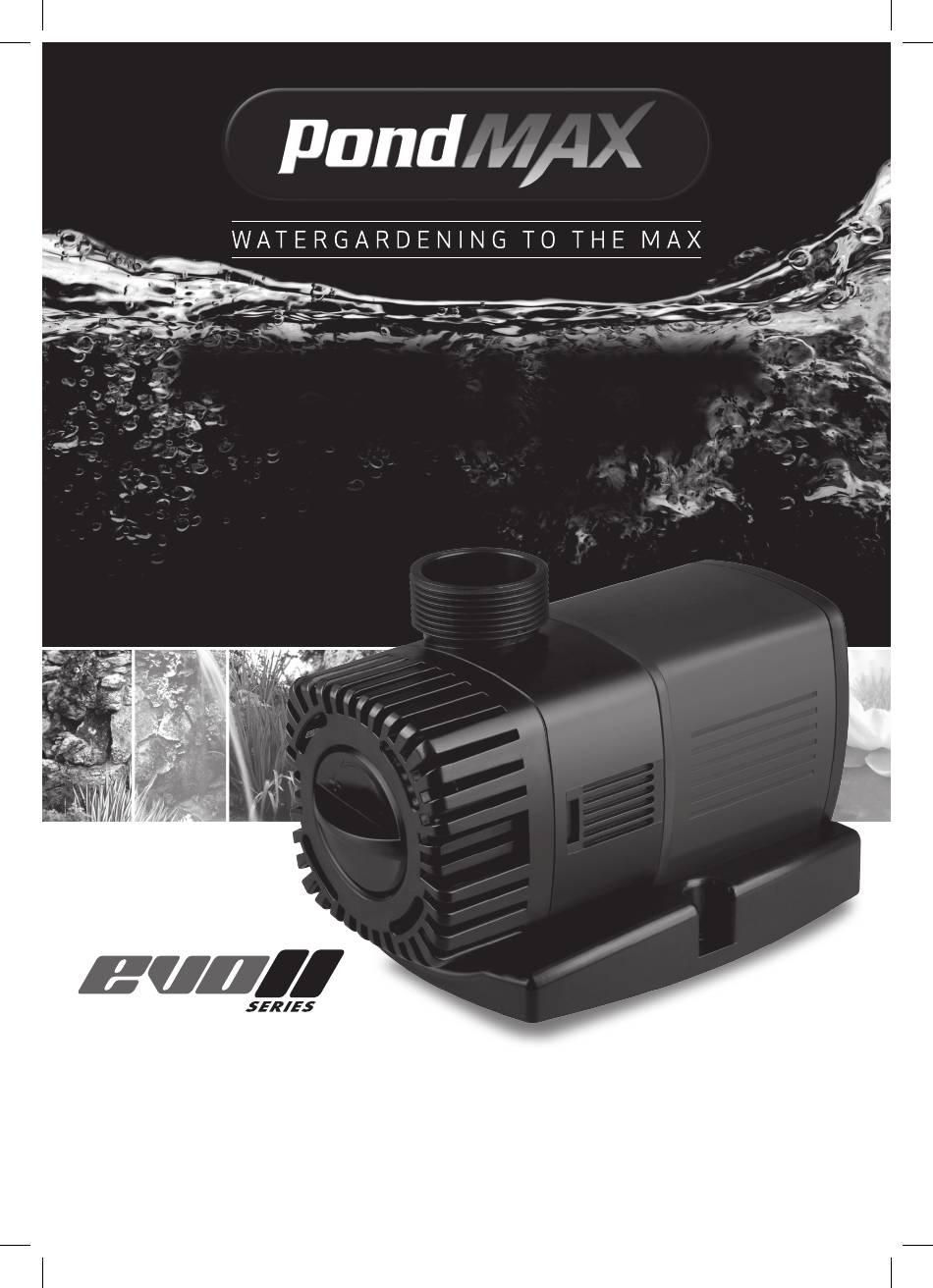

- Page 1 SKIMMER & WATER FEATURE PUMP INSTRUCTION MANUAL 888.868.1185 sales@pondmax.com FOR MODELS: 22EV125 - EV700 www.pondmax.com VERSION 22EV155 - EV900 JUNE 2016 22EV175 - EV1200 PMAX US EVOII 700_900_1200 Pump Instructions.indd 1 30/9/16 6:33 am...
-
Page 2: Technical Specifications
WELCOME TO THE WORLD OF PONDMAX™. YOU MADE THE RIGHT CHOICE INVESTING IN THIS QUALITY PRODUCT. THANK YOU AND ENJOY. BEFORE USING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS CAREFULLY AND BECOME FAMILIAR WITH THE UNIT. PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. -
Page 3: Design Highlights

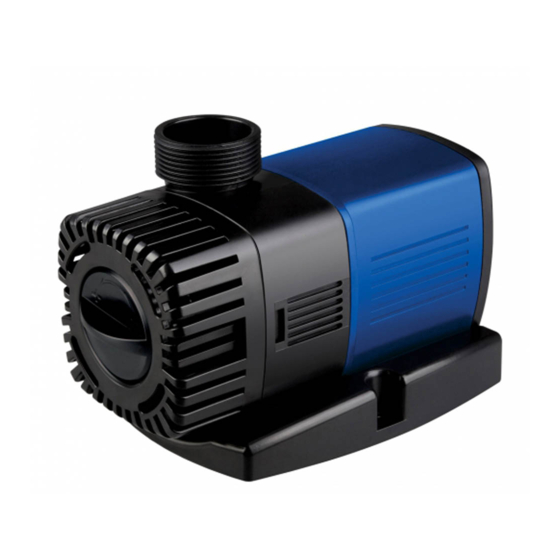

FEATURE PUMPS DESIGN HIGHLIGHTS The PondMAX EVOII Skimmer & Water Feature Pumps have been manufactured to provide you with the best quality pumps for your water feature. Visit our website to view our range of pond filtration, outdoor/underwater lighting, water treatments and general accessories. -
Page 4: Important Safeguards
• The PondMAX Skimmer & Water Feature Pumps are cooled by water flowing through the inside of the motor body. If the pump flow becomes restricted it will overheat and could cause permanent damage. -
Page 5: Installation
See your dealer for examples. For Pumps, from 250 GPH to 1200 GPH, there are a number of optional fountain kits readily available. PondMAX has three readily available. For various suggestions of the correct model and fountain type selection see the specification table on page (page 2). -
Page 6: Cleaning Instructions
Please clean regularly (at least once a month) to ensure strong water flow. Failure to maintain the unit could result in a burnt out motor and other damage. • All PondMAX Skimmer & Water Feature Pumps are • Maintain the filter sponge regularly according to how water cooled. -
Page 7: Important Notes
SKIMMER & WATER FEATURE PUMPS Turn the Front Filter Screen in the direction as indicated by the arrow, then pull away from Pump Motor Body. Locate snap-fit release under Base Plate using the arrows above. Using your thumb, apply pressure and unclip Base Plate until it releases from Pump Motor Body. -
Page 8: Exploded View
IMPORTANT These accessories and attachments are recommended for use with your PondMAX product specified in this manual. The use of any other accessories or attachments might present a risk of injury to persons. Only use the accessory or attachment for its stated purpose. -
Page 9: Spare Parts
EV1200 Front Filter Screen - for Sponge 31EV130 Sponge Flow Control Knob - [EV700 - EV1200 Only] 31EV127 Front Filter Screen - With Hole for Flow Control - [EV700 - EV1200 Only] Blanking Cap for Hole in Front Filter Screen... -
Page 10: Troubleshooting
TROUBLESHOOTING Problem Reason Solution Check that the plug is connected and No Power power point turned on. Filter Screen or Sponge is blocked with Clean the Filter Screen or Sponge. sludge. WATER PUMP Impeller is blocked with sludge or lime Clean the Impeller as per the instructions. -
Page 11: Limited Warranty
Please consult your retailer for quality original PondMAX replacement parts. Visit www.pondmax.com for your nearest dealer. 888.868.1185 sales@pondmax.com... - Page 12 888.868.1185 sales@pondmax.com PMAX US EVOII 700_900_1200 Pump Instructions.indd 12 30/9/16 6:33 am...
