Summary of Contents for PondMAX PA Series

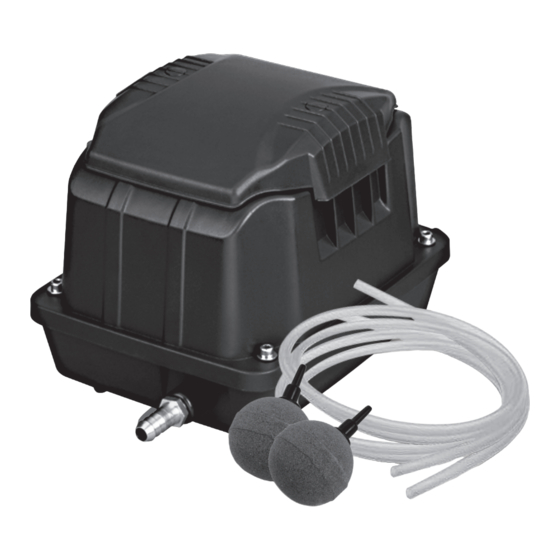

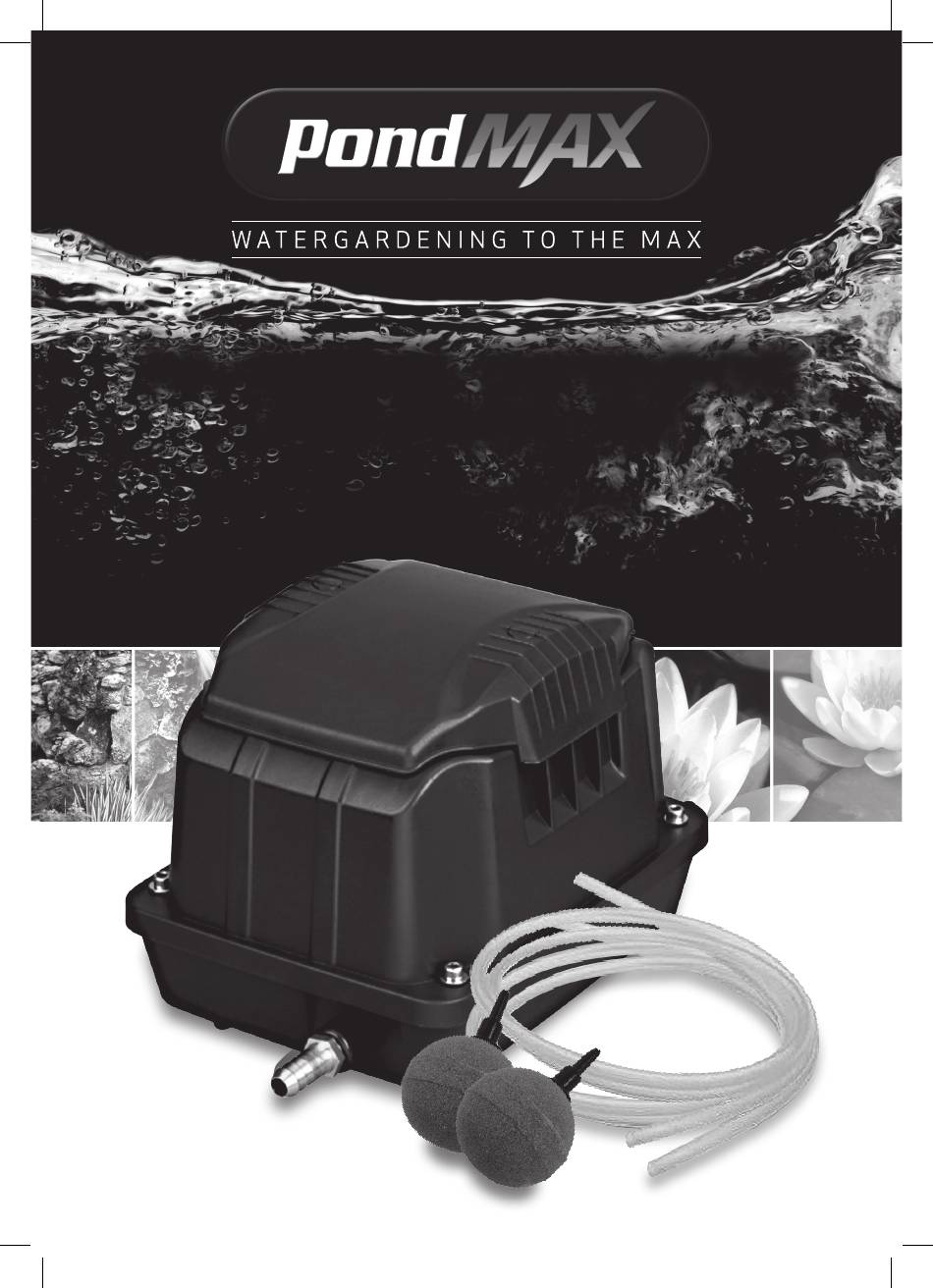

- Page 1 PA-SERIES OUTDOOR AERATION KIT INSTRUCTION MANUAL MODEL VERSION PA10 JUN 2017 PA20 PMAX Aeration Pumps PA10_PA20 Instructions.indd 1 26/6/17 1:32 pm...
-
Page 2: Technical Specifications
WELCOME TO THE WORLD OF PONDMAX™. YOU MADE THE RIGHT CHOICE INVESTING IN THIS QUALITY PRODUCT. THANK YOU AND ENJOY. BEFORE USING THIS PRODUCT, PLEASE READ THESE INSTRUCTIONS CAREFULLY AND FAMILIARIZE YOURSELF WITH THE UNIT. PLEASE KEEP THESE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. -
Page 3: Design Highlights
BENEFITS INCLUDE The PondMAX Aeration Kits have been manufactured with advanced technology to provide you with the best quality aeration for your pond or water feature. Visit our website to view our range of pond filtration, outdoor/underwater lighting, water treatments and general accessories. -
Page 4: Installation And Maintenance
• Every air pump may eventually “wander” or “creep” due to its own vibration. Avoid this by placing it on an • The PondMAX PA air pumps are designed to operate at entirely level and flat plane. We recommend securing a maximum depth of 4Ft / 1.2m of water. - Page 5 OUTDOOR AERATION PUMPS CLEANING AIR FILTER PAD WARNING: Make sure to unplug power prior to performing maintenance on the air pump or any of its accessories. We recommend general maintenance of the unit every 3 months (more or less depending on circumstance).
- Page 6 NOTE: If you are replacing the rubber membranes only, please proceed with the following steps! 7. Start by disassembling the diaphragm assemblies. Remove the air chambers (1) from the membrane frames. 8. Now loosen the Phillips screws (2) (positioned in center of rubber membrane), on either end of magnet assembly.
-
Page 7: Parts Breakdown
REPLACEMENT AIR LINE CHECK VALVE, 2 PACK 31PA410 28PA094 03PA307 PONDMAX AIR STONE 2" SPHERE W A T E R G A R D E N I N G T O T H E M A X PMAX Aeration Pumps PA10_PA20 Instructions.indd 7 26/6/17 1:32 pm... -
Page 8: Troubleshooting
TROUBLESHOOTING PROBLEM REASON SOLUTION Check that the plug on power cable is No Power connected to power and confirm that power point is working. Bad Motor Replace the air pump (if applicable). PUMP NOT WORKING Inspect the entire length of the air pump cable and look for cuts or damage Damaged Cable resulting in exposed copper wire. -
Page 9: Warranty
Unauthorized repairs any provision shall be deemed invalid, the remaining will not be compensated by PondMAX™, and are not the provisions shall remain in full force and effect. responsibility of PondMAX™, and if such repairs damage •... - Page 10 PONDMAX USA OFFICE P.O. Box 341 San Leandro, CA 94577 Toll Free 888.868.1185 sales@pondmax.com www.pondmax.com AUSTRALIA HEAD OFFICE 37 Edison Circuit Forrestdale, WA 6112 HOTLINE 1300 278 283 sales@aquatecequipment.com www.aquatecequipment.com PMAX Aeration Pumps PA10_PA20 Instructions.indd 10 26/6/17 1:32 pm...
