6.7.

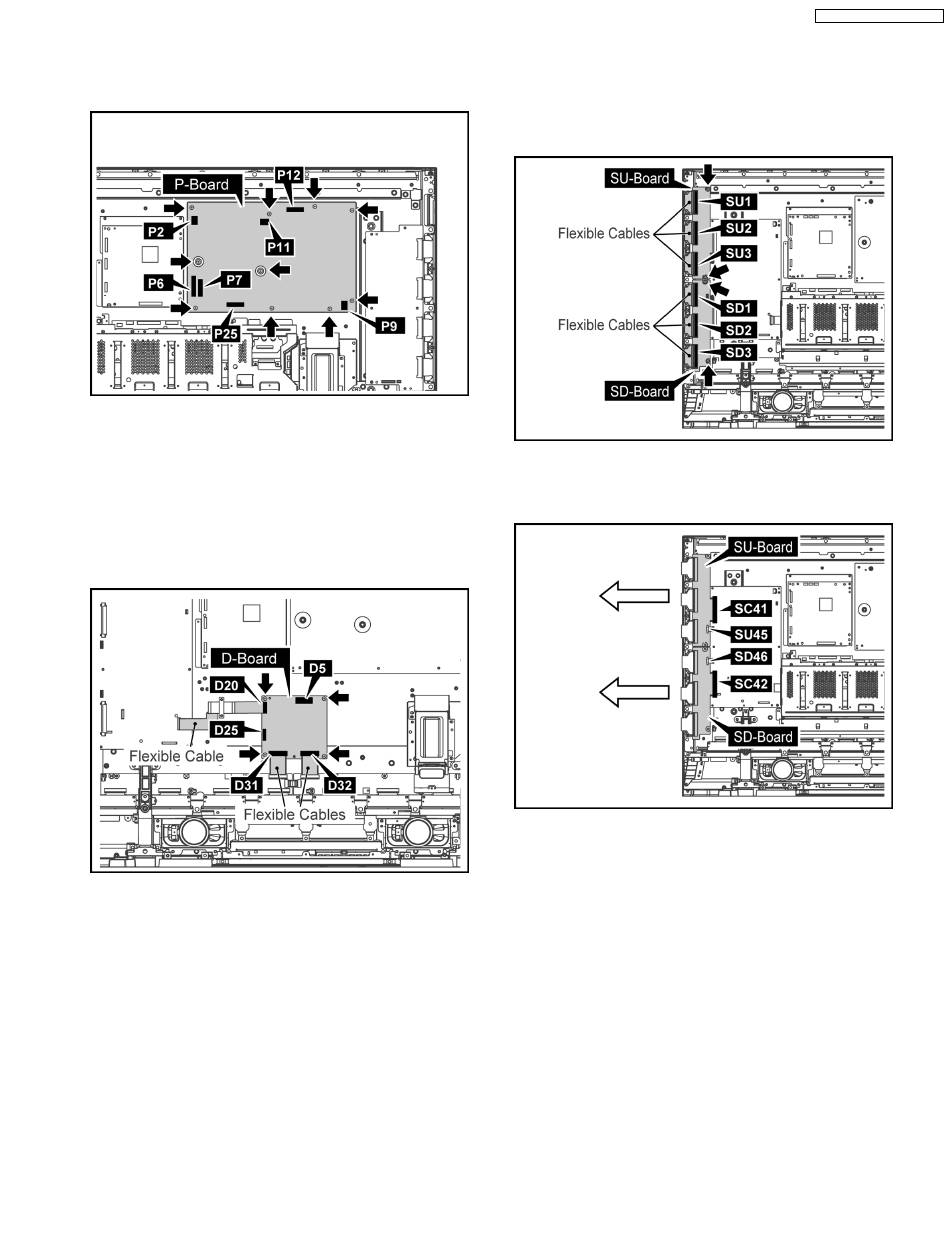

Removal of P-Board

1. Disconnect the connectors(P2, P6, P7, P9, P11, P12, P25)
2. Remove 10 screws and then remove P-Board.
6.8.

Removal of D-Board

1. Remove the Slot Block.
(Refer to Removal of Slot Block)
2. Disconnect the connectors(D5, D25)
3. Remove the Flexible Cables from the connectors (D20,
D31, D32).
4. Remove 4 screws and then remove D-Board.
6.9. Removal of SU-Board and SD-
Board
1. Remove the Flexible Cables from the connectors(SU1,
SU2, SU3, SD1, SD2, SD3).
2. Remove 4 screws.
3. Disconnect the connectors(SU45, SD46).
4. Slide SU-Board and SD-Board to the left, remove SU-Board
and SD-Board from the connectors(SC41, SC42).
11
TH-37PR10U / TH-42PR10U
