3.3.2 Connecting Compressed Air

Connect a clean, ozone-free, vapor-free and liquid water-free compressed air line to the
compressed air inlet ball valve located on the left side of the control panel.
See the minimum compressed air inlet line size requirement below. The
pressure of the compressed air to the system should be at least 85 psig but
not more than 125 psi (note that the system will run more efficiently at higher
air pressures). The inlet compressed air temperature should be less that 100°F. Note
that the (2) coalescing inlet compressed air filters on the NovaDrier each have an
internal condensate trap that is designed to remove small amounts of water droplets
from un-dried incoming compressed air but they are not designed to remove liquid
water. Make sure that hazardous vapors, like solvents or ozone, are not being
introduced into the compressed air system that is feeding the NovaDrier.

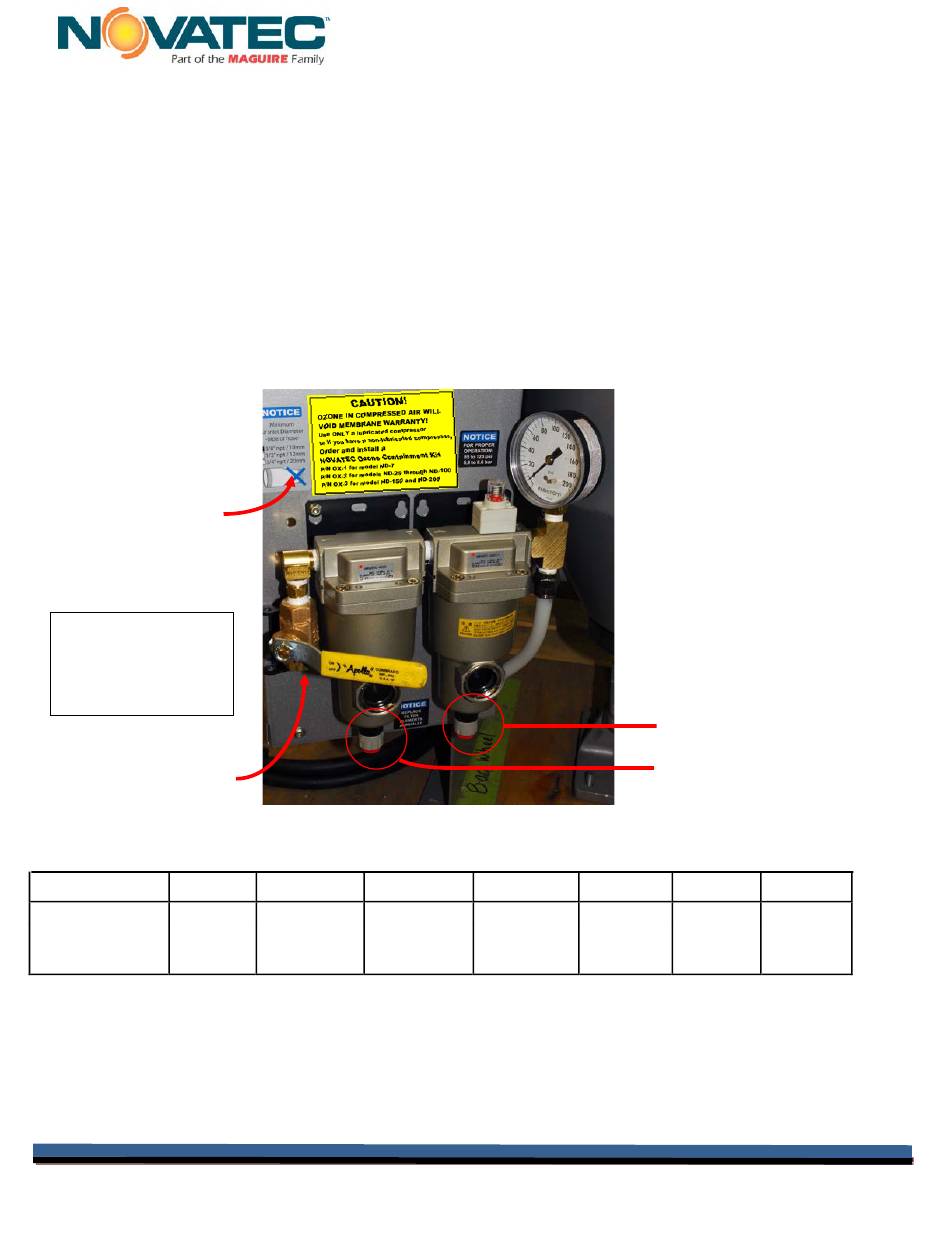

See chart below
for proper line
compressed air
line size for your
dryer model, or
the sticker on
dryer cabinet.
DO NOT USE
REDUCERS
THAT WILL
RESTRICT AIR
Connect air
LOWER of 85-
125 psig here.
IMPORTANT
MODEL ND-7
Minimum
compressed air 3/8" hose
line size or 10 mm

3.3.3 Condensate Drains

Connect the automatic compressed air condensate drains at the bottom of the
(2) compressed air filters on the side of the cabinet, so the condensate is
captured and disposed of properly. If the drains are not piped away, oily water
may spray down periodically from the automatic drains. Use a 1/8" npt male
fitting to connect into each drain.
Instruction Manual IM ND 3 JAN 2017
ND-25 ND-50
3/8" hose or 3/8" hose or
10 mm 10mm
Instruction Manual ND IM 3 JAN 2017
ND-75 ND-100
3/8" hose or 1/2" hose
10mm or 12 mm
Condensate drains:
Collect discharge or
attach drain lines.
ND-150 ND-200
3/4" hose 3/4" hose
or 20 mm or 20mm
