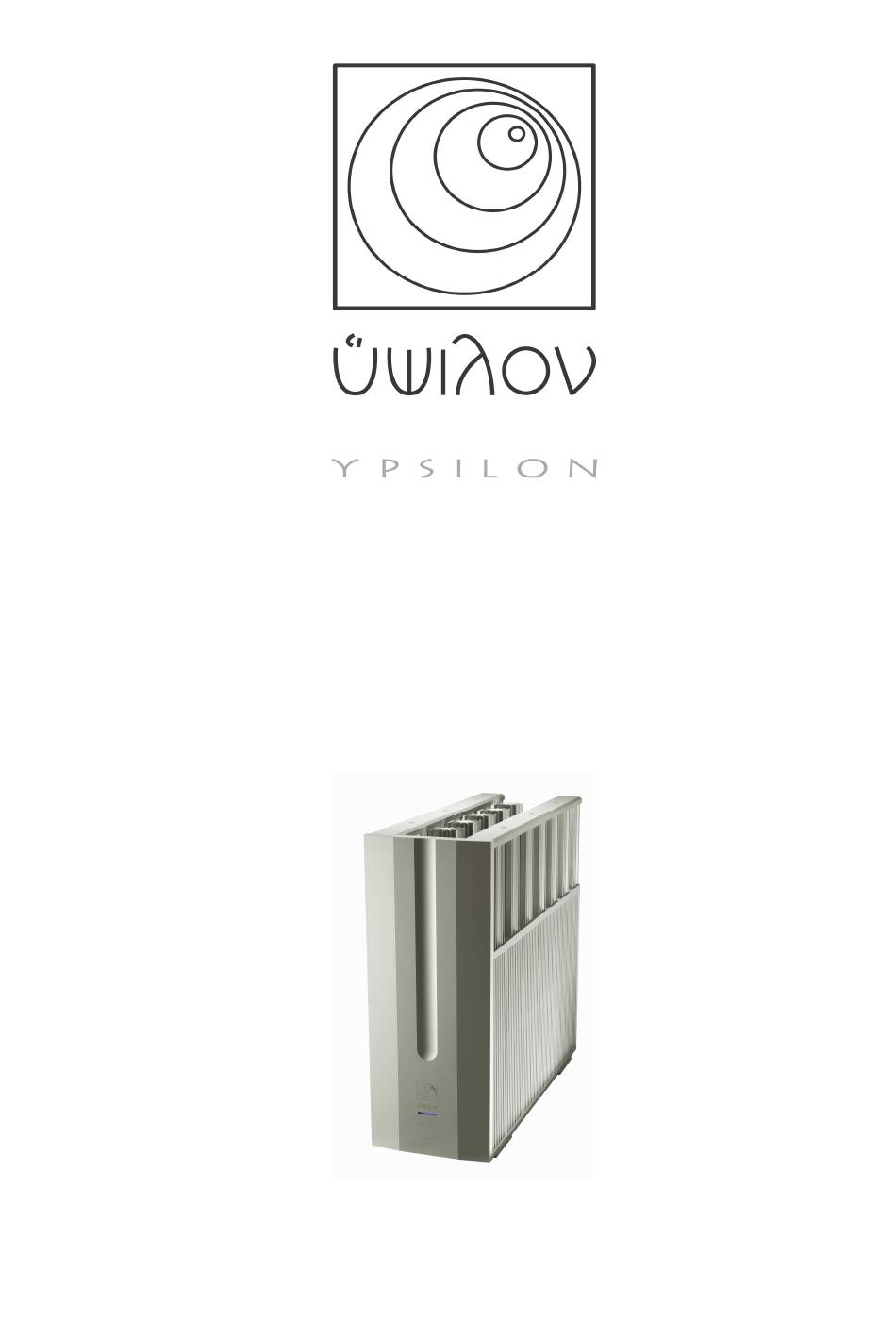

- Page 1 SET 100 YPSILON POWER AMPLIFIER MKIII OWNERS MANUAL V3 01/01/2010 ©All rights reserved...
- Page 2 INTRODUCTION Thank you for trusting YPSILON ELECTRONICS™. We assure you that you have made an excellent purchase. Your amplifier is made only by the best and most reliable materials and we guarantee it will offer you many hours of music enjoyment.
- Page 3 PLACEMENT OF THE SET-100 POWER AMPLIFIER SET-100 power amplifier is designed to reduce interference from external magnetic and radio fields. Although placement is not critical, any magnetic fields should be avoided. A solid and sturdy surface should be used as this amplifier has a substantial weight. Take great care if planning on moving or lifting it and make sure that the weight is not going to cause any injuries.
-
Page 4: Mains Electricity
TAKING CARE OF YOUR SET-100 When wanting to clean the SET-100 amplifier always disconnect from the mains electricity and use a clean, slightly damp cloth with no possibility of color running. NEVER CLEAN AMPLIFIER CASING WHEN DEVICE IS CONNECTED TO MAINS ELECTRICITY. -
Page 5: Connecting To The Mains Outlet
CONNECTING TO THE MAINS OUTLET Your amplifier has a description of the appropriate operation voltage on its back panel. Please make sure not to overlook the specifications. In case you need to operate it in a region with no complying voltage, contact your dealer or the factory. The power cable that you will use must be at least 3 x 1.5 square mm and grounded to the mains outlet. - Page 6 CAUTION DO NOT ATTEMPT TO OPEN THIS DEVICE. IN CASE OF ONLY USE THE VOLTAGE MALFUNCTION CONTACT YOUR DEALER OR THE PRINTED ON REAR PANEL MANUFACTURER WARNING: Before any maintenance or placement /connection takes place disconnect the device from electrical outlets. DISCONNECT THE DEVICE WARNING: Never use electrical outlets without earth.
-
Page 7: Connectivity Inputs
CONNECTIVITY INPUTS SET-100 is equipped with two connection inputs. One is XLR and the other is RCA. Do not connect and give signal to both inputs at the same time. Only connect signal from pre-amplifier or home cinema processor. CONNECTIVITY OUTPUTS There are four pure copper &... -
Page 8: Ground/Lift Switch
GROUND/LIFT SWITCH When the switch located on the back panel is turned to the GROUND LIFT position the ground circuit is disconnected from chassis ground. This is used to eliminate ground loop in the system and hum in the speakers. When the switch is turned to the other position the circuit ground is connected to the chassis ground. -
Page 9: Break-In Period
BREAK IN PERIOD Every amplifier has had an initial break in time of approximately 100 hours before packing..Still we suggest another 120 to 150 hours of breaking in before reaching its optimum performance. DESCRIPTION The amp’s topology is single-ended. It is operating in pure class A. It’s input stage is valve and the output stage is with mos-fets. -
Page 10: Specifications
SPECIFICATIONS OUTPUT POWER BEFORE 120W rms @ 8 ohm CLIPPING 130W rms @ 5,6 ohm 100W rms @4 ohm BANDWIDTH 8Hz -80Khz -3db OUTPUT IMPEDANCE 0,5 ohm INPUT IMPEDANCE 50 Kohm GAIN X40 (32db) POWER CONSUMPTION 400W constantly DIMENSIONS 240x610x672 (W x H x D)mm WEIGHT 90 Kgr Specifications may change without notice.
