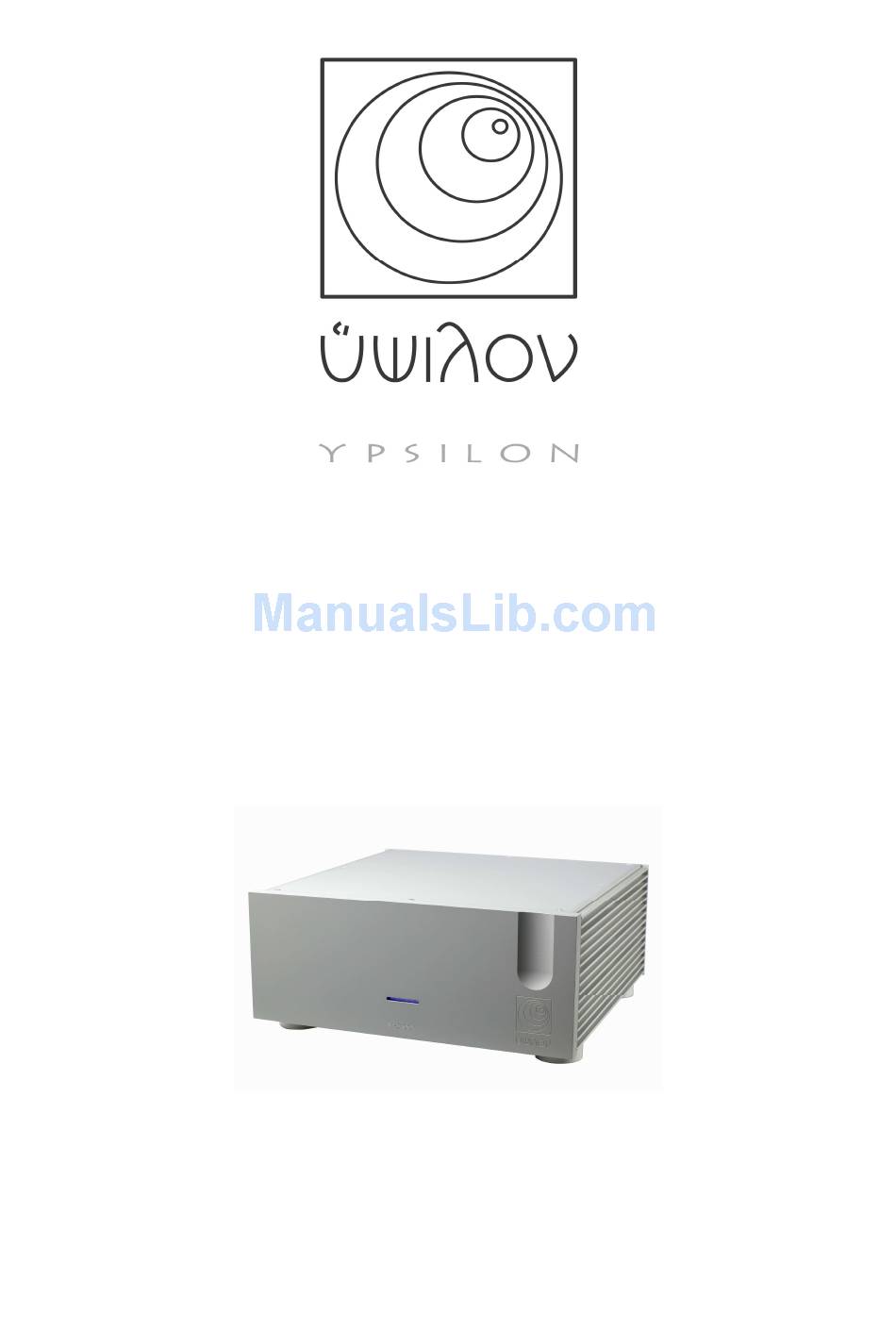

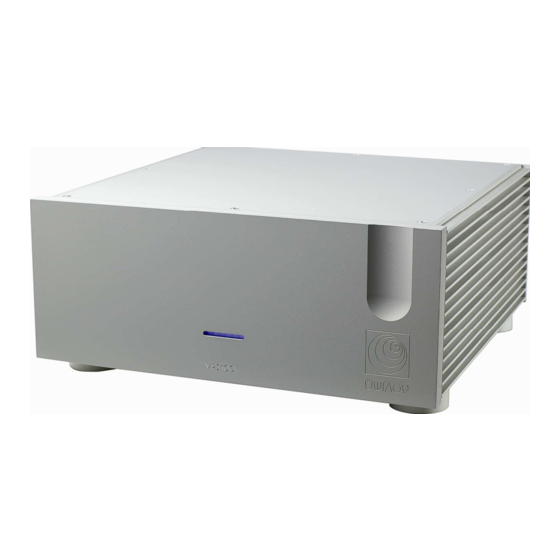

    VPS 100 YPSILON PHONO STAGE OWNERS MANUAL V1 01/01/2010 ©All rights reserved...
  • Page 2 INTRODUCTION Thank you for trusting YPSILON ELECTRONICS™. We assure you that you have made an excellent purchase. Your phono stage is made only by the best and most reliable materials and we guarantee it will offer you many hours of music enjoyment.

  • Page 3: Connecting Cables

    PLACEMENT OF THE VPS 100 PHONO STAGE VPS-100 phono stage is designed to reduce interference from external magnetic and radio fields. Although placement is not critical, any magnetic fields should be avoided. A solid and sturdy surface should be used as this phono stage has a substantial weight.

  • Page 4: Connecting To The Mains Outlet

    CONNECTING TO THE MAINS OUTLET Your phono stage has a description of the appropriate operation voltage on its back panel. Please make sure not to overlook the specifications. In case you need to operate it in a region with no complying voltage, contact your dealer or the factory. The power cable that you will use must be at least 3 x 1.5 square mm and grounded to the mains outlet.
  • Page 5 CAUTION DO NOT ATTEMPT TO OPEN THIS DEVICE. IN CASE OF ONLY USE THE VOLTAGE MALFUNCTION CONTACT YOUR DEALER OR THE PRINTED ON REAR PANEL MANUFACTURER WARNING: Before any maintenance or placement /connection takes place disconnect the device from electrical outlets. DISCONNECT THE DEVICE WARNING: Never use electrical outlets without earth Use only electrical outlets that are earthed.

  • Page 6: In Case Of Fault

    IN CASE OF FAULT In case of fault never open device. Return to authorized technical agent or manufacturer. In case of part changing only the exact same parts should ever be used and replaced by authorized staff or manufacturer. Otherwise this device is out of Guarantee and will not be compliant with international rules and regulations.
  • Page 7 CONNECTING OUTPUT CABLES There are two types of output connectors on the back panel of the VPS-100.One is a RCA connector and the other an XLR connector. Only connect to pre-amplifier. RCA OUTPUT XLR OUTPUT POWER SUPPLY The VPS-100 has a power transformer manufactured in house using special winding techniques and exotic core materials for low noise and pure, transparent sound.
  • Page 8 STEP-UP TRANSFORMER YPSILON ELECTRONICS provides step up transformers according to each customers needs ensuring this way the best compatibility between turntable, cartridge and phono stage. There are 3 models that cover the majority of cartridge ranges. These models are: MC 5 (high output 1mV with 14 db gain), MC10 (0,5 mV with 20 db gain), MC 20 (low output 0,3mV with 24 db gain).

  • Page 9: Specifications

    SPECIFICATIONS INPUT IMPEDANCE 47Kohm/200 pf OUTPUT IMPEDANCE 1200 Ohm OUTPUTS RCA unbalanced XLR unbalanced(pin1,3grounded) FREQUENCY RESPONSE -3db @ 10hz-40khz MAXIMUM OUTPUT VOLTAGE 5 V peak @ 1Khz 50V peak @ 50Hz RIAA ACCURACY +/- 0,5 db 20hz-20khz CHANNEL MIS MATCH <...
